Product no. M-1420

Container 11.000 liters made of V2A, used, isolated, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 11,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

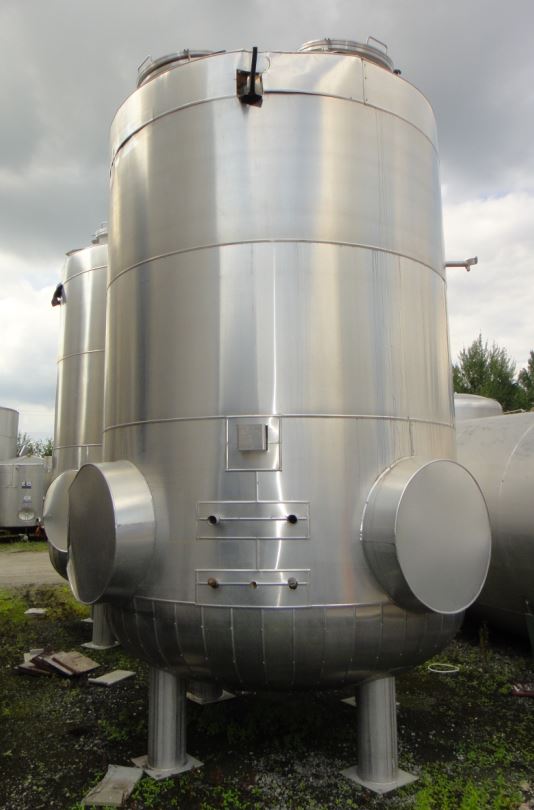

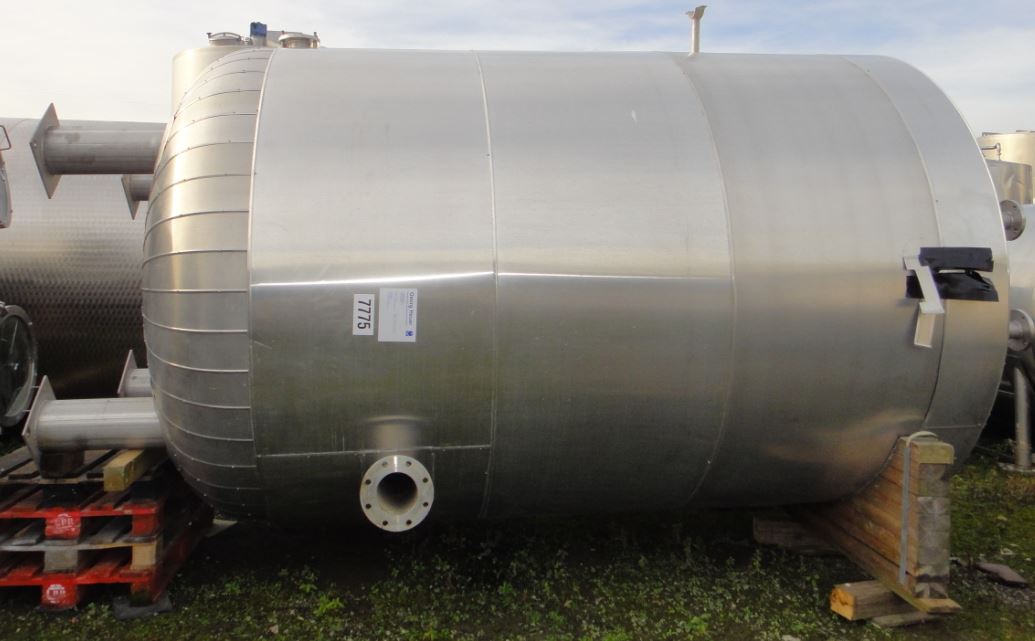

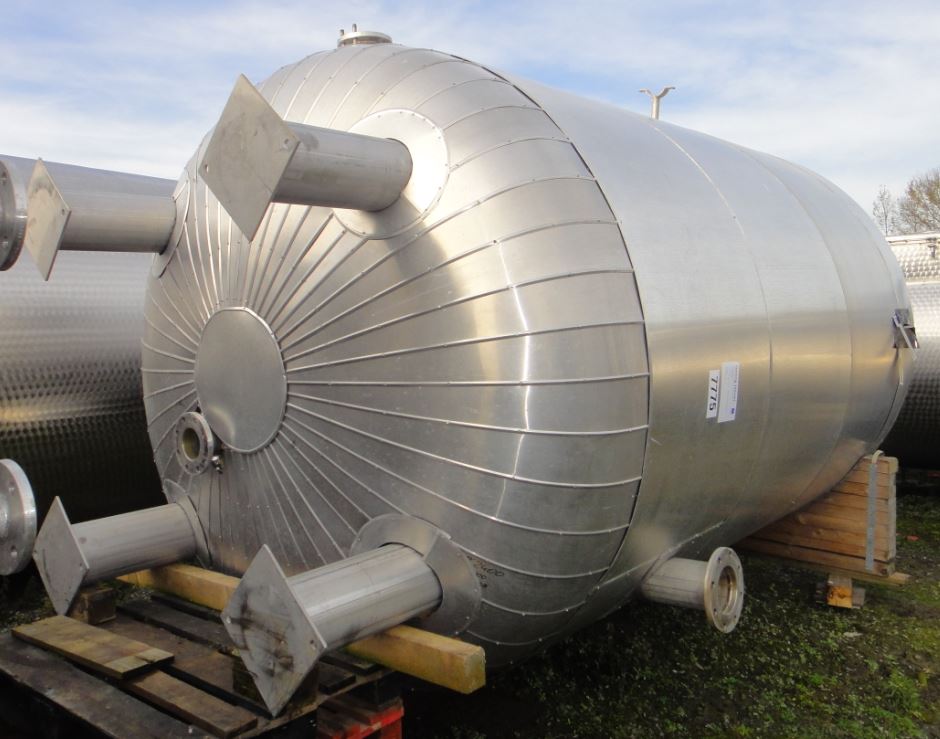

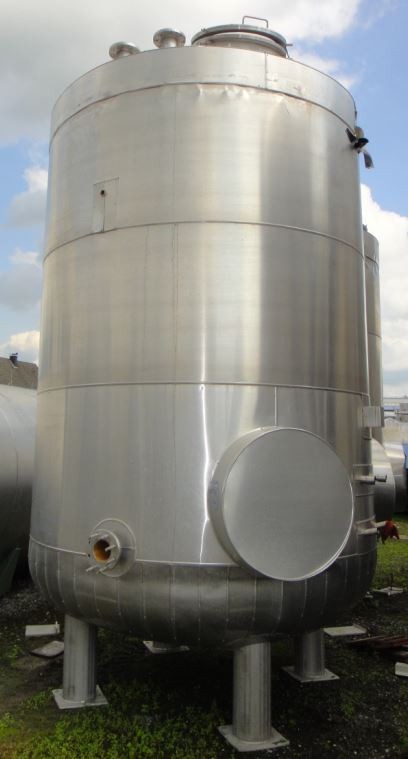

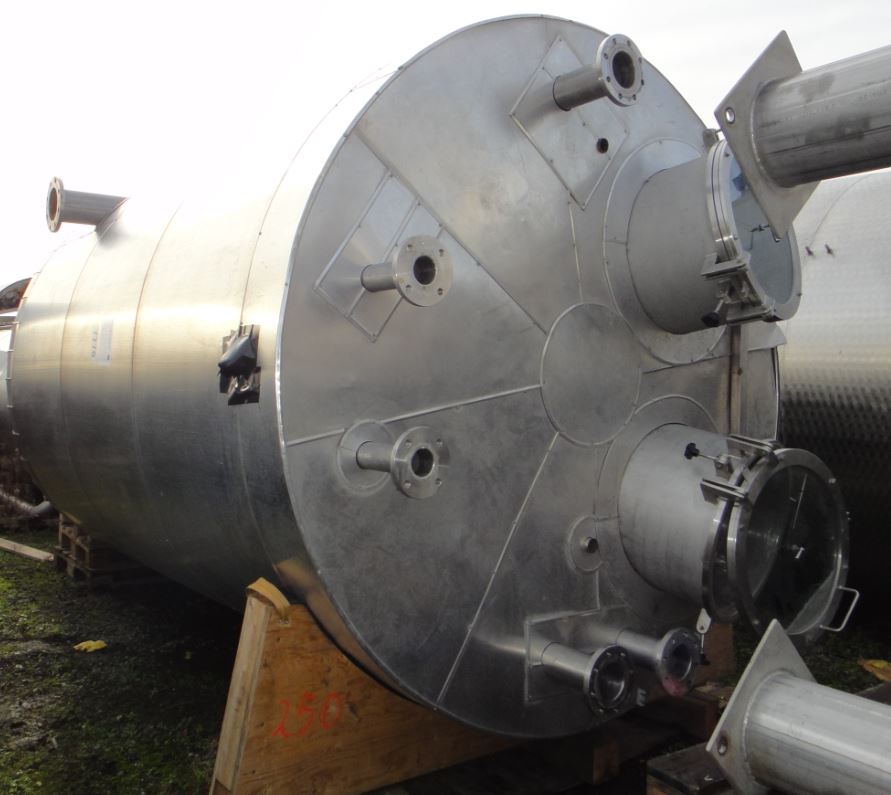

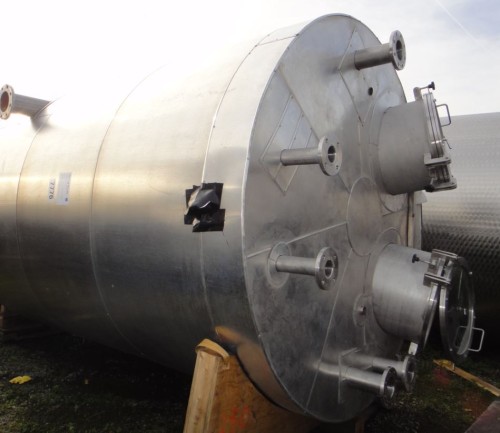

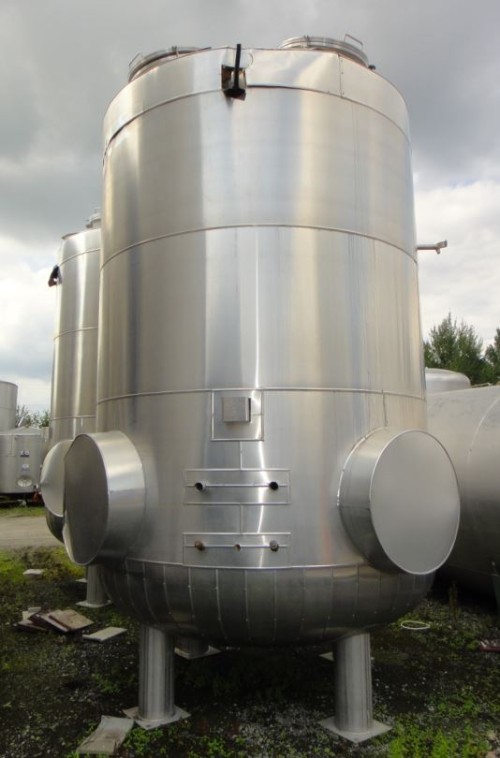

Container 11.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 11,000.00 litres. The diameter inside includes 2,200 mm.  Container 11.000 liters made of V2A, used, isolated was last used in the following area: Abwasser {Wastewater. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Cleaning/CIP,

General

  • Volume approx.

  • 11.000,00 litres

  • Chamber volume 1

  • 5500 litres

  • Chamber volume 2

  • 5500 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1988

  • Manufacturer

  • G+R

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.200 mm

  • External diameter

  • 2.400 mm

  • Cyl. height

  • 3.100 mm

  • Foot height

  • 950 mm

  • Total height

  • 4.550 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Bolted aluminium

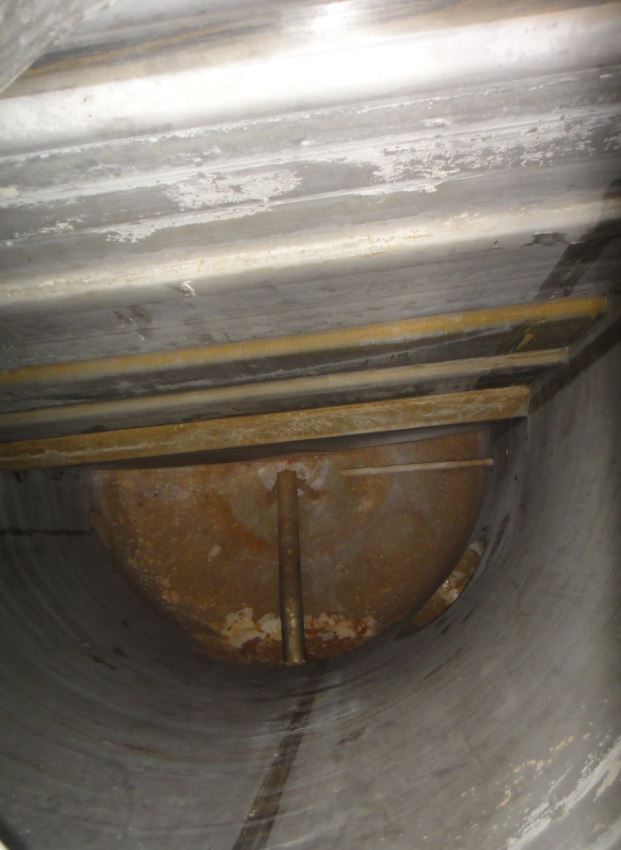

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In floor

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 1xDN 100 (piece)

  • Nozzles/connectors in head

  • 2xDN 100 2x DN 65 (piece)

  • Outlet nozzle

  • 110

Other

  • Last usage

  • Abwasser {Wastewater

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Mash tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
