Product no. M-1384

Container 10.000 liters made of V4A, used, single-walled, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

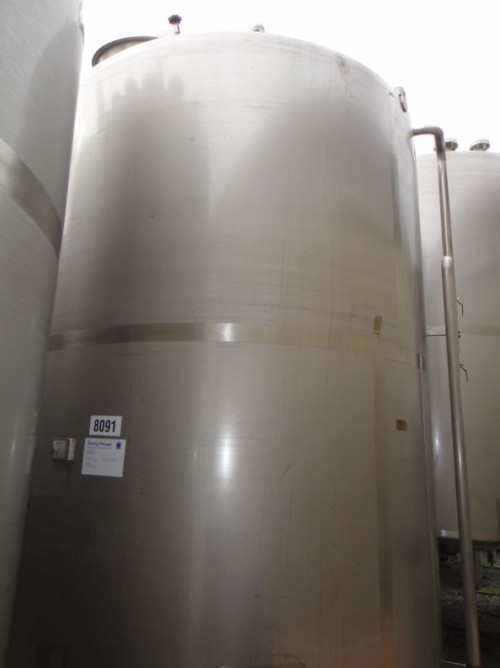

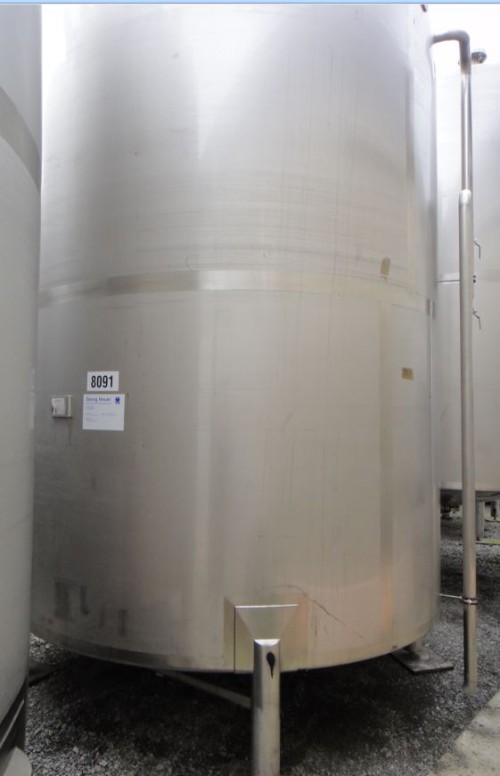

Container 10.000 liters made of V4A, used, single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 10,000.00 litres.  Container 10.000 liters made of V4A, used, single-walled was last used in the following area: Fine chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2006

  • Manufacturer

  • DAN Team

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.400 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 470 mm

  • Total height

  • 3.970 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1xDN 50 (piece)

  • Nozzles/connectors in head

  • 5xDN 50 (piece)

  • Nozzles/connectors in floor

  • 2xDN 50 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Fine chemistry

This product is suitable for use as:

Foodstuffs: CIP tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,
