Product no. M-1733

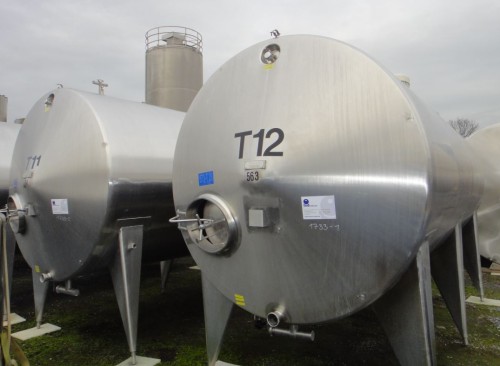

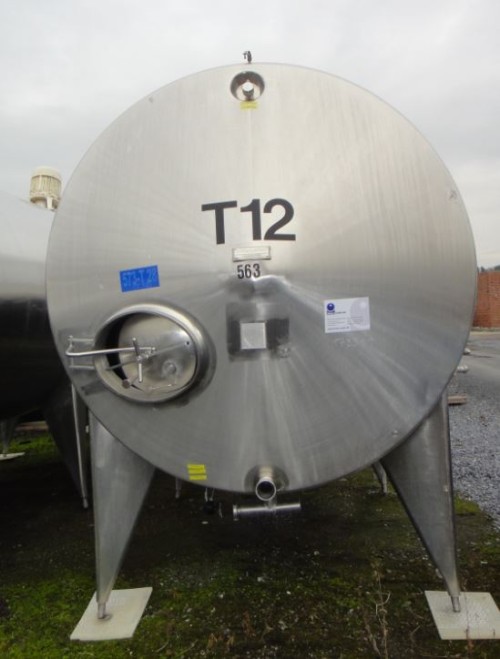

Container 10.000 liters made of V2A, used, isolated, horizontal

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,000 mm.  Container 10.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1973

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.100 mm

  • Cyl. length

  • 4.780 mm

  • Outlet height

  • 724 mm

  • Total height

  • 3.720 mm

  • Total length

  • 5.400 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

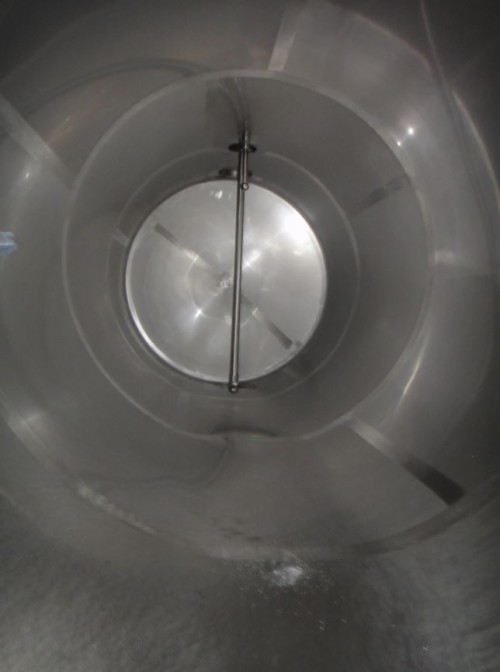

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

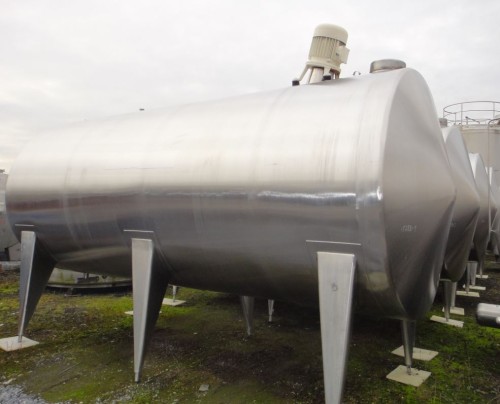

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • Stelzer

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

Fixtures and fittings

  • Nozzle connector

  • Screw thread

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

  • Air vent

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Thermal buffer, Cold water tank,

Agriculture: Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Thermal buffer, Cold water tank,
