Product no. M-2085

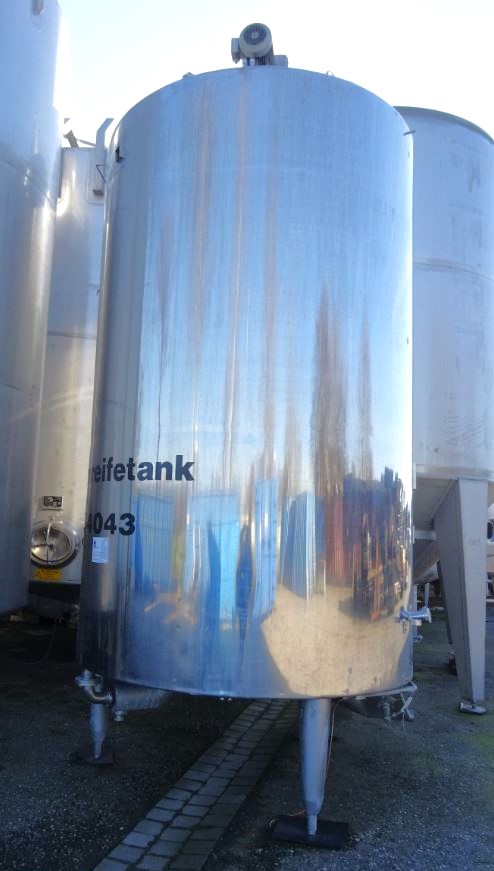

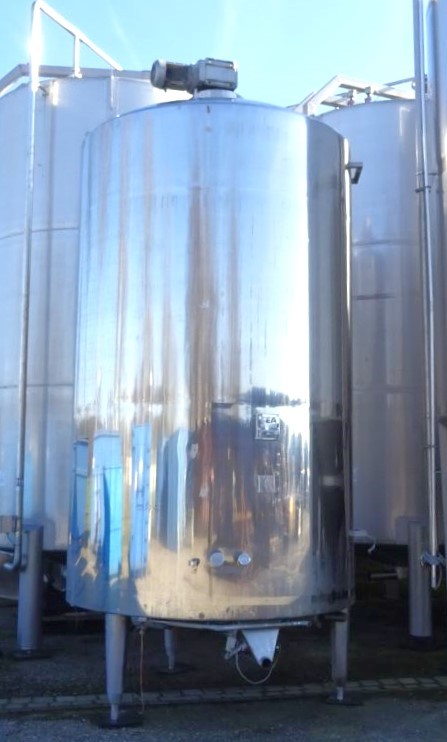

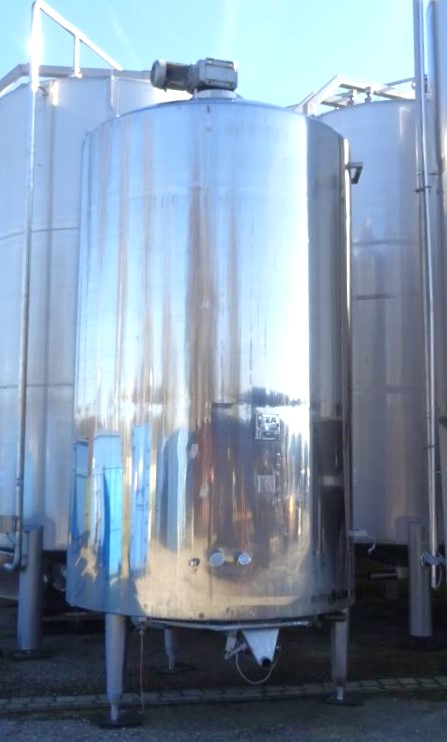

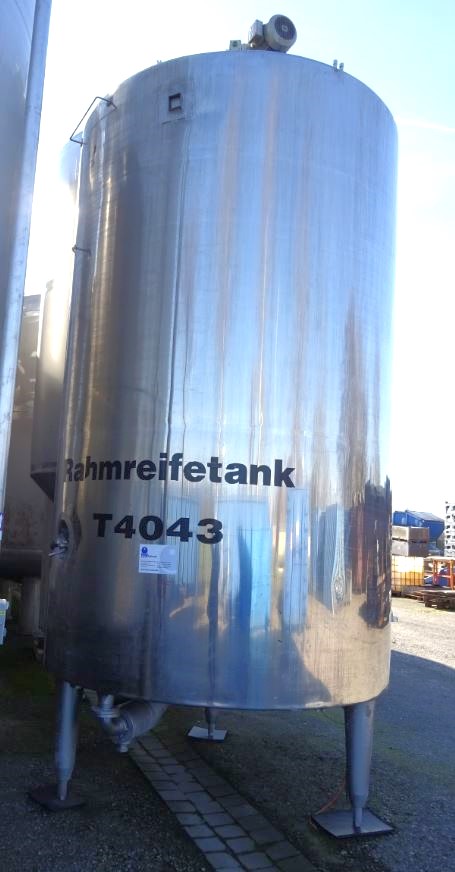

Container 10.000 liters made of V2A, used, isolated, standing
EUR 14.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 11,000.00 litres
Product description
Container 10.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 11,000.00 litres. Container 10.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cleaning/CIP,General
Volume approx.
11.000,00 litres
Structure
Standing
Year of manufacture
1985
Manufacturer
GEA Ahlborn
Condition
Used
Dimensions approx.
External diameter
2.200 mm
Cyl. height
3.500 mm
Foot height
720 mm
Total height
5.500 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Polished
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Dished
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area

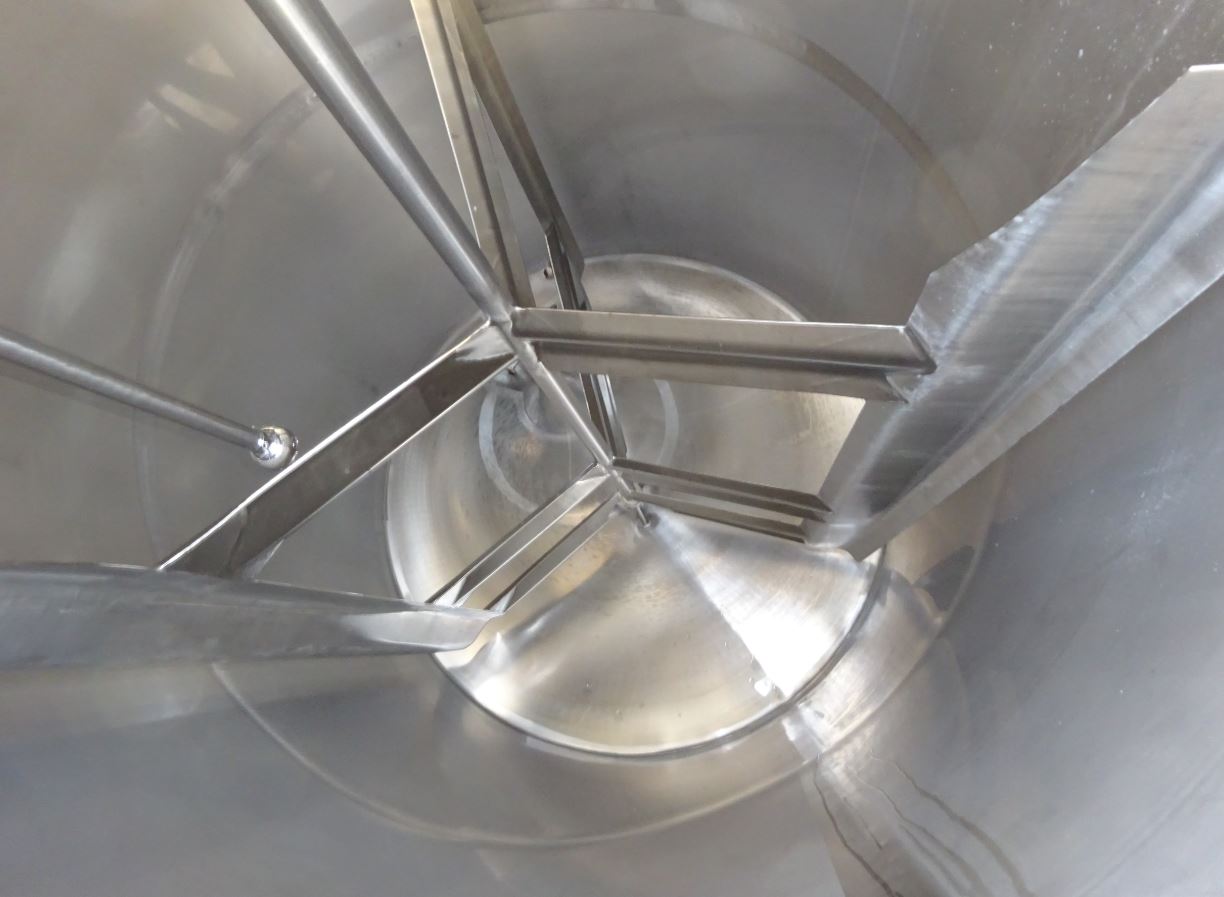

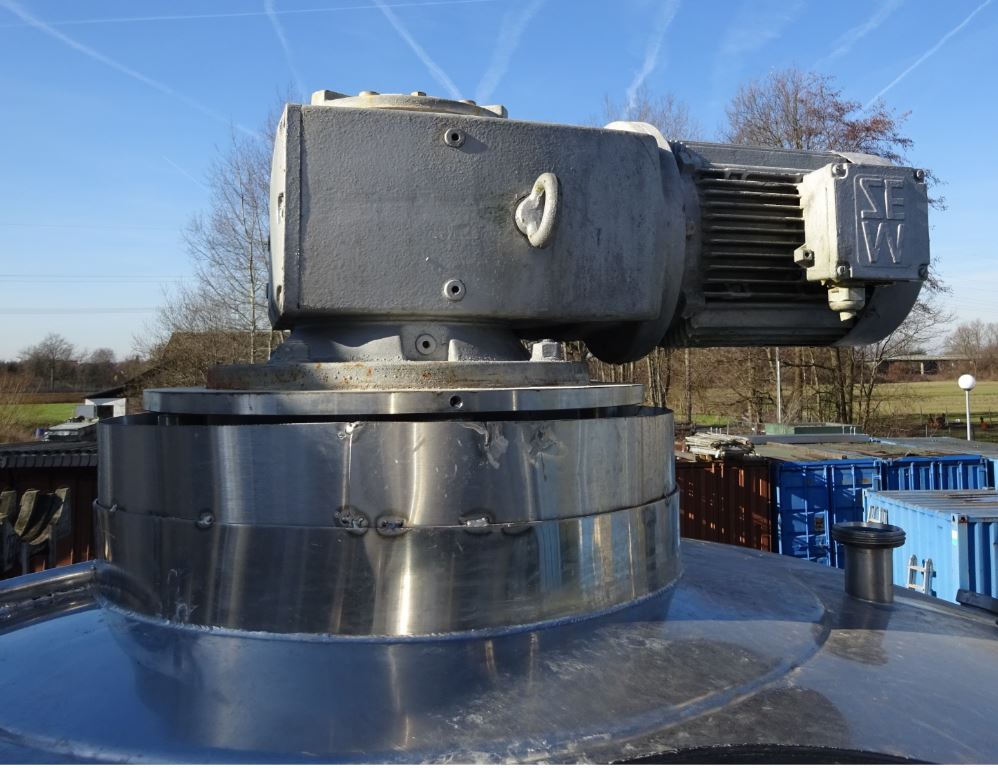

Agitator
Agitator quantity
1 (piece)

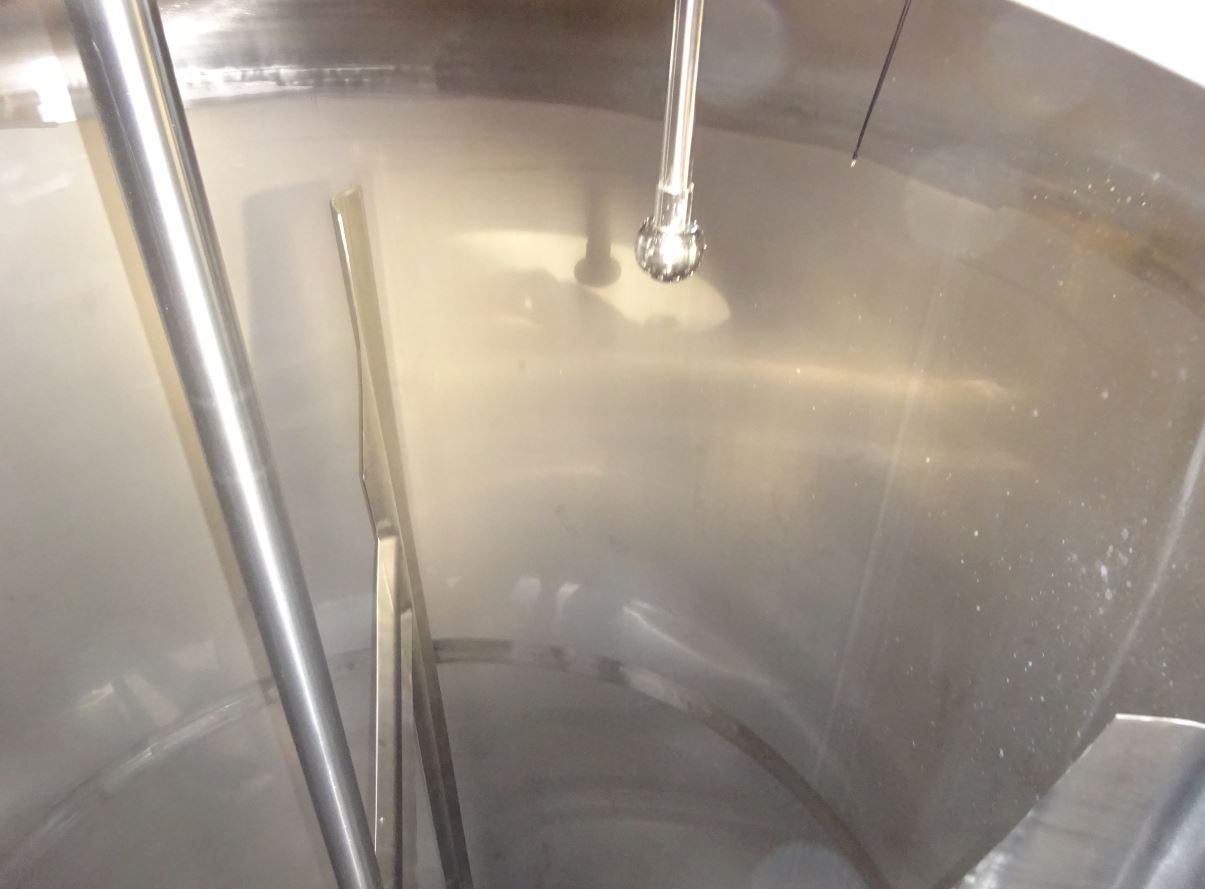

Agitator type
Wall scraper
Agitator position
Head central

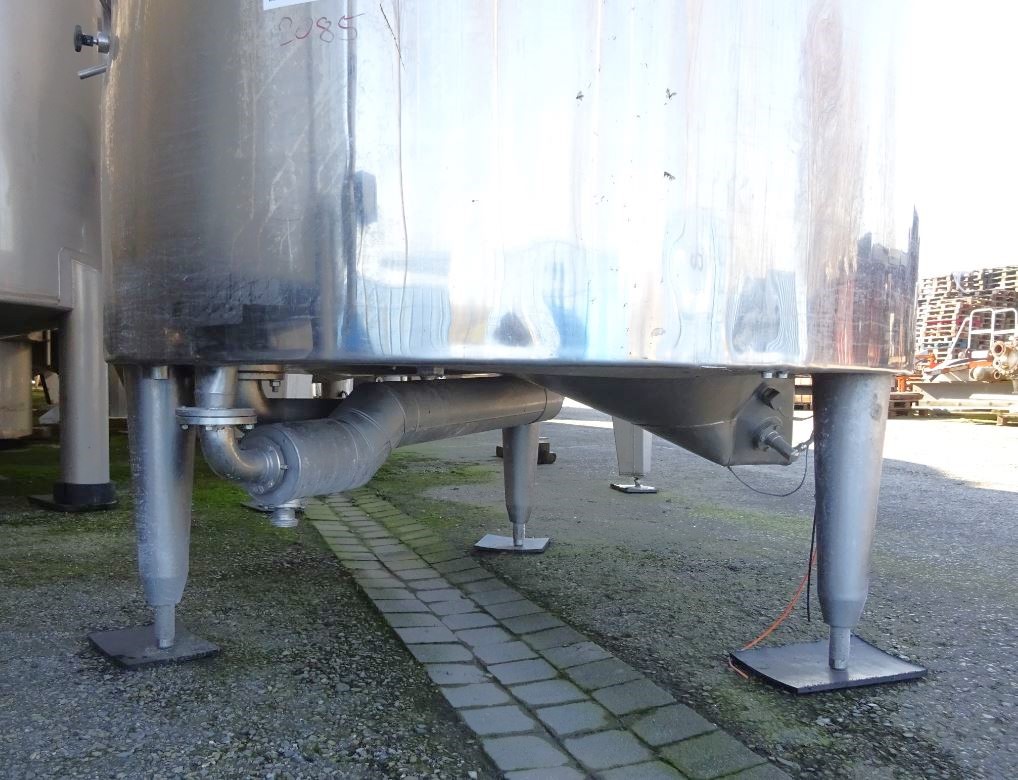

Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings
Manway position
In head

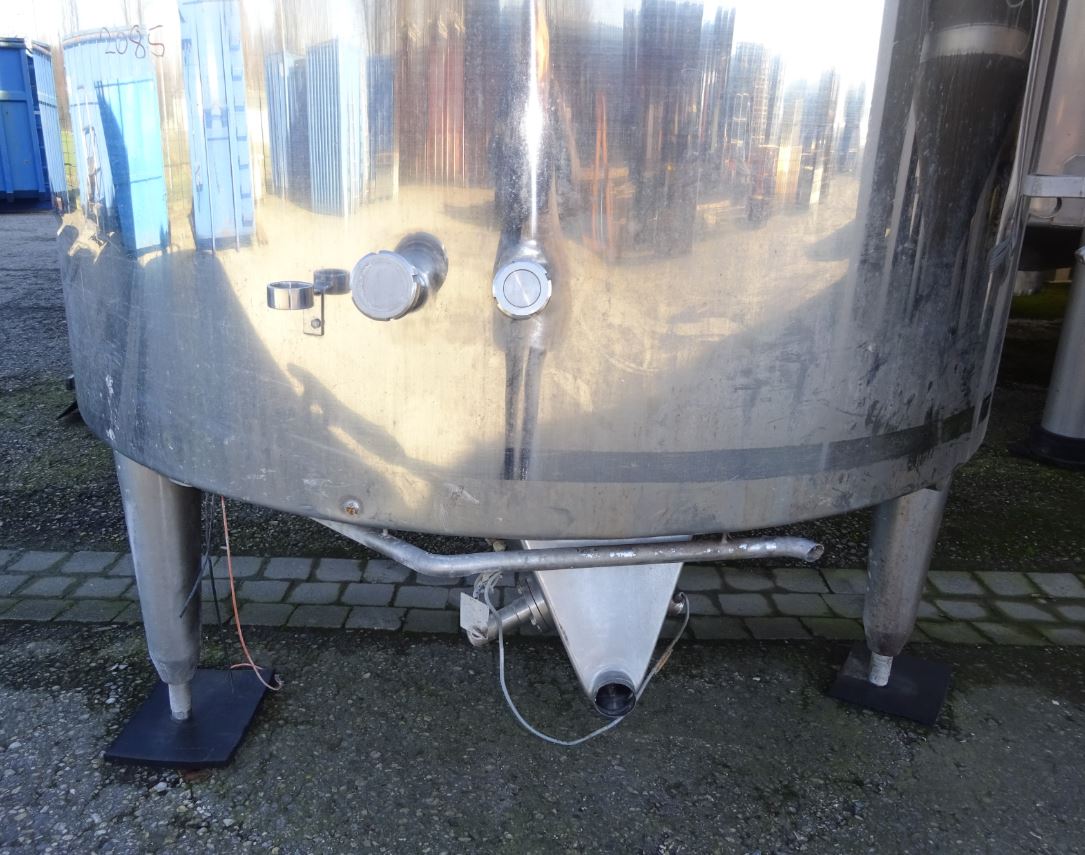

Outlet nozzle
65
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs

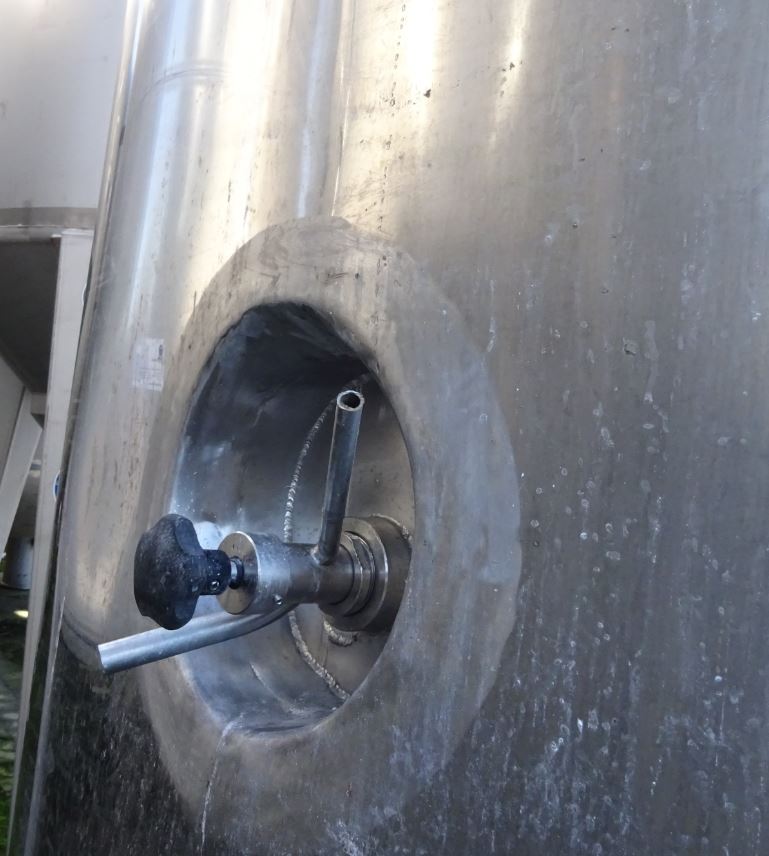

Sample taking
Additional fixtures and fittings
Nameplate
Other
Note
Temperiermantel ungeprüft, keine Gewähr für Funktion und Zustand
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
