Product no. M-2016

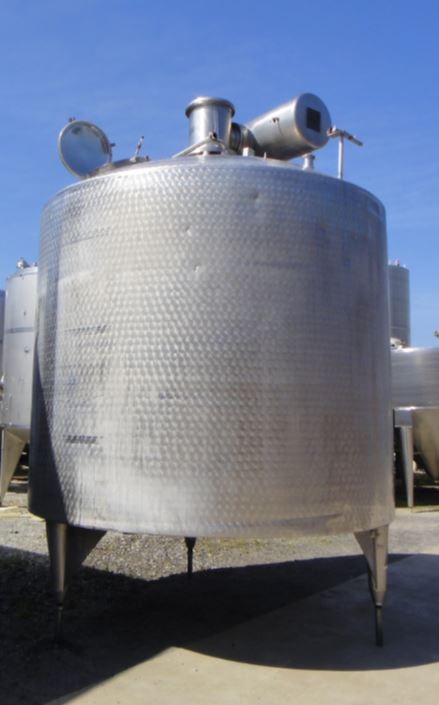

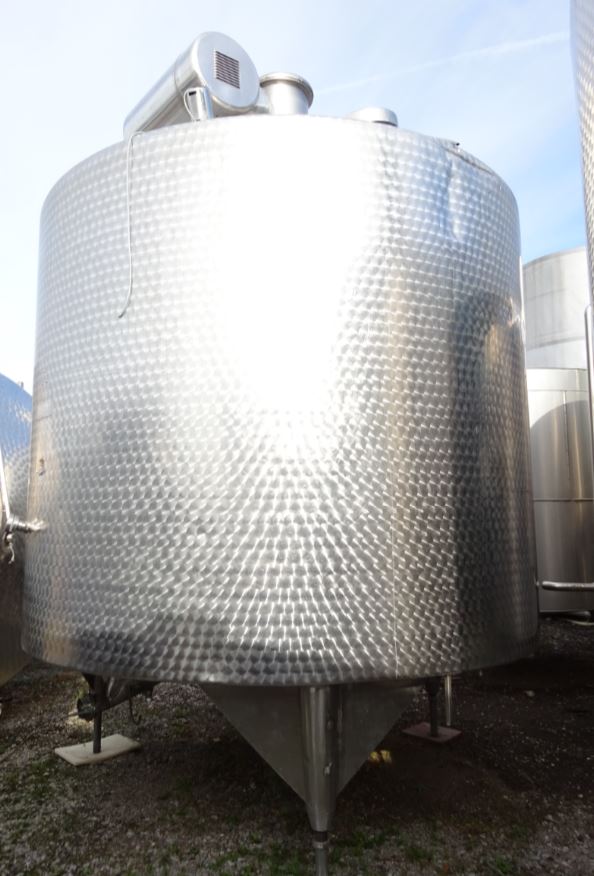

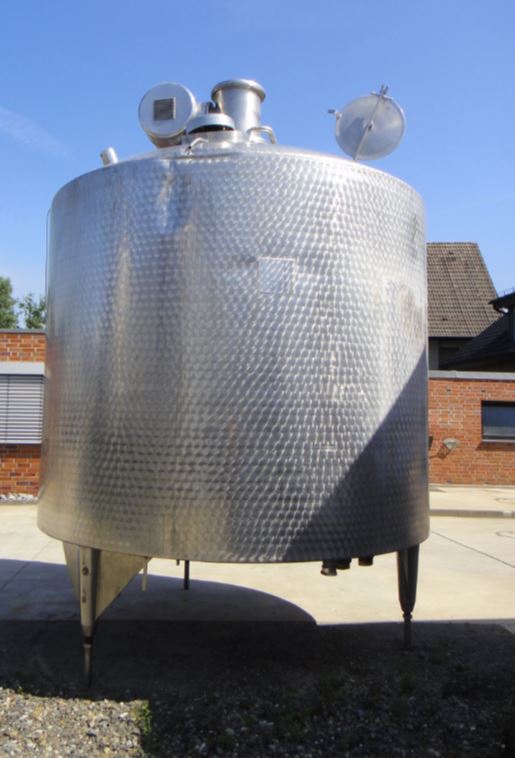

Container 10.000 liters made of V2A, used, isolated, standing
EUR 8.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 10,000.00 litres
Product description
Container 10.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. Container 10.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
10.000,00 litres
Structure
Standing
Manufacturer
Ahlborn
Condition
Used
Dimensions approx.
External diameter
2.600 mm
Cyl. height
2.250 mm
Foot height
870 mm
Total height
4.720 mm
Design
Weight approx.
2.000,00 kg
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Head design
Dished
Agitator
Agitator quantity
1 (piece)

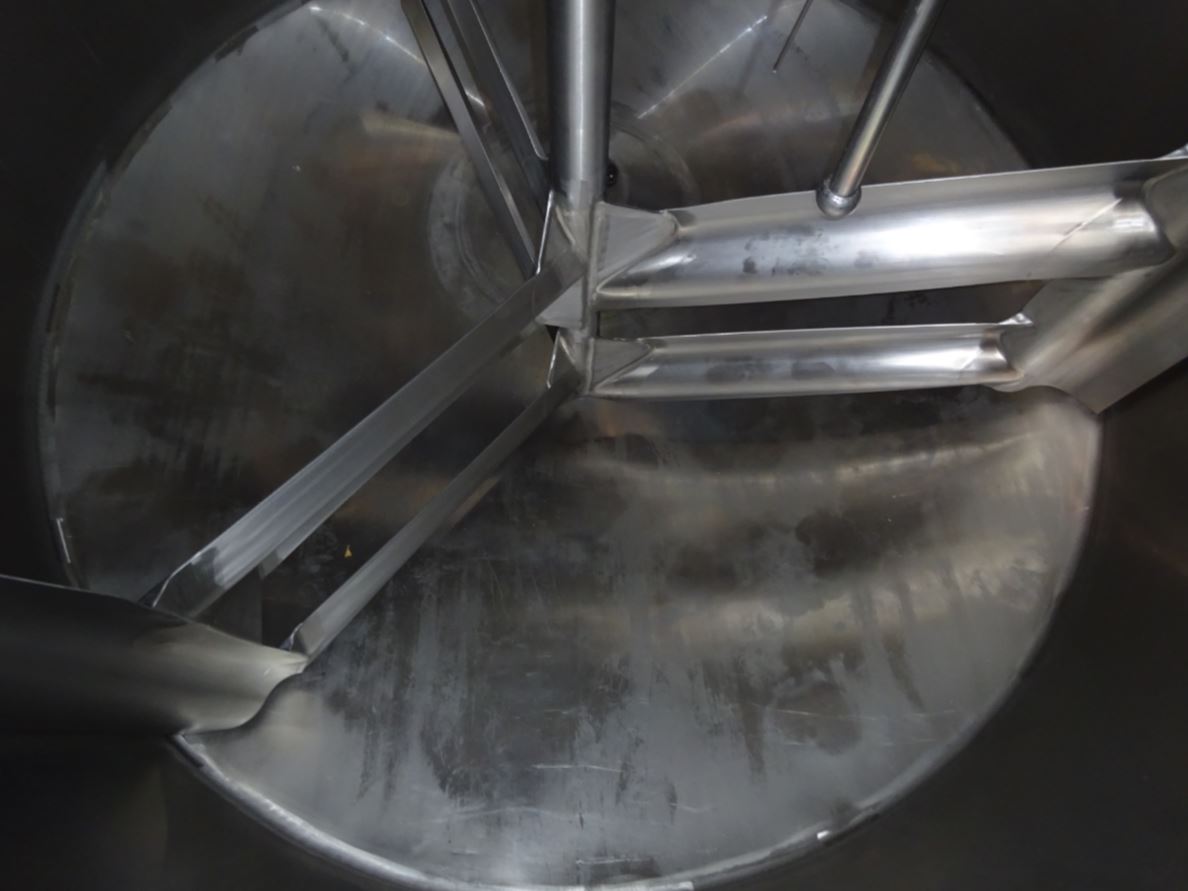

Agitator type
Wall scraper

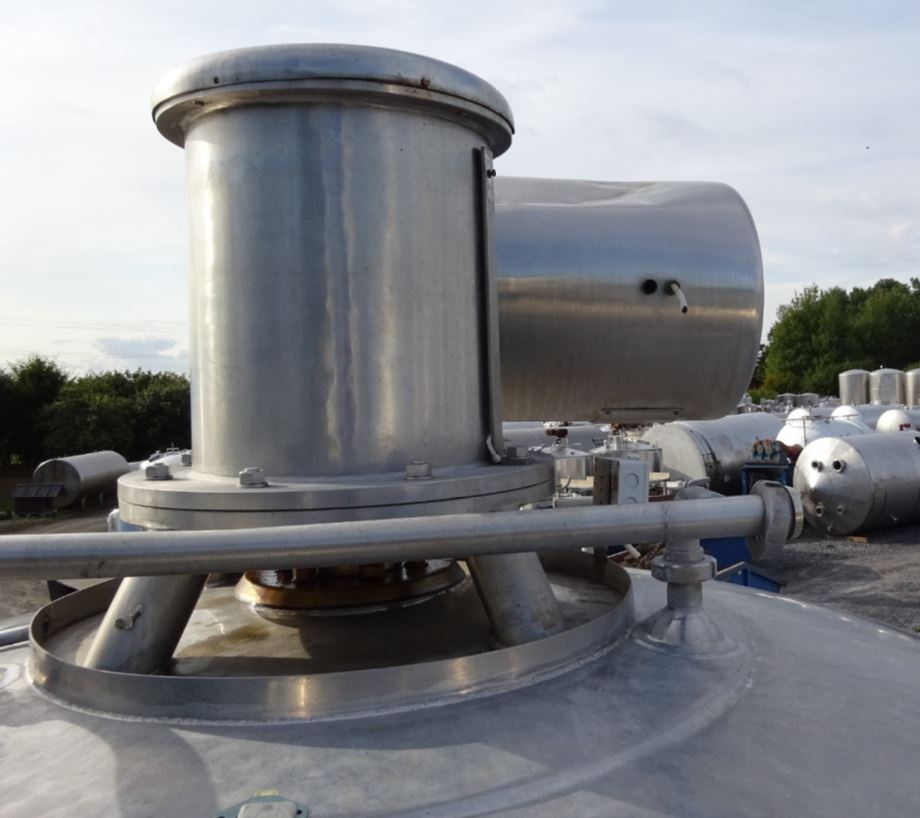

Agitator position
Head central
Supports
Supports

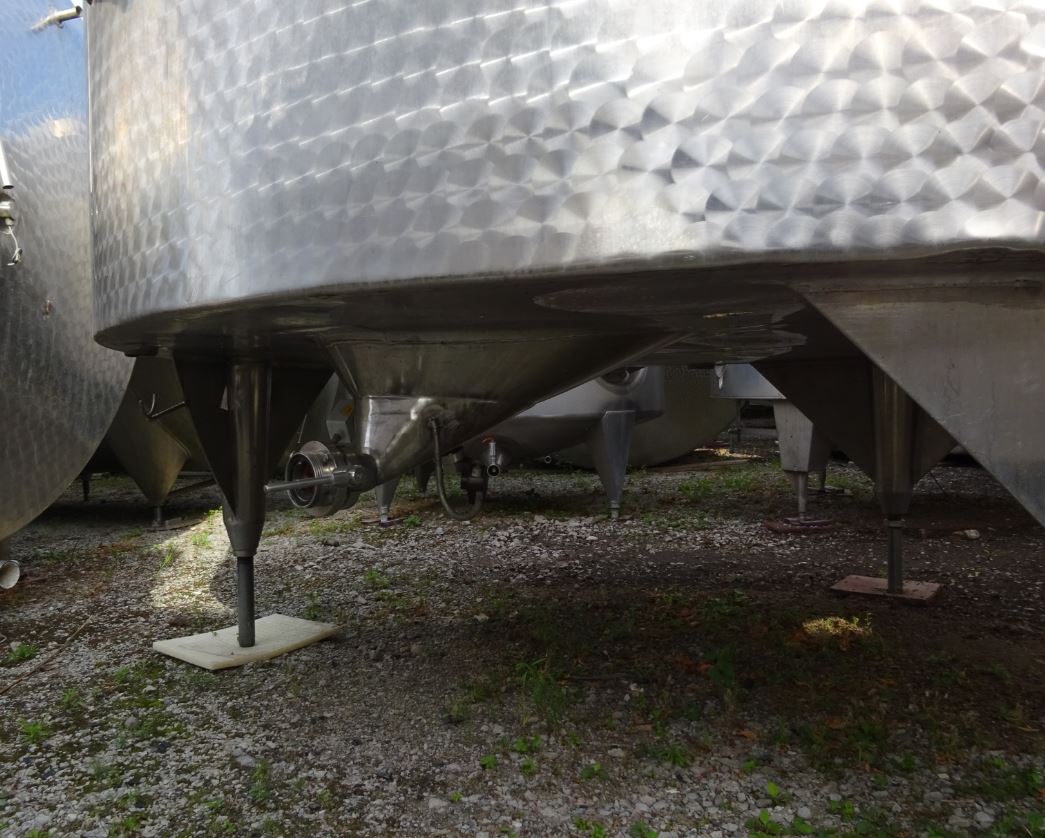

Stainless steel feet
Number of feet
3 (piece)
Fixtures and fittings

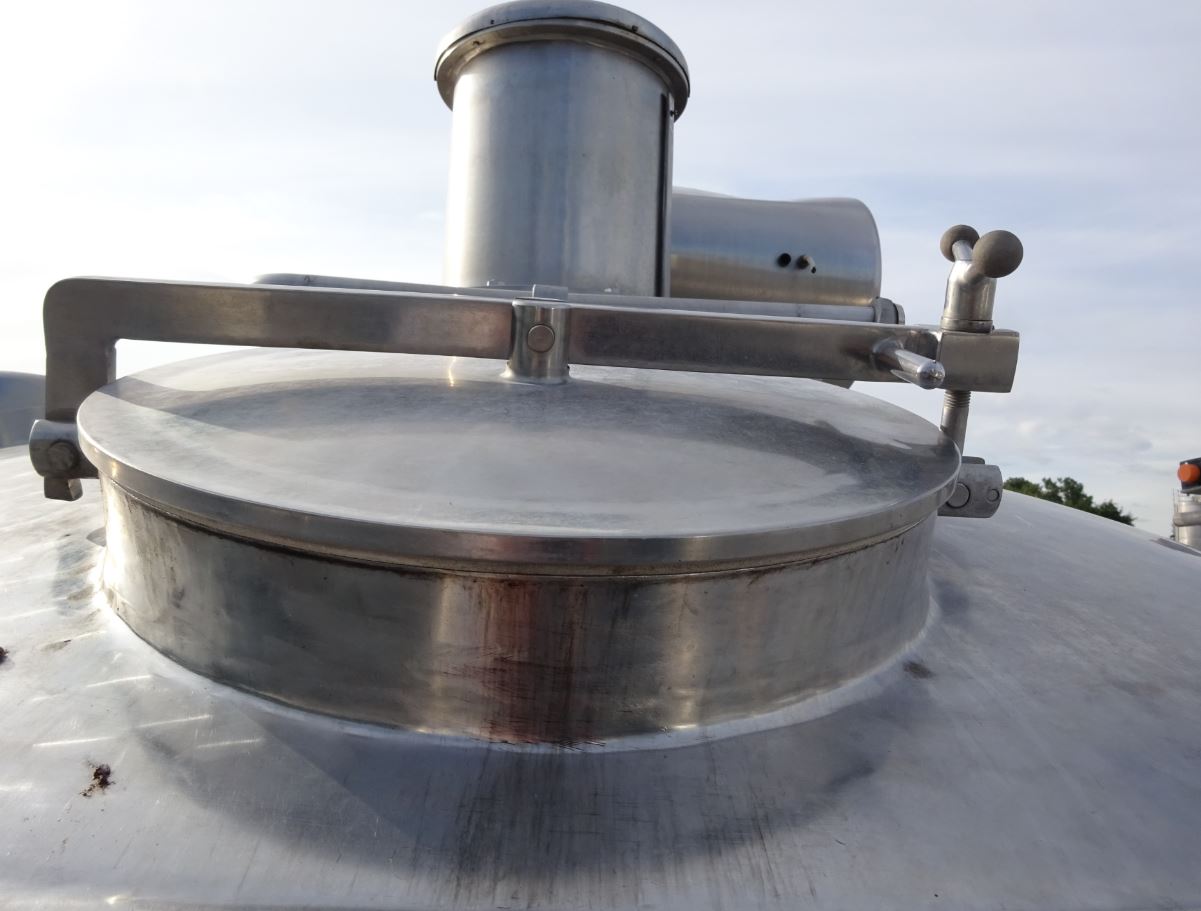

Manway 1 size
430 DN mm
Manway position
In head
Outlet nozzle
80
Cleaning/CIP nozzle
in head
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Note
Kühl-/Heizmantel vorhanden, jedoch defekt
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
