Product no. M-1620

Container 10.000 liters made of V2A, used, single-walled, standing

EUR 6.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

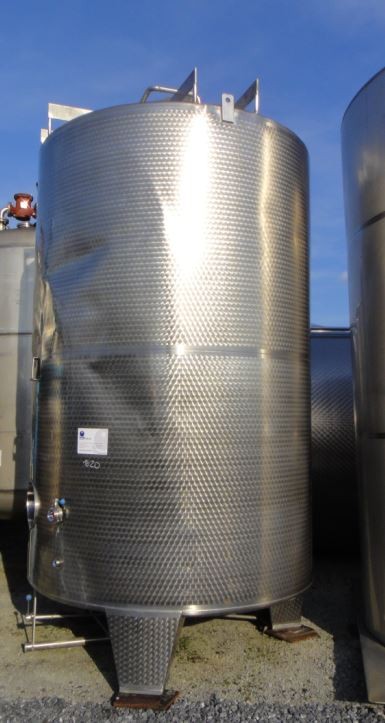

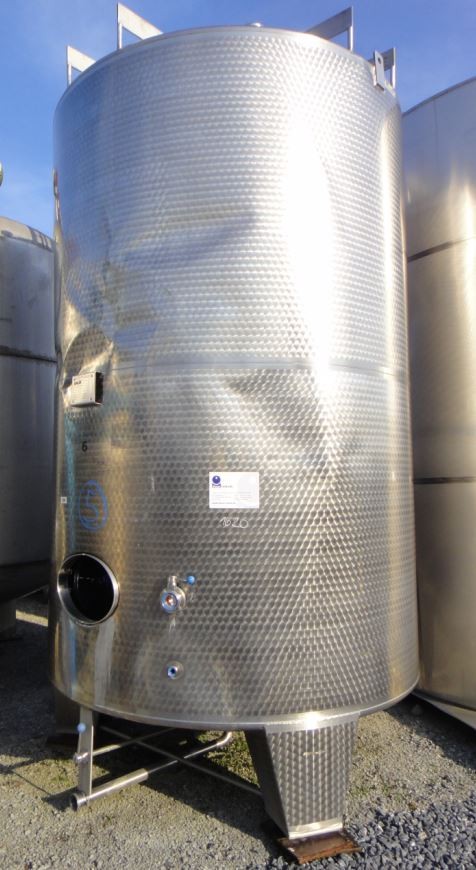

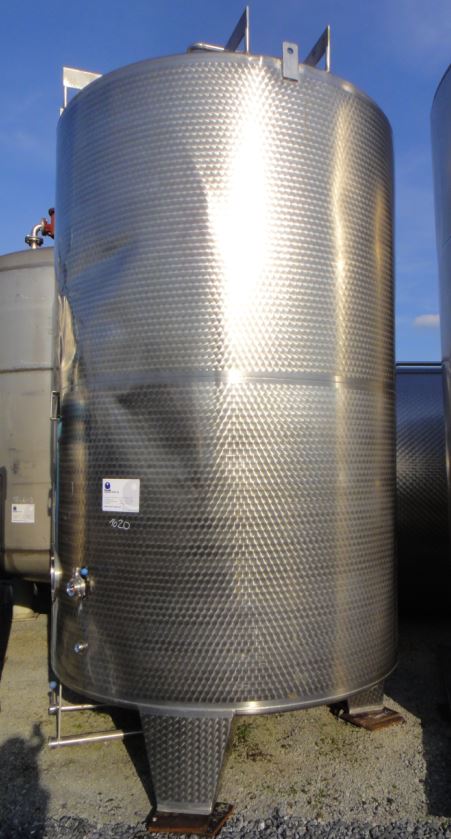

Container 10.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres.  Container 10.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1999

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.050 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 500 mm

  • Total height

  • 4.500 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

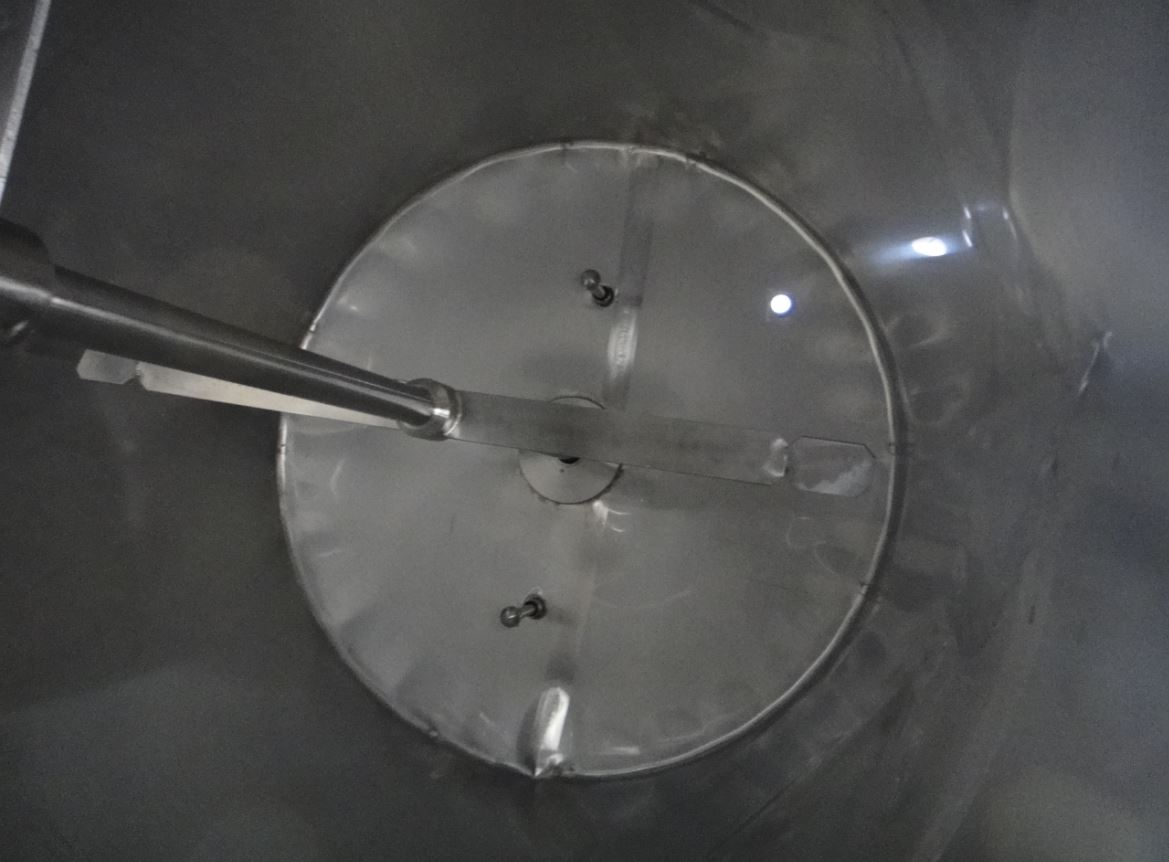

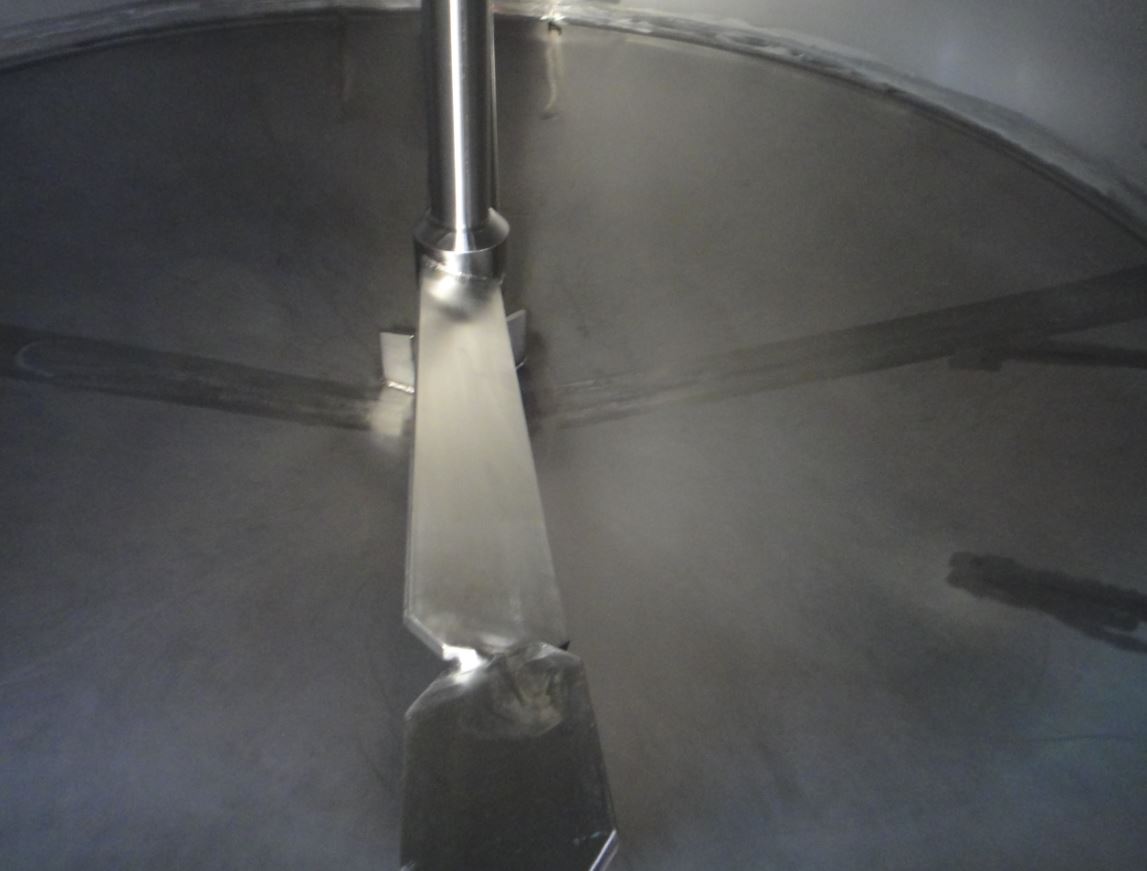

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head central

  • Agitator 1 - Output

  • 5,5 / 6,3 kW

  • Agitator 1 - RPM

  • 30 UpM

  • Agitator 1 - Voltage

  • 380-420 / 440-480 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in shell

  • 1xDN50 (piece)

  • Nozzles/connectors in head

  • 1xDN50 (piece)

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Nameplate

Other

  • Note

  • leichte Druckstellen im Mantelbereich

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Filtrate tank,
