Product no. M-1902

Container 10.000 liters made of V2A, used, single-walled, standing

EUR 8.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,250 mm.  Container 10.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1990

  • Manufacturer

  • Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.250 mm

  • Cyl. height

  • 2.400 mm

  • Outlet height

  • 600 mm

  • Total height

  • 4.140 mm

Design

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 410x510 DN mm

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 1xDN150 1xDN65 1xDN50 (piece)

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in floor

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

  • Additional fixtures and fittings

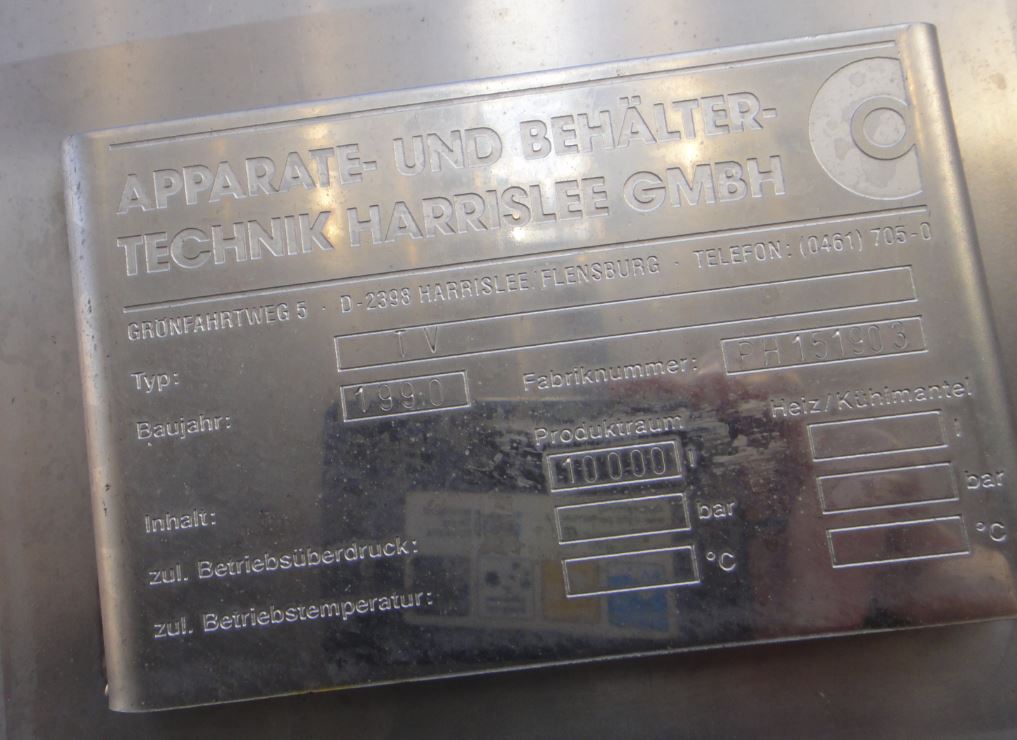

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, CIP tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
