Product no. M-1020

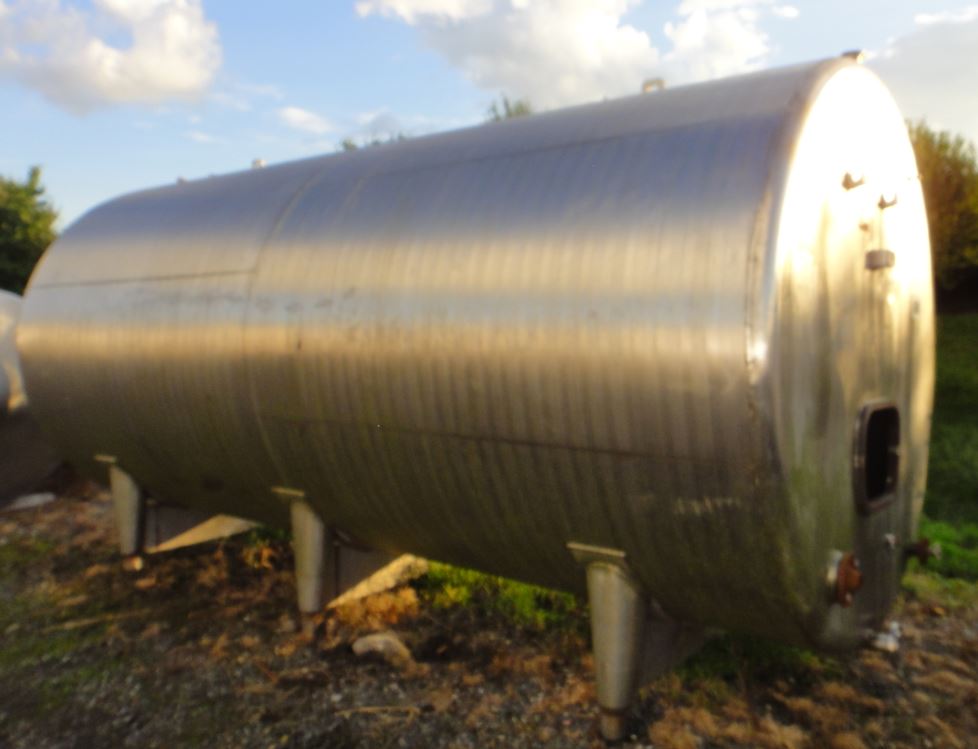

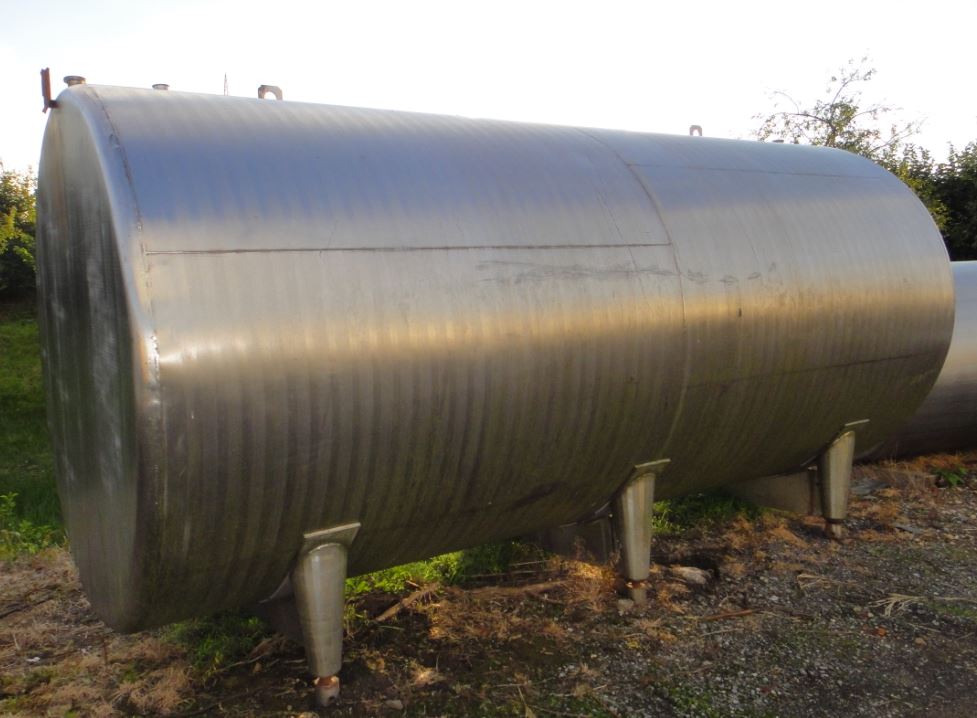

Container 10.000 liters made of V2A, single-walled, horizontal

EUR 5.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, single-walled consists of the material 1.4541(AISI321). The volume is approx. 10,000.00 litres. The diameter inside includes 1,900 mm.  Container 10.000 liters made of V2A, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1987

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.900 mm

  • Cyl. length

  • 4.100 mm

  • Outlet height

  • 285 mm

  • Total height

  • 2.500 mm

  • Total length

  • 4.100 mm

Design

  • Weight approx.

  • 1.044,00 kg

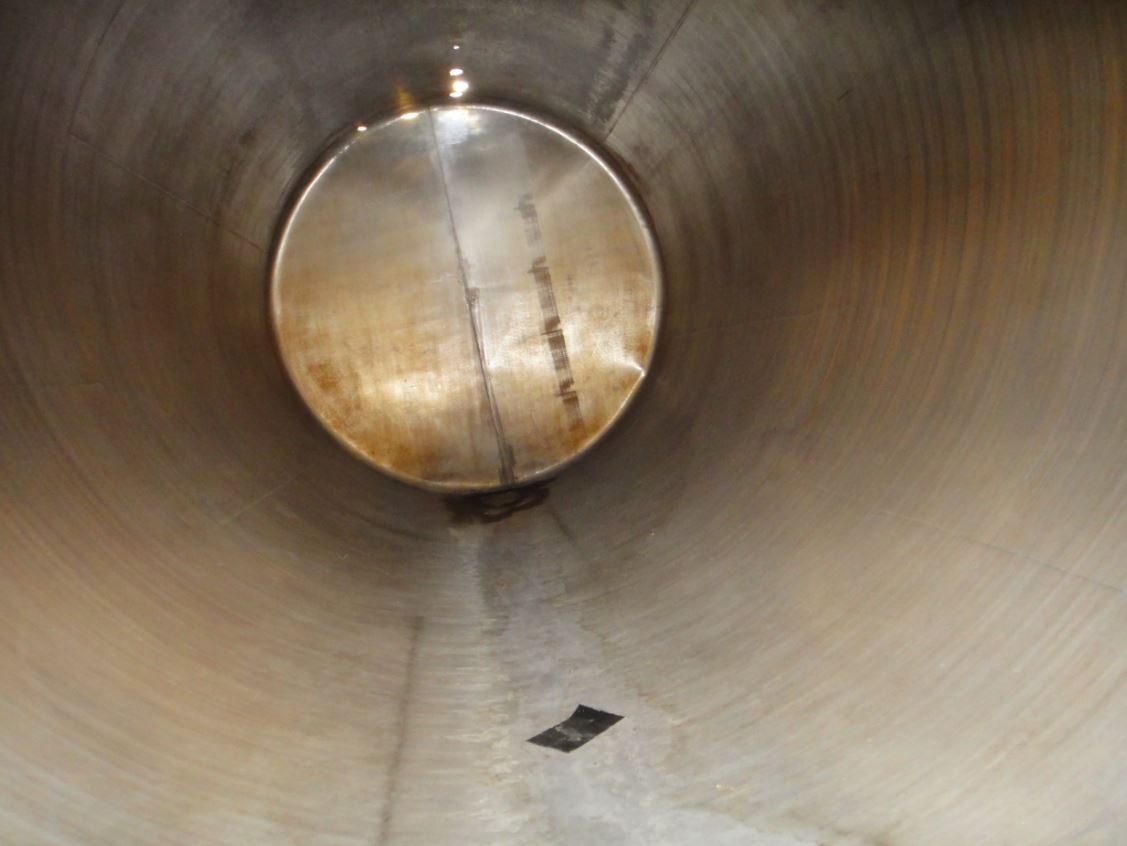

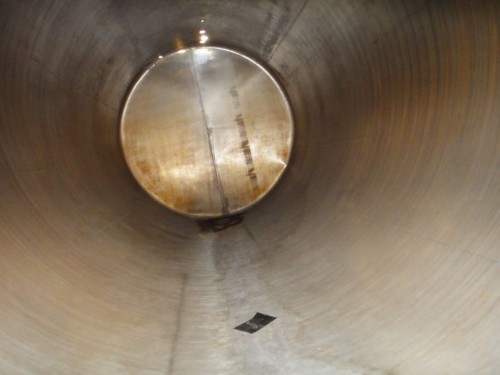

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

Fixtures and fittings

  • Manway 1 size

  • 300 DN mm

  • Manway position

  • Front face

  • Nozzles/connectors in shell

  • 2 (piece)

  • Nozzles/connectors in head

  • 2 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank, Cold water tank,
