Product no. M-2552

Container 1.622 liters made of V2A temperature-controllable, used, standing

EUR 3.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,622.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

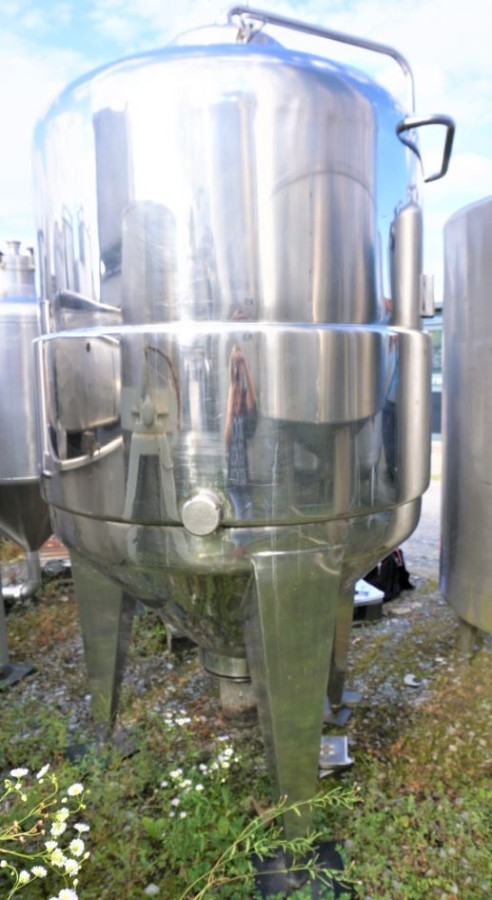

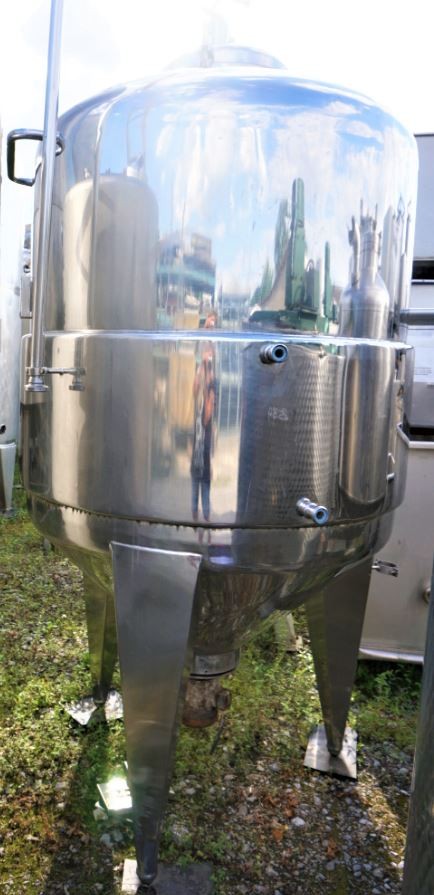

Container 1.622 liters made of V2A temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,622.00 litres. The diameter inside includes 1,200 mm.  Container 1.622 liters made of V2A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Processes,

General

  • Volume approx.

  • 1.622,00 litres

  • Structure

  • Standing

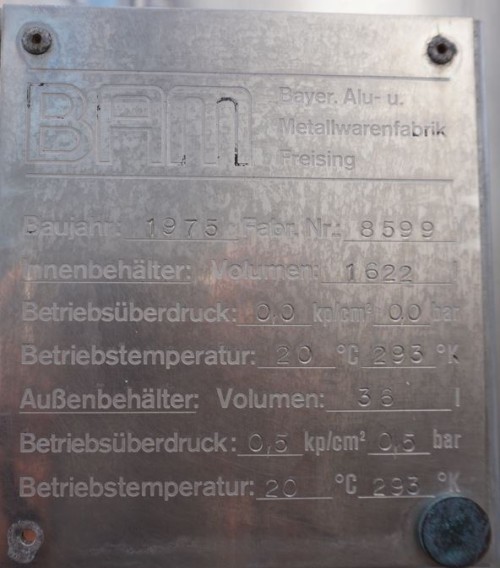

  • Year of manufacture

  • 1975

  • Manufacturer

  • BAM Feising

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.200 mm

  • External diameter

  • 1.250 mm

  • Cyl. height

  • 1.100 mm

  • Foot height

  • 1.000 mm

  • Total height

  • 2.600 mm

Design

  • Weight approx.

  • 700,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Polished

  • Floor type

  • Cone

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Double shell

  • Operating temperature

  • 20 °C

  • Temperature control system operating pressure/pipe chamber

  • 05 bar

  • Temperature control system operating temperature/pipe chamber

  • 20 °C

  • Temperature control system/pipe chamber capacity

  • 36 litres

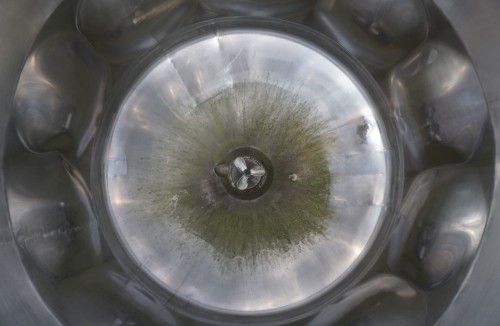

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Floor

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

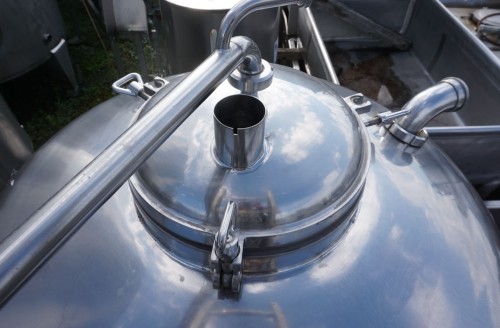

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN65 (piece)

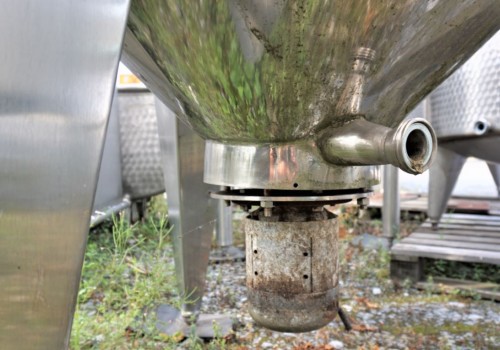

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Ladder stay

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • innen leichte Beulen im Bereich des Doppelmantels

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
