Product no. M-2113

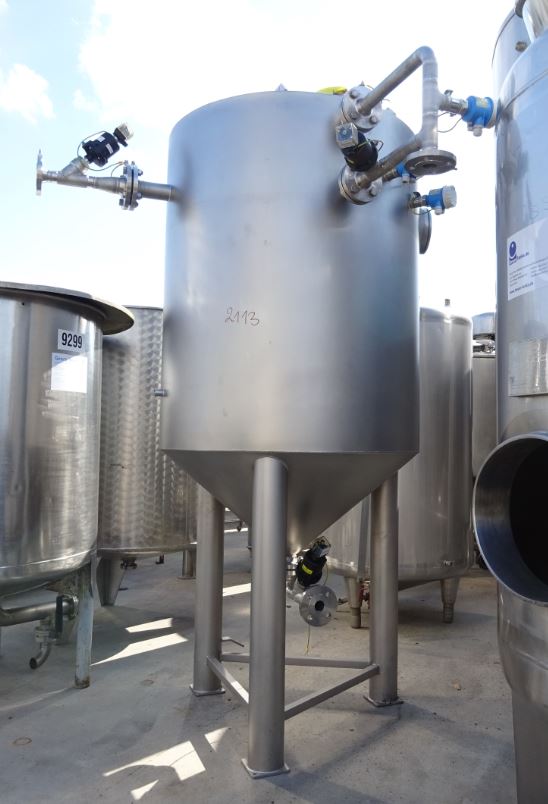

Container 1.035 liters made of V4A, unused, single-walled, standing

EUR 2.320,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,035.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.035 liters made of V4A, unused, single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 1,035.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 1.035,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2016

  • Manufacturer

  • EMPL

  • Condition

  • Unused

Dimensions approx.

  • External diameter

  • 1.050 mm

  • Cyl. height

  • 1.200 mm

  • Total height

  • 2.400 mm

  • Wall thickness of product chamber head

  • 4,70 mm

  • Wall thickness of product chamber shell

  • 2,84 mm

  • Wall thickness of product chamber floor

  • 2,84 mm

Design

  • Weight approx.

  • 200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Cone

  • Head design

  • Flat bottom

  • Product chamber operating over-pressure

  • 0,5 bar

  • Product chamber operating temperature

  • 40 °C

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 1xDN50 2xDN40 (piece)

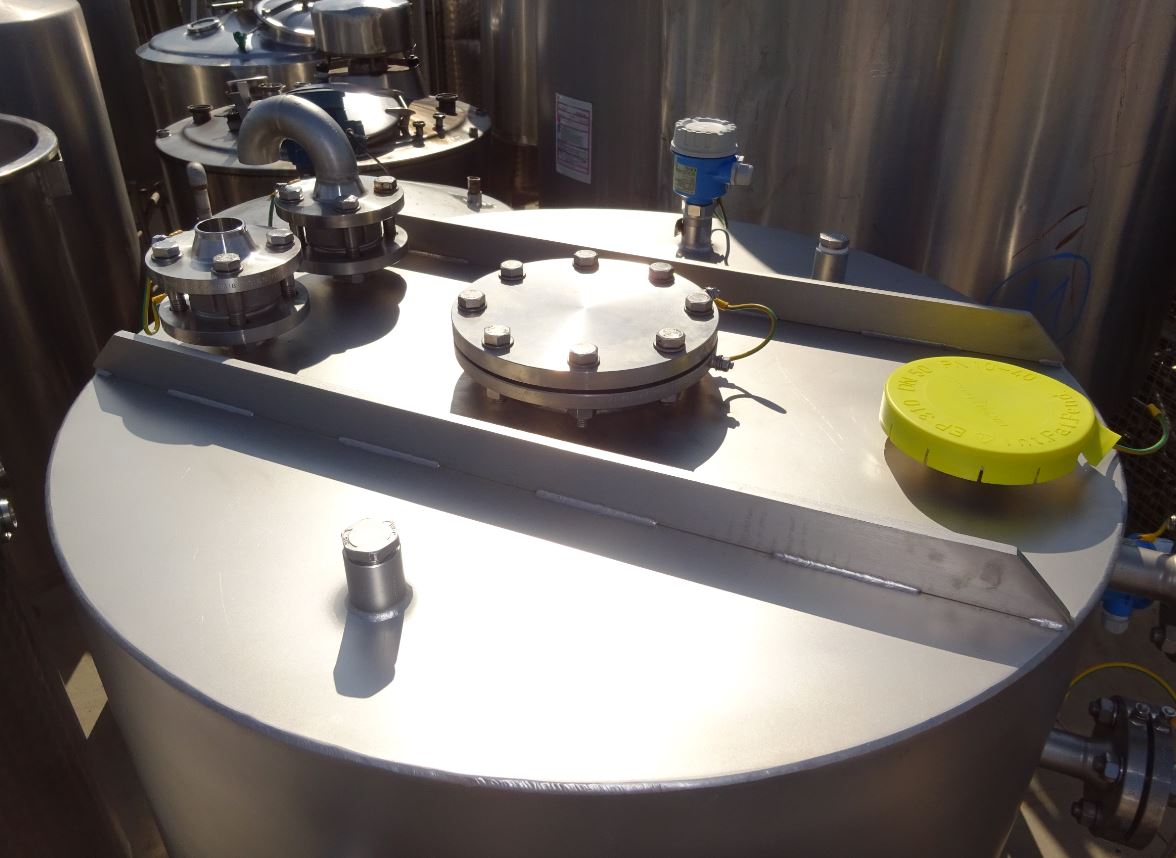

  • Nozzles/connectors in head

  • 1xDN150 1xDN50 2xDN40 (piece)

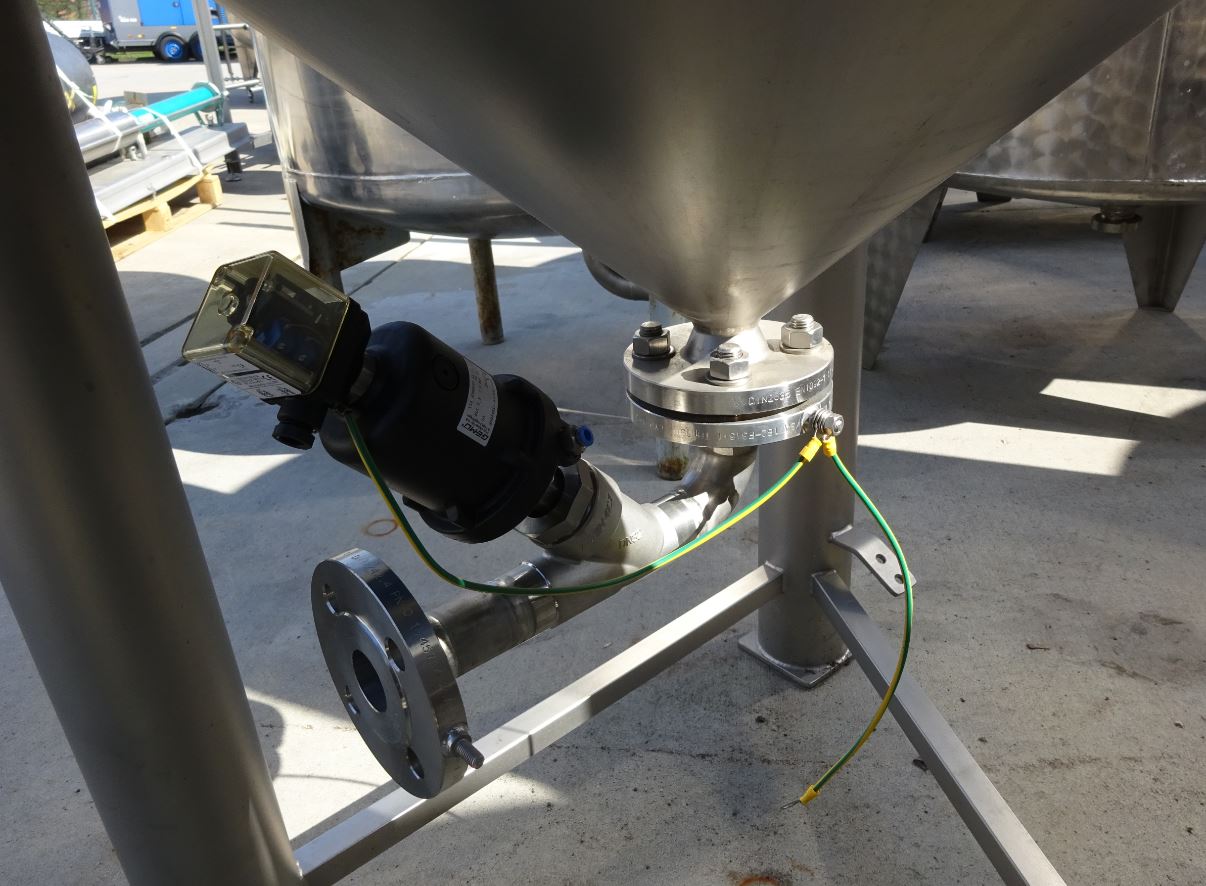

  • Outlet nozzle

  • 40

  • Additional fixtures and fittings

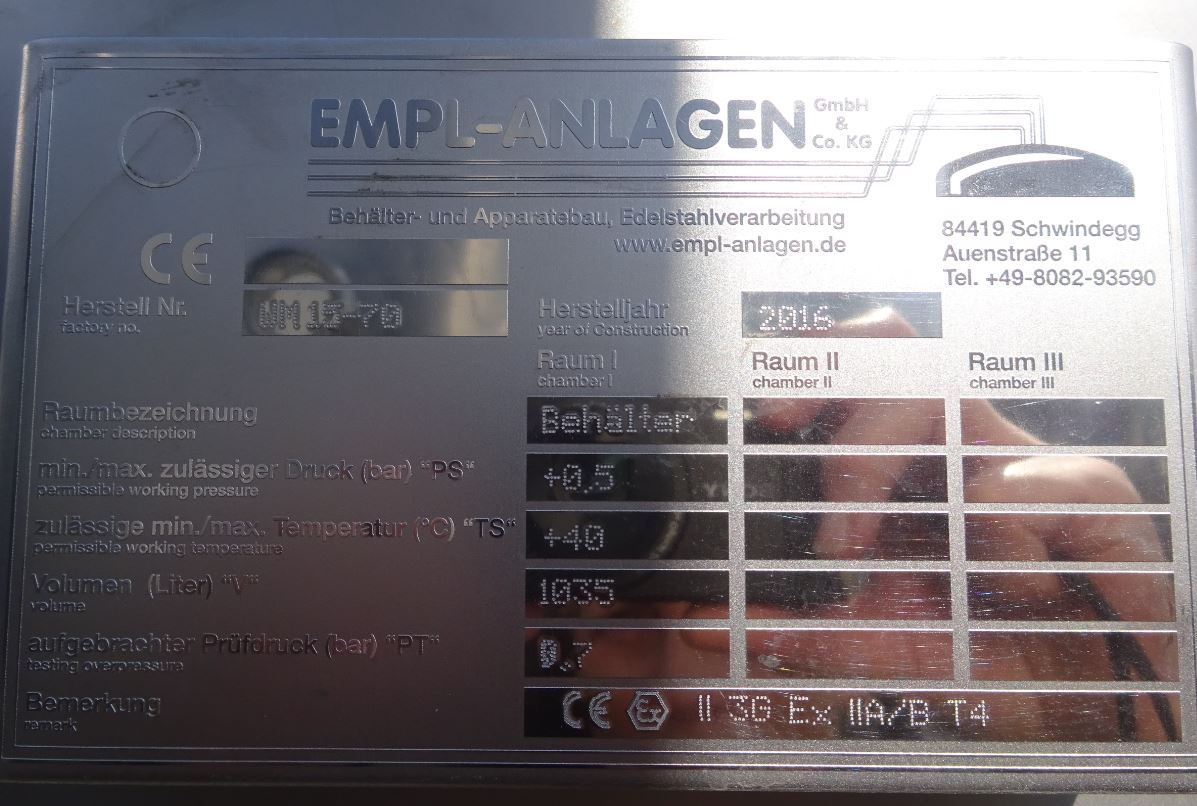

  • Nameplate

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Flour silo, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
