Product no. M-2285

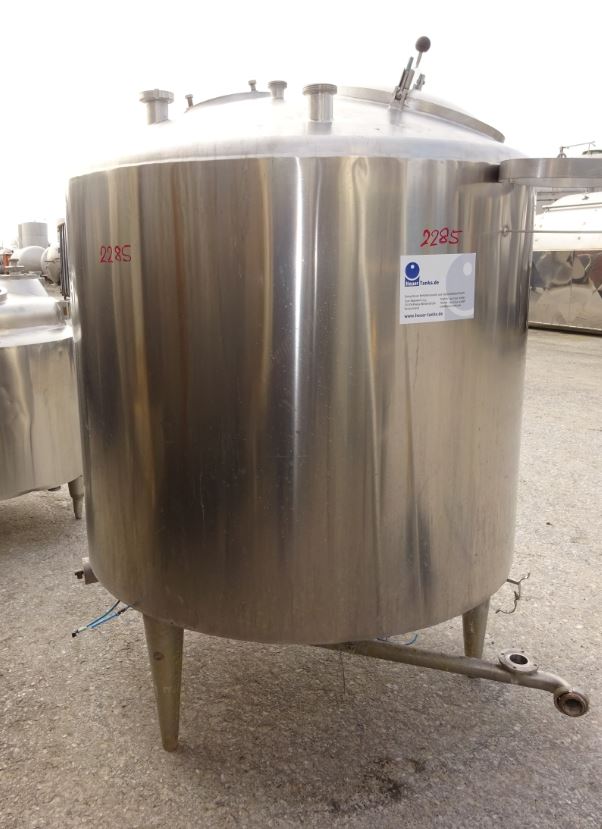

Container 1.000 liters temperature-controllable, isolated, standing

EUR 5.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

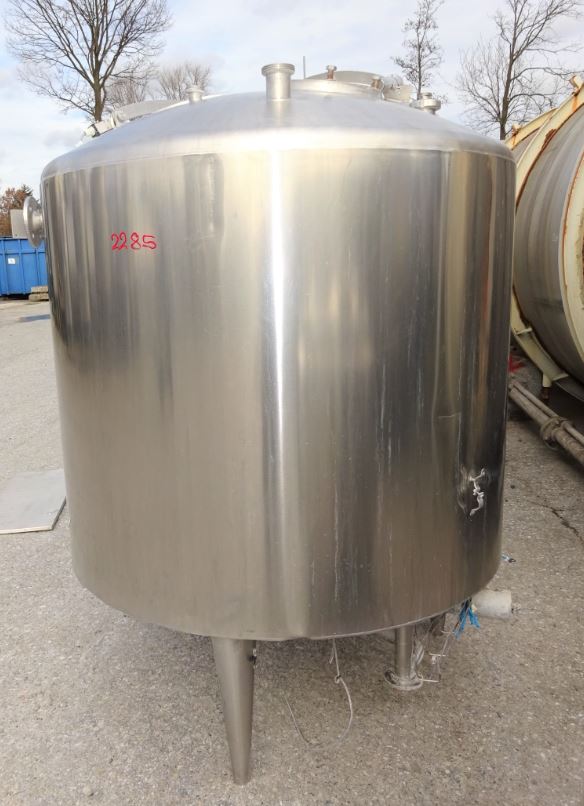

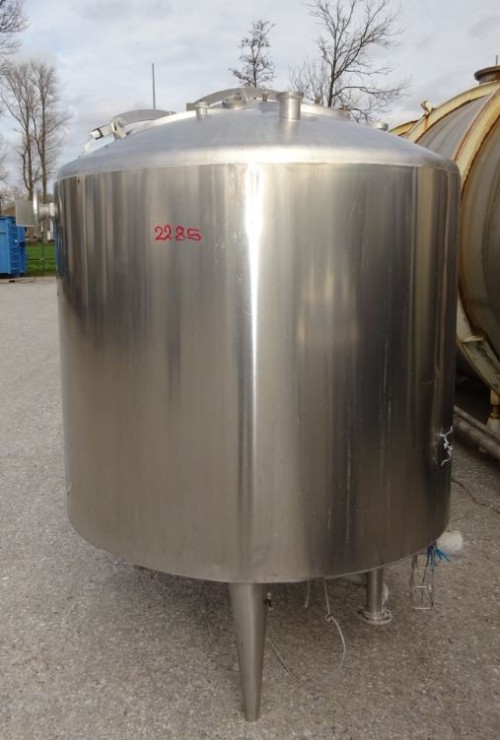

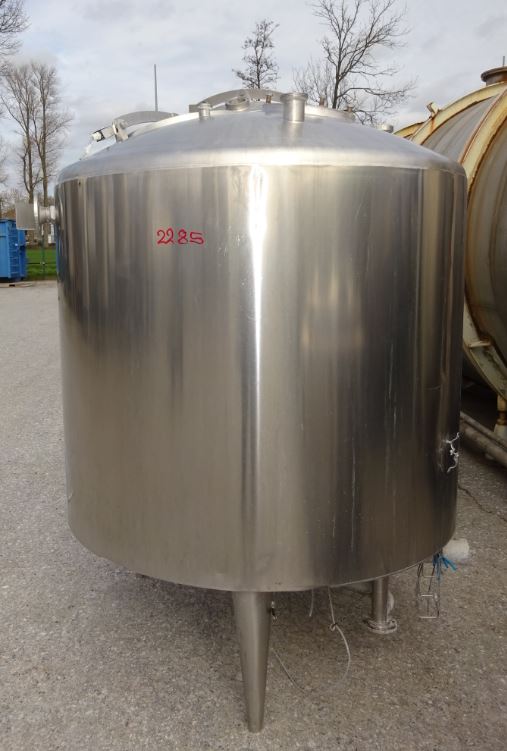

Container 1.000 liters temperature-controllable, isolated consists of the material 1.4539. The volume is approx. 1,000.00 litres. The diameter inside includes 1,020 mm.  Container 1.000 liters temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Mixing, Processes,

General

  • Volume approx.

  • 1.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.020 mm

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 1.100 mm

  • Foot height

  • 460 mm

  • Total height

  • 2.150 mm

Design

  • Weight approx.

  • 200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

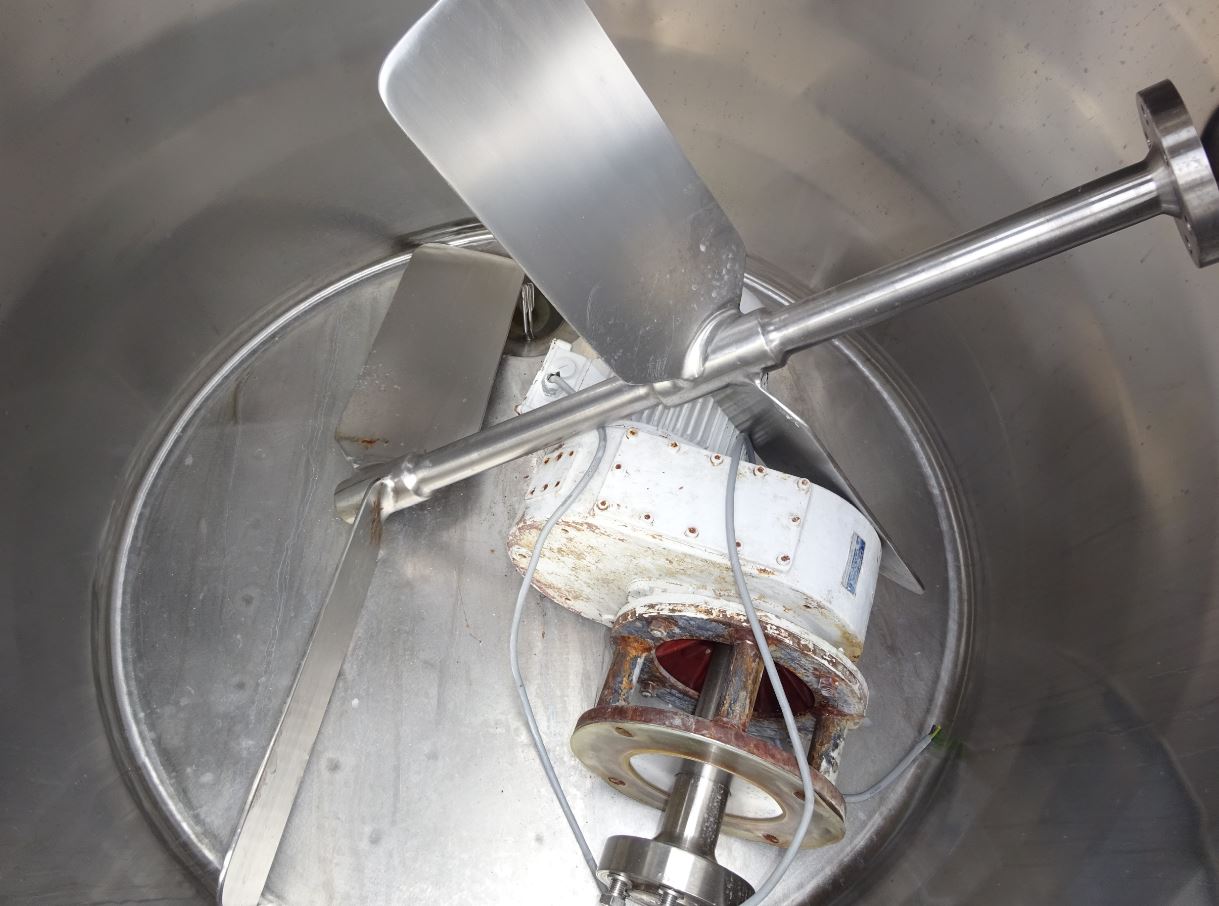

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

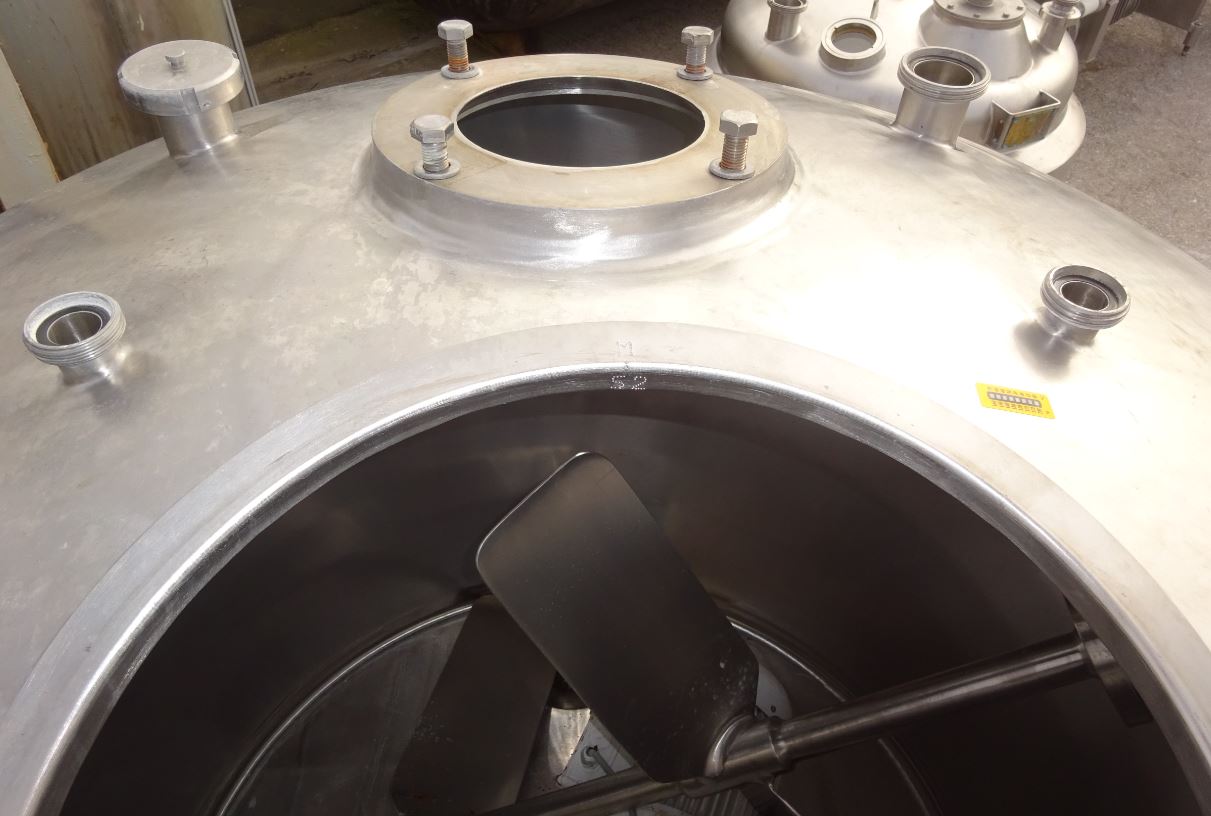

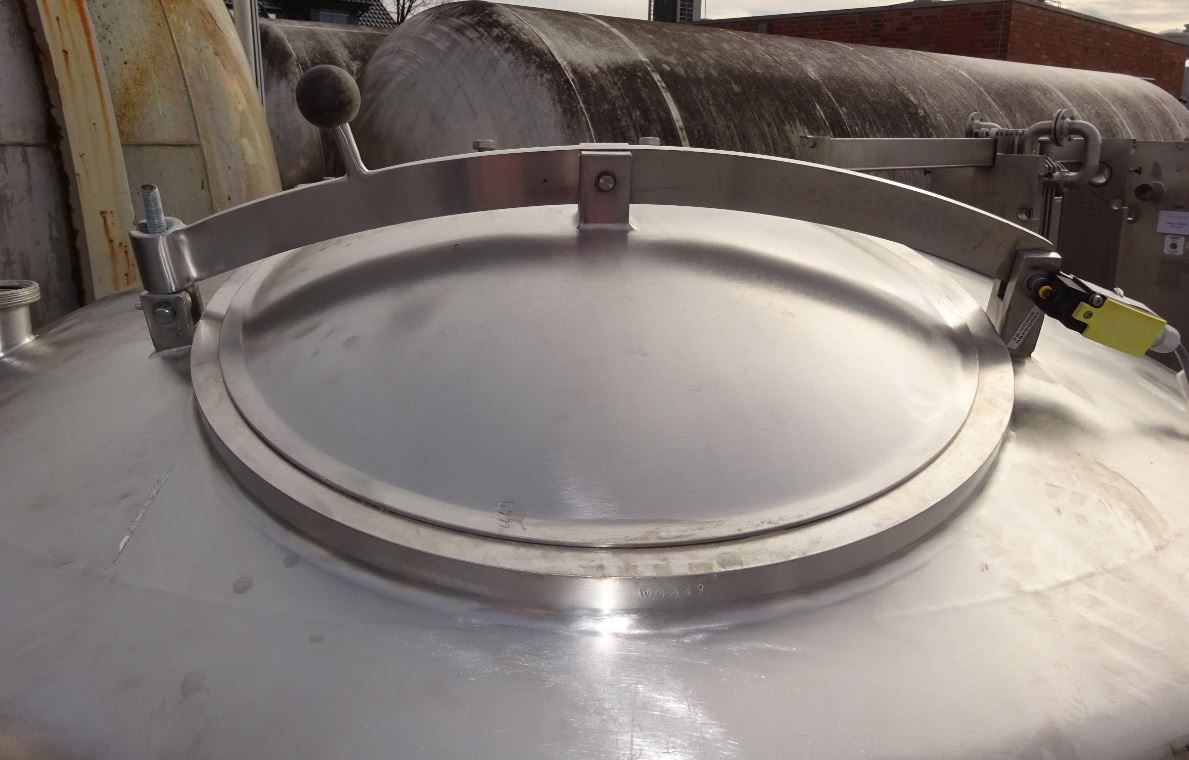

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

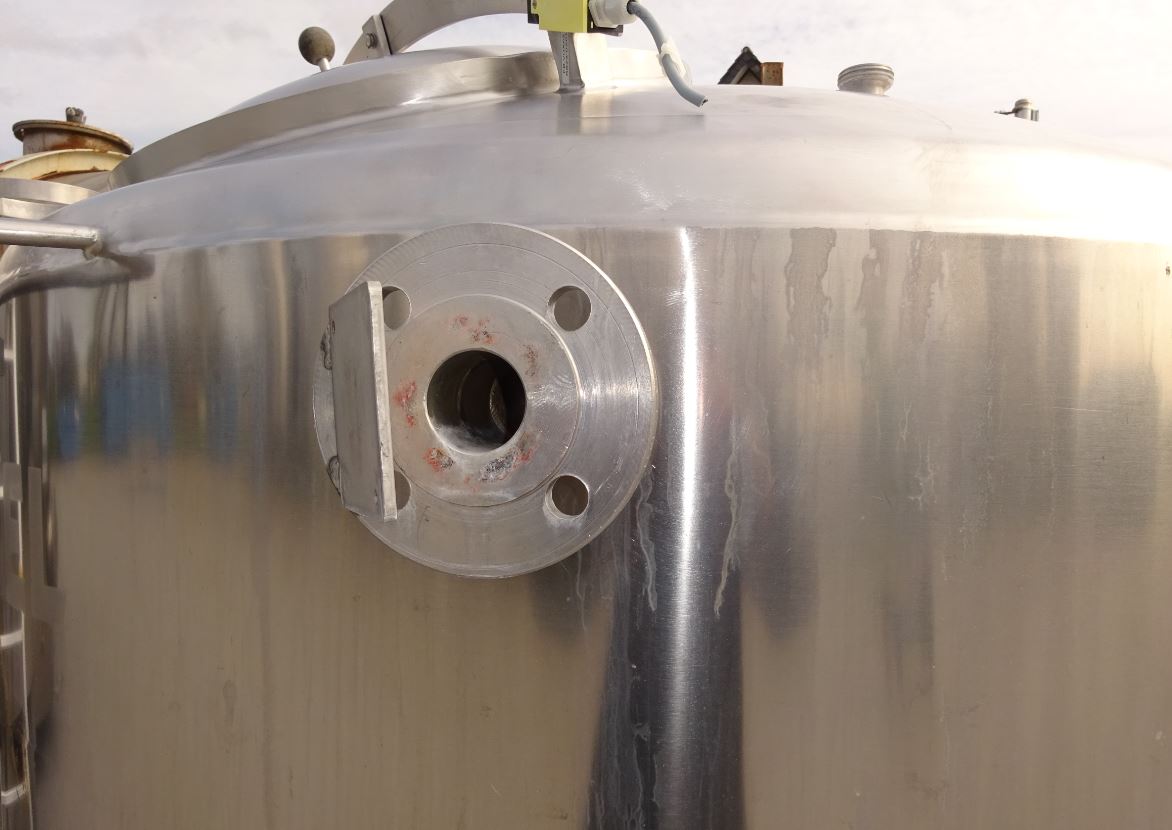

  • Nozzles/connectors in head

  • 2xDN32 3xDN50 (piece)

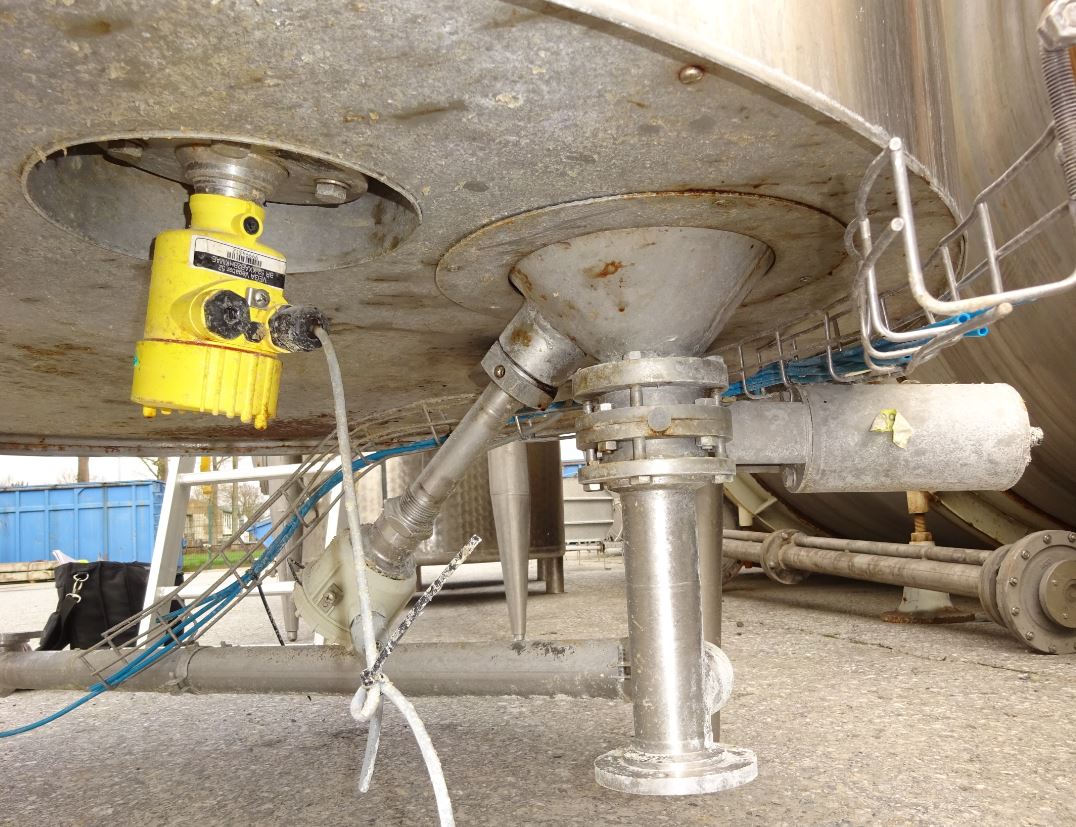

  • Outlet nozzle

  • 50

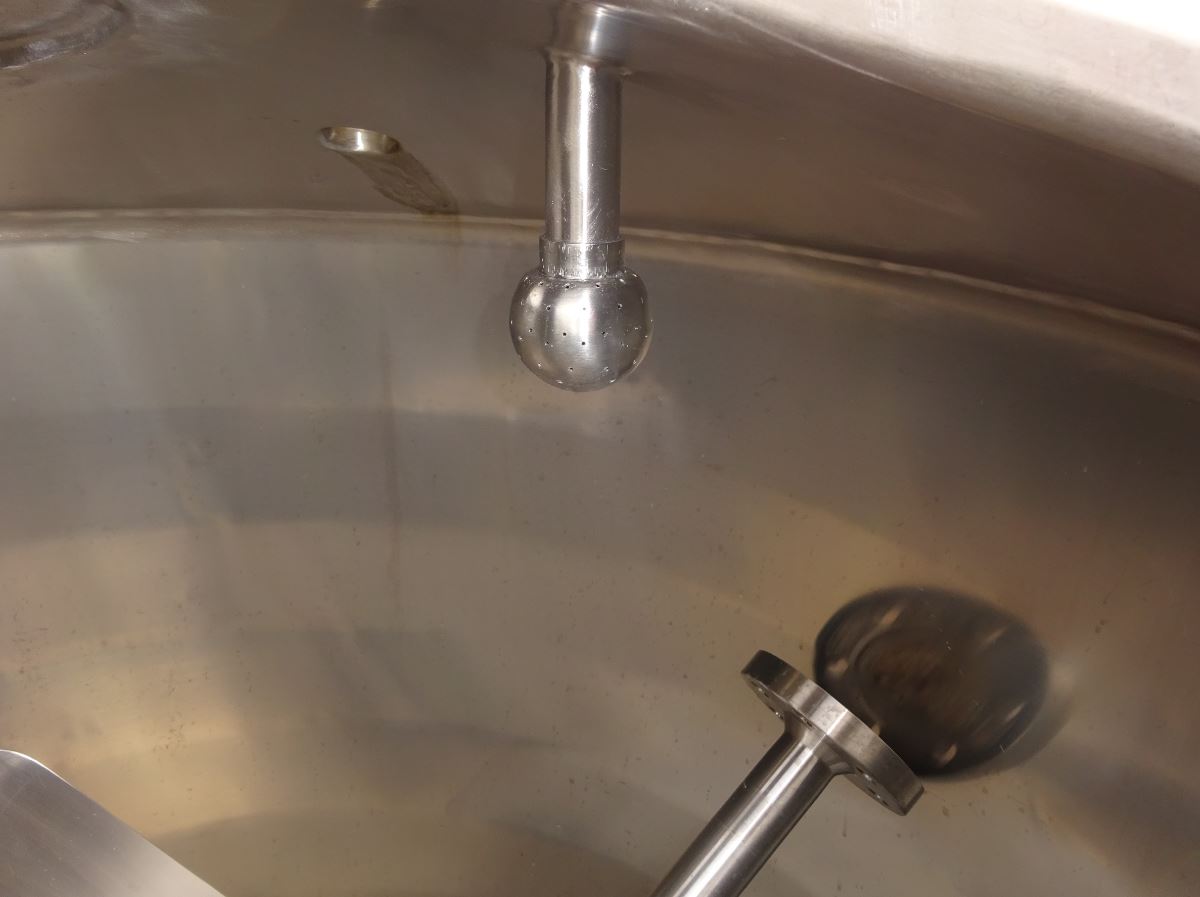

  • Cleaning/CIP nozzle

  • in head

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Mixing tank, Process tank, Boiling tank,

Agriculture: Storage tank, Mixing tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Mixing tank, Process tank, Cooling tank,
