Product no. M-2494

Container 1.000 liters made of V4A isolated, used, standing

EUR 2.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

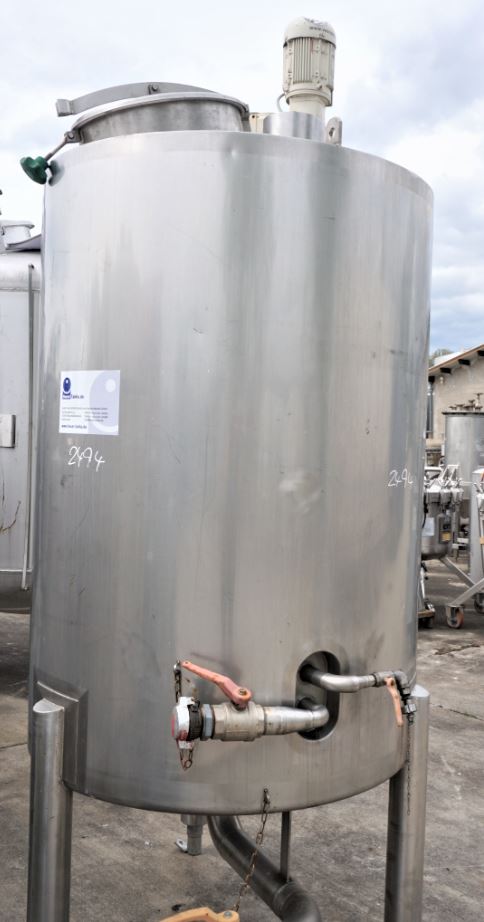

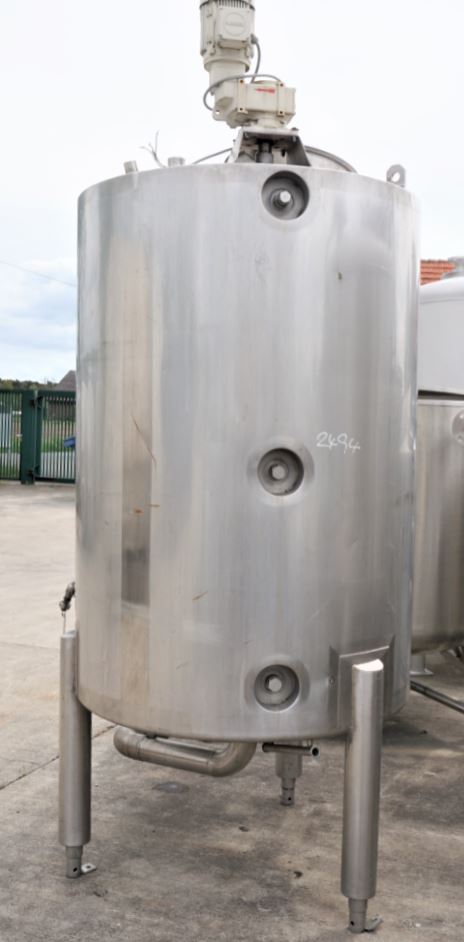

Container 1.000 liters made of V4A isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 1,000.00 litres. The diameter inside includes 950 mm.  Container 1.000 liters made of V4A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 1.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 950 mm

  • External diameter

  • 1.070 mm

  • Cyl. height

  • 1.500 mm

  • Foot height

  • 600 mm

  • Total height

  • 2.700 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

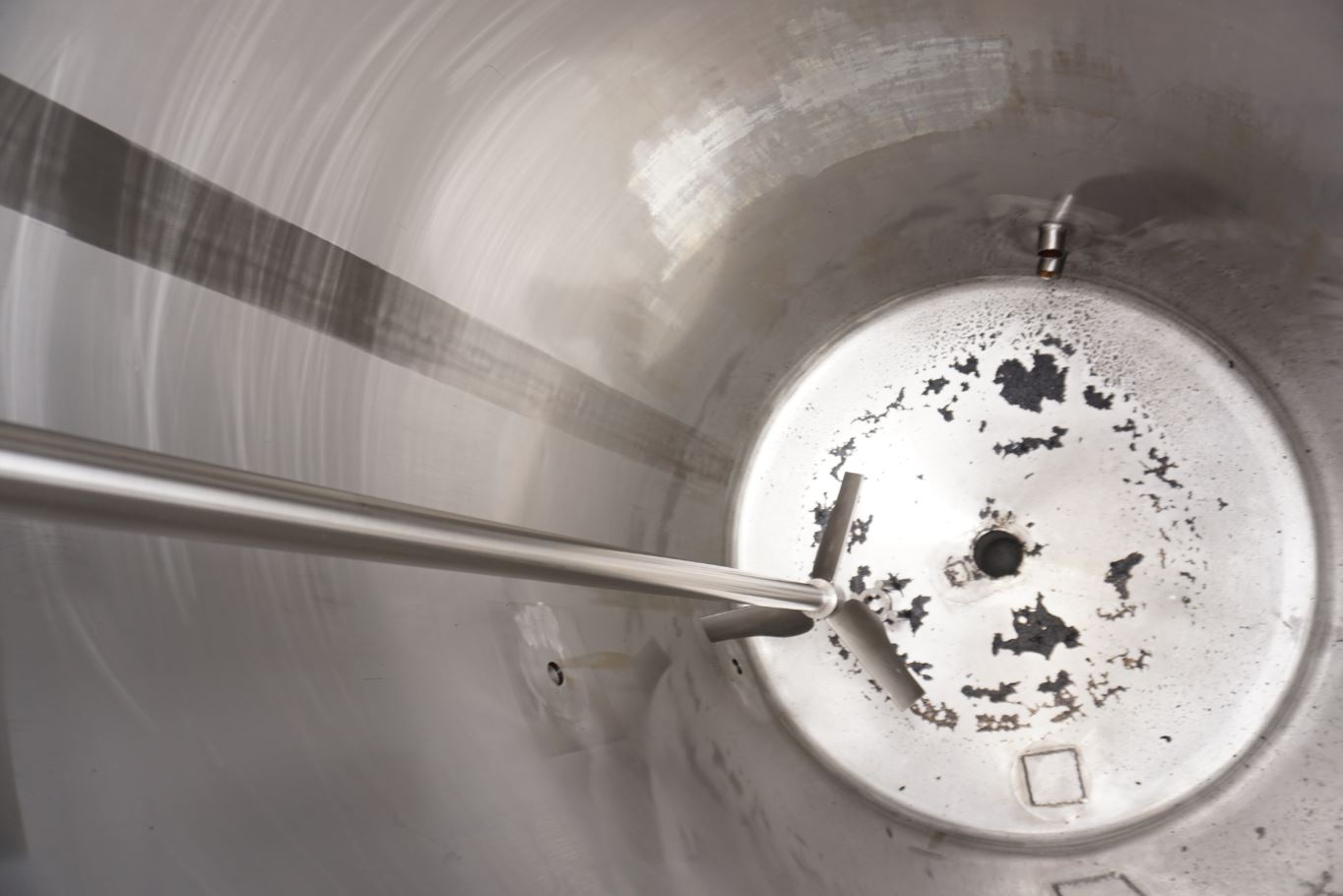

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

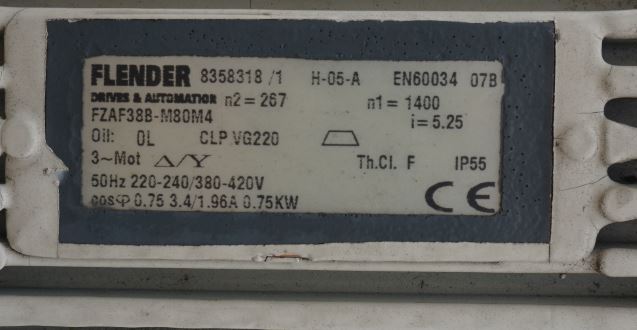

  • Agitator manufacturer

  • Flender

  • Agitator 1 - Output

  • 0,75 kW

  • Agitator 1 - RPM

  • 267 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

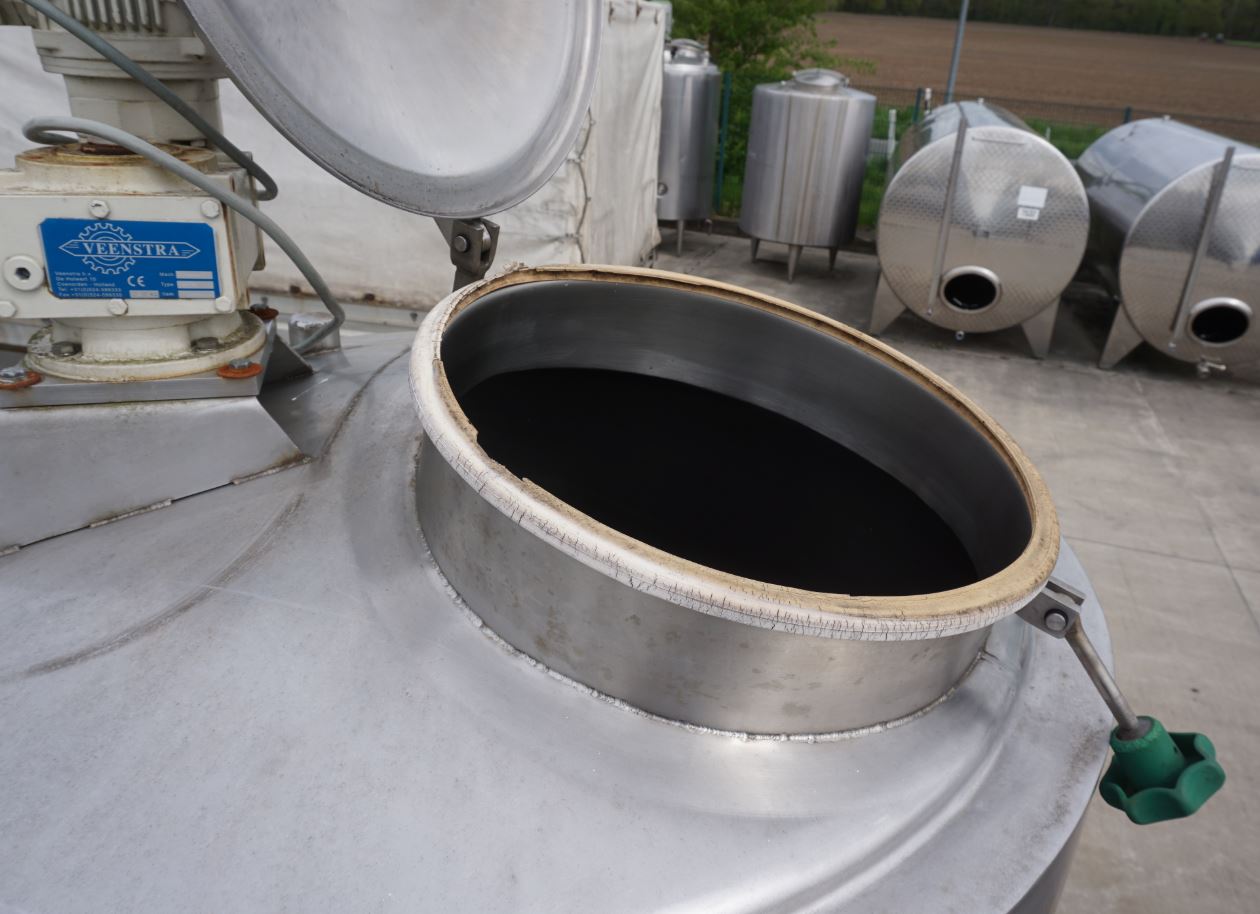

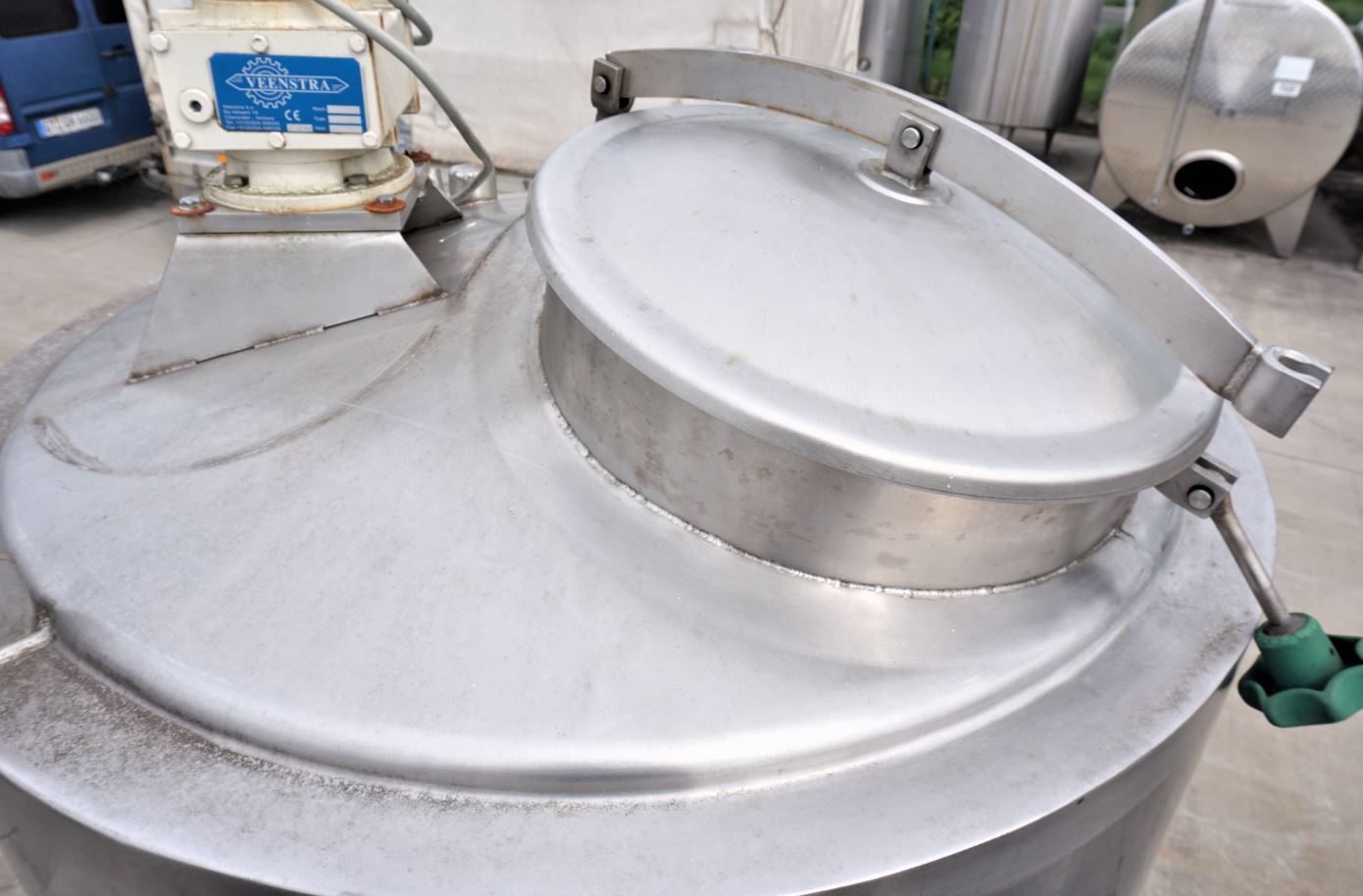

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

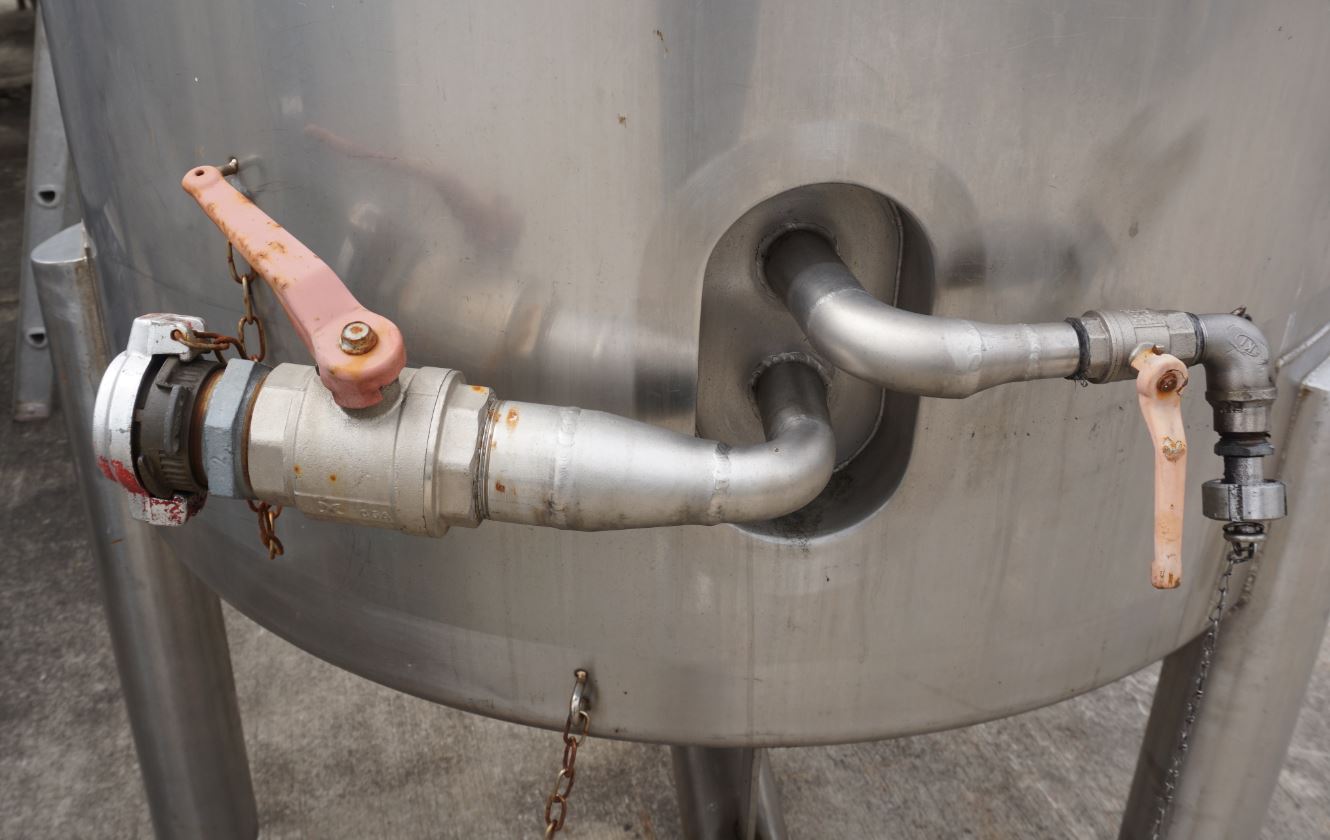

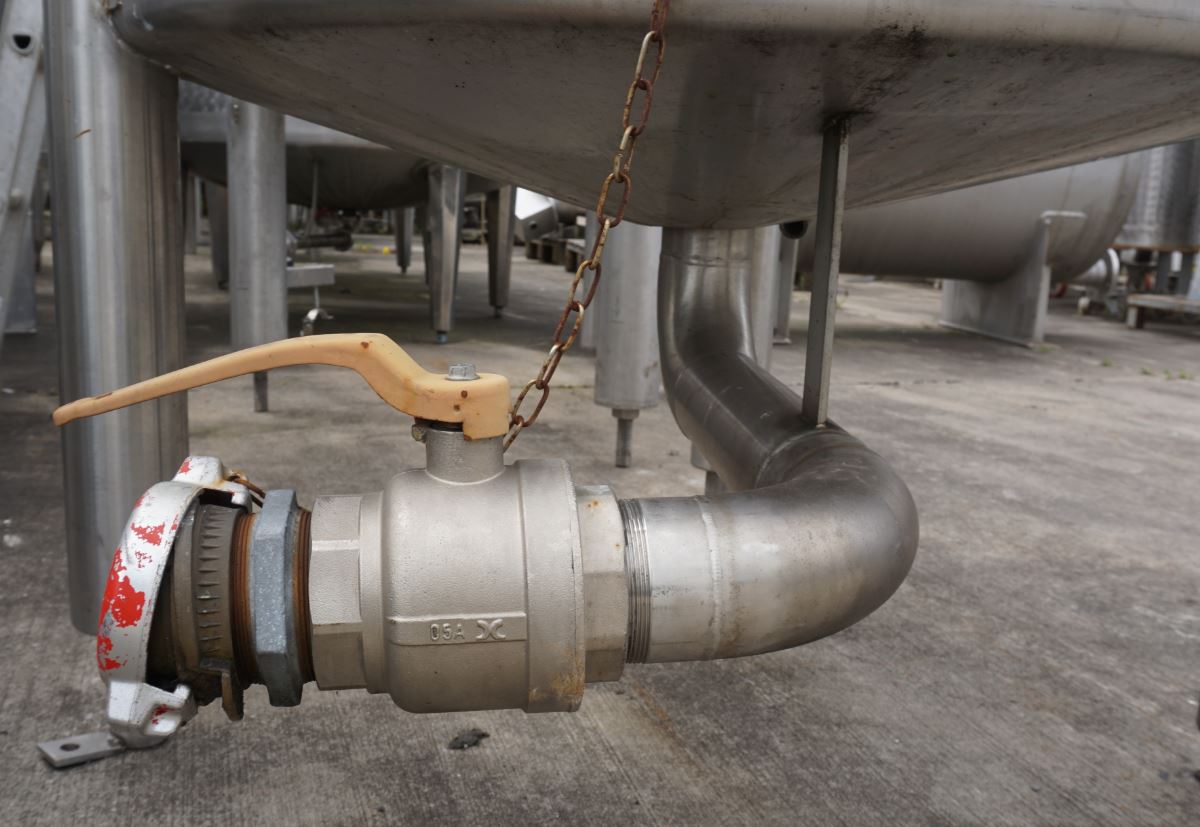

  • Outlet nozzle

  • 80

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Wine tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Settling tank, Sprinkler tank, Mixing tank,
