Product no. M-1966

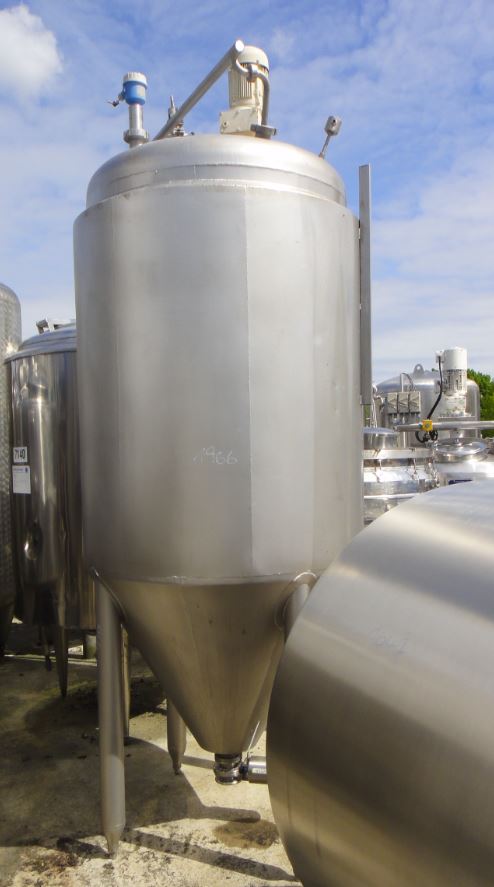

Container 1.000 liters made of V2A, used, isolated, standing

EUR 3.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,000.00 litres. The diameter inside includes 1,100 mm.  Container 1.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 1.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.100 mm

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 1.300 mm

  • Foot height

  • 1.100 mm

  • Outlet height

  • 340 mm

  • Total height

  • 2.900 mm

Design

  • Weight approx.

  • 350,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Cone

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,5 bar

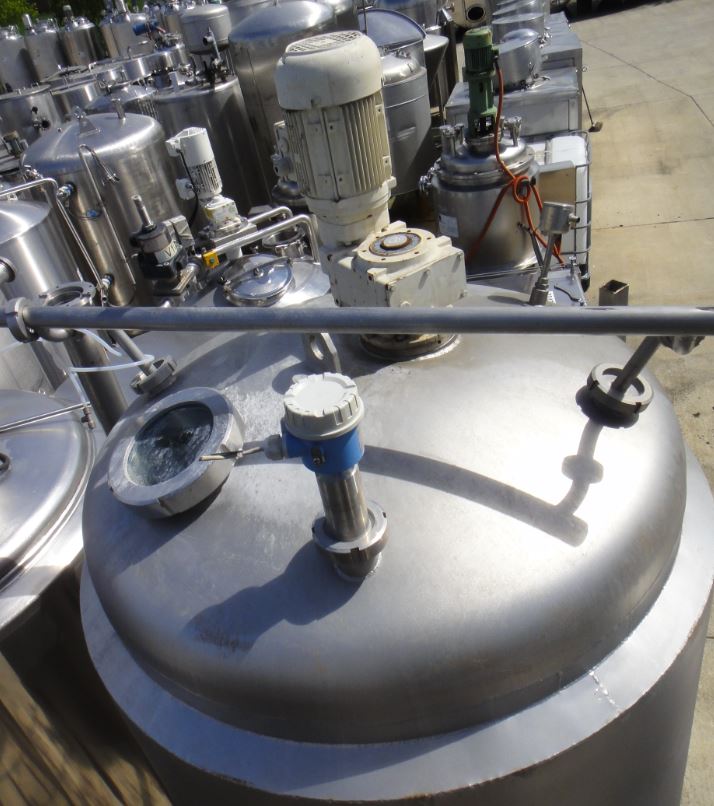

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in head

  • 2xDN50 (piece)

  • Nozzles/connectors in floor

  • 1xDN65 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

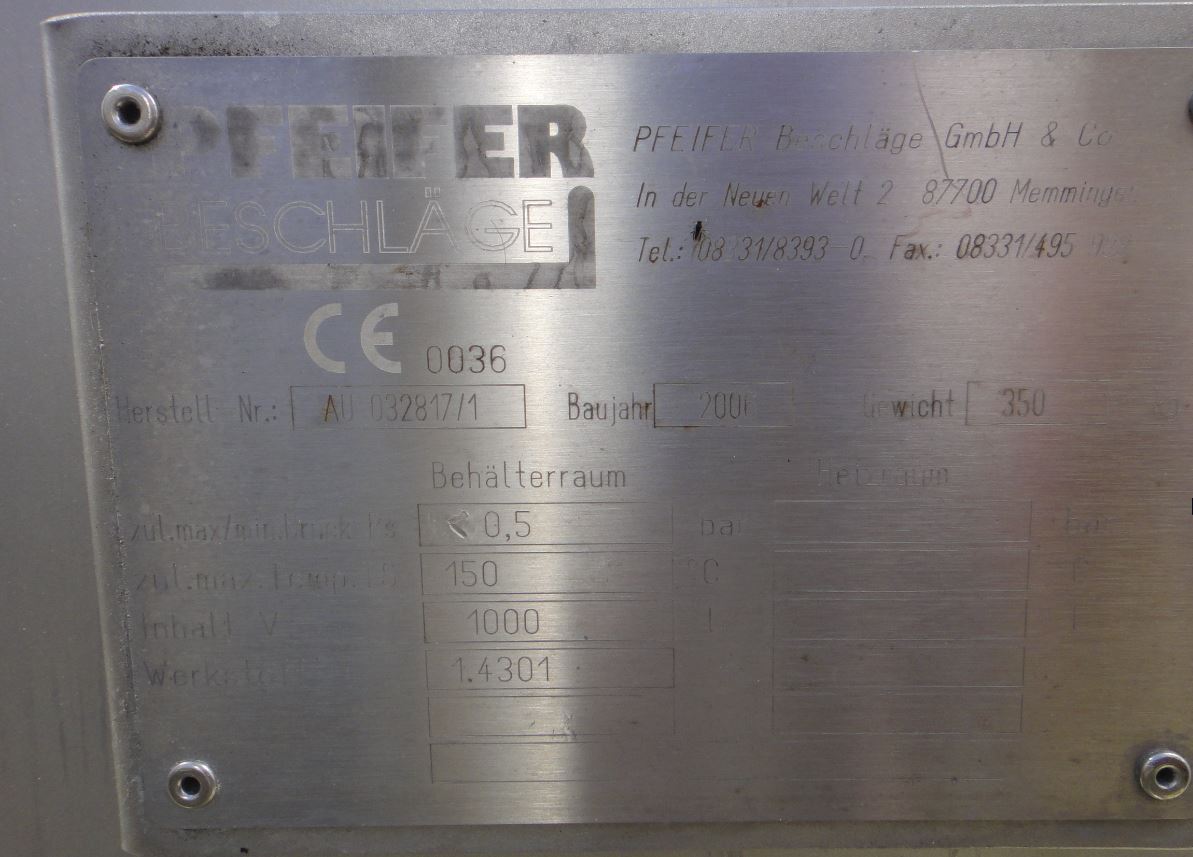

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Flour silo, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Fermentation tank, CIP tank,
