Product no. M-2360

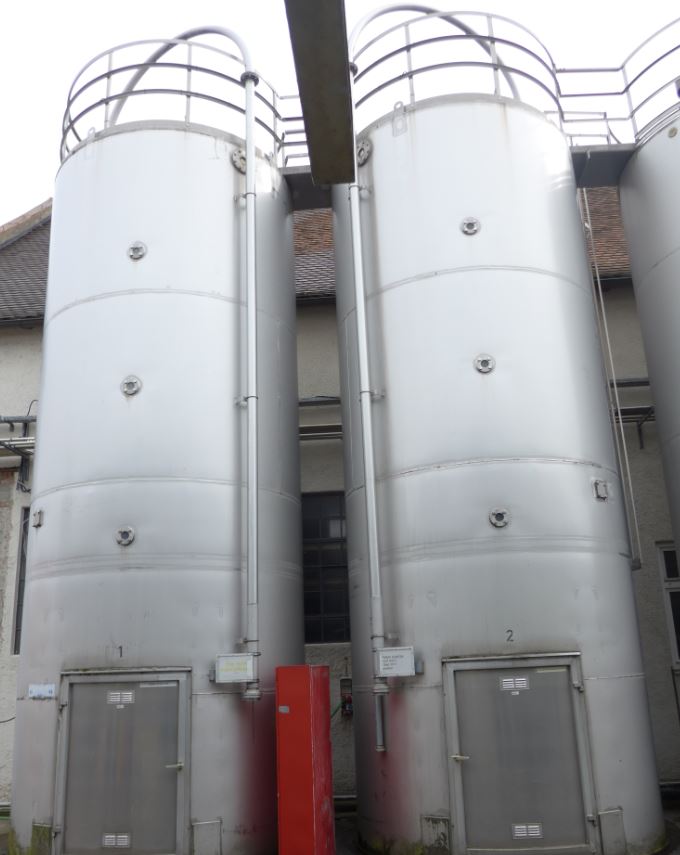

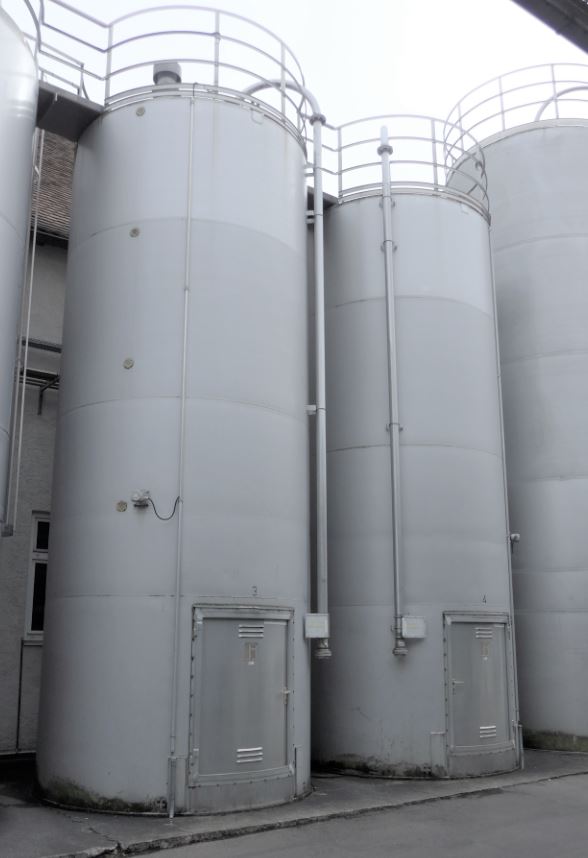

Silo 40.000 liters made of V2A, standing

EUR 19.000,00

add. 19 % VAT excl. shipping costs


Volume approx. 40,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Silo 40.000 liters made of V2A consists of the material 1.4301(AISI304) V2A. The volume is approx. 40,000.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 40.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Waeschle

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.000 mm

  • Total height

  • 9.000 mm

Design

  • Weight approx.

  • 3.500,00 kg

  • Weight per unit volume approx.

  • 700,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

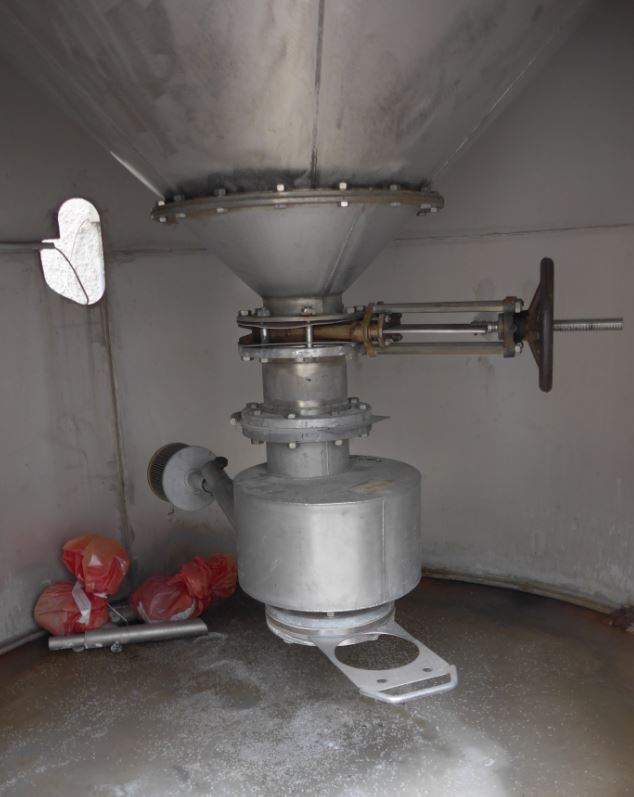

  • Floor type

  • Cone

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

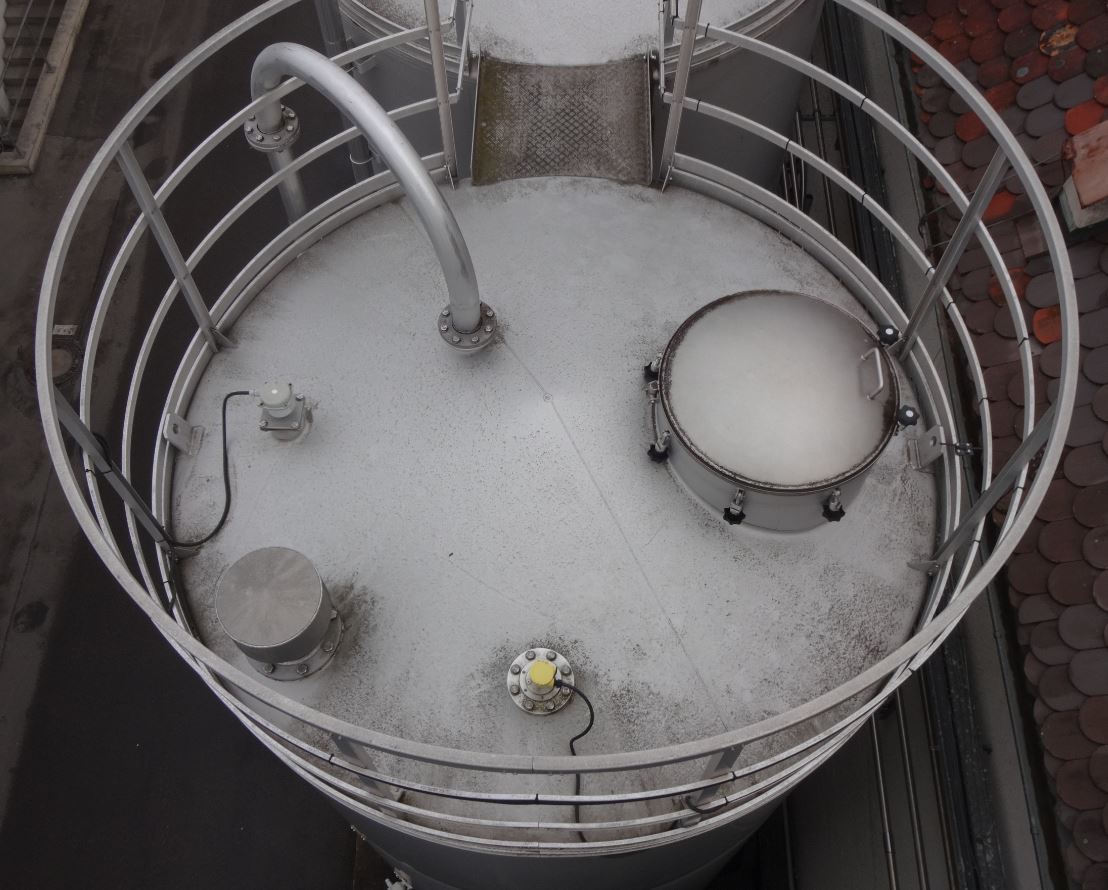

  • Manway position

  • In head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

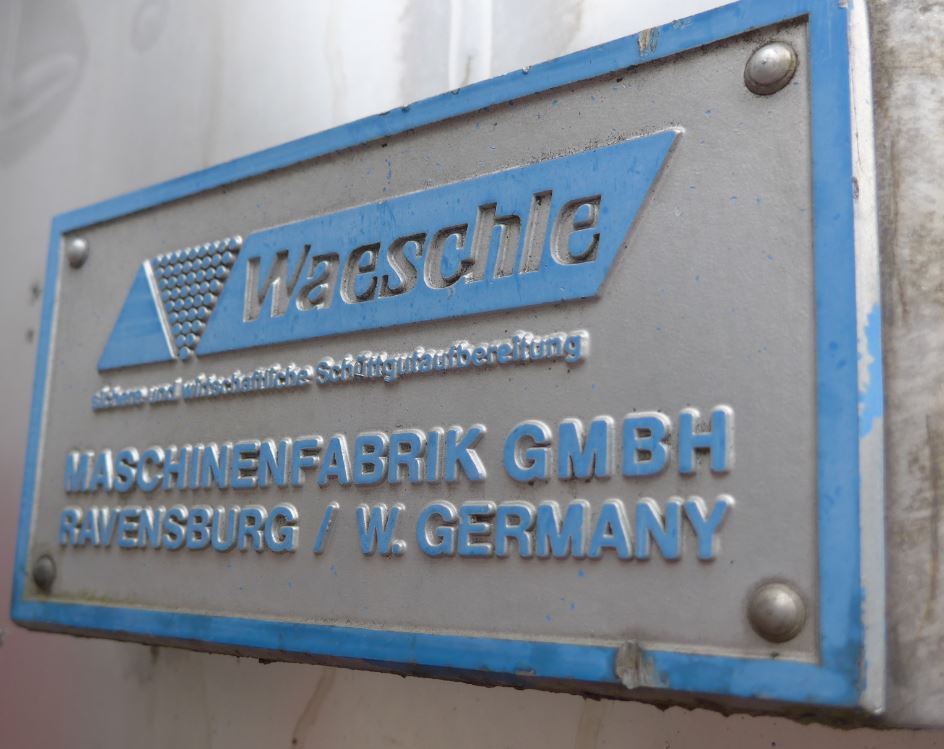

  • Nameplate

Technical documentation

  • Technical documentation

  • None

This product is suitable for use as:

Foodstuffs: Grain silo, Flour silo,

Agriculture: Chute silo, Silo, Storage tank,

Chemistry and pharmaceuticals : Storage tank,
