Product no. M-2446

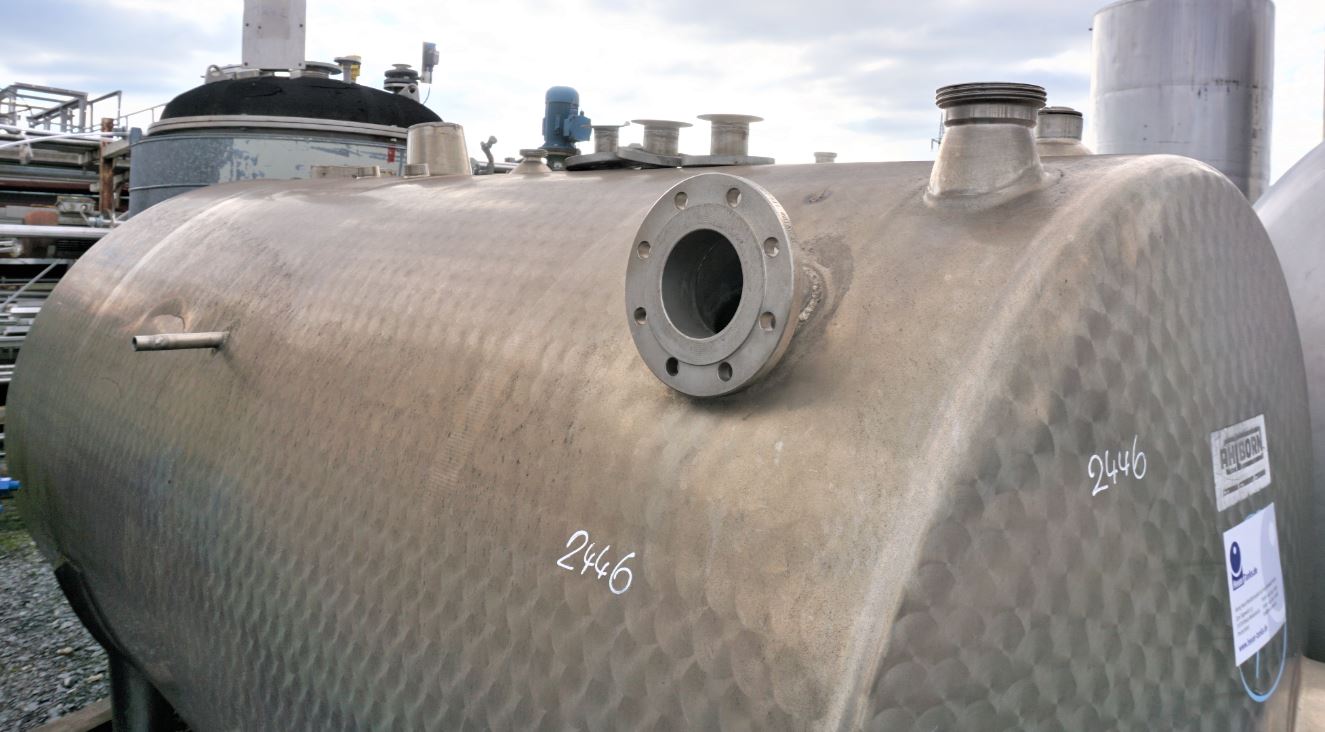

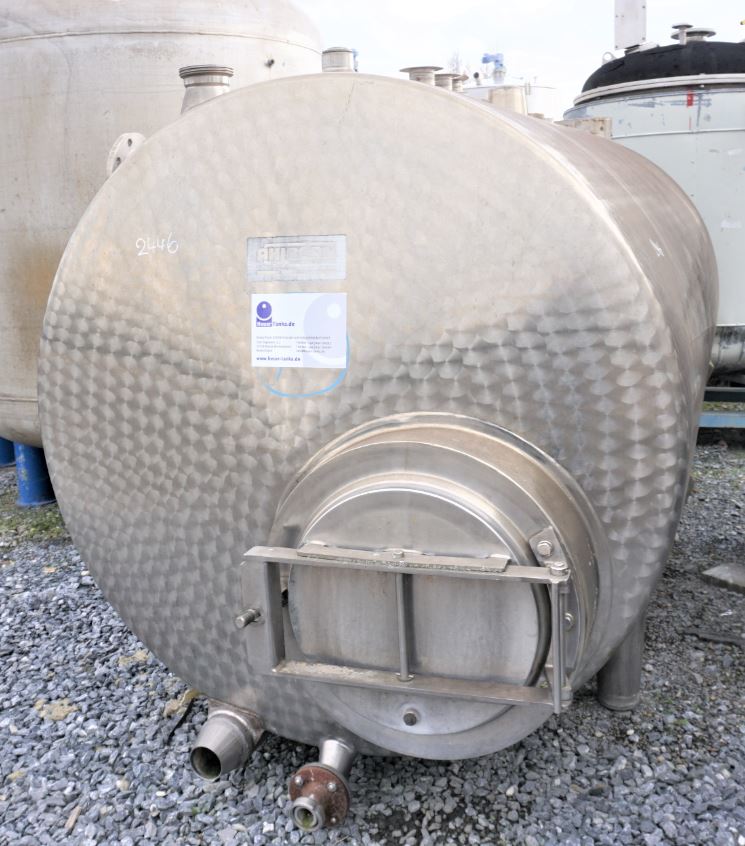

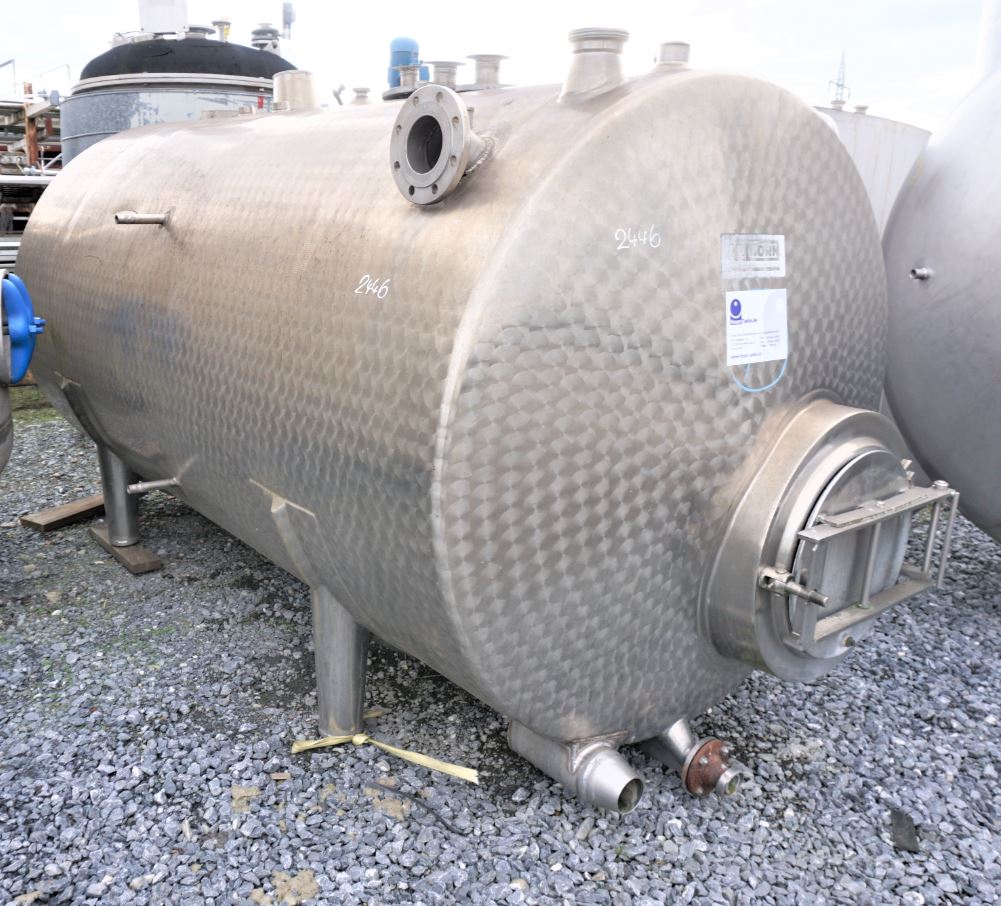

Container 5.300 liters made of V2A single-walled, horizontal
EUR 3.500,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,300.00 litres
Product description
Container 5.300 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,300.00 litres. Container 5.300 liters made of V2A single-walled was last used in the following area: CIP/water tank. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
5.300,00 litres
Structure
Horizontal
Condition
Used
Dimensions approx.
External diameter
1.500 mm
Cyl. length
2.800 mm
Outlet height
200 mm
Total height
2.000 mm
Total length
3.400 mm
Design
Weight approx.
600,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no

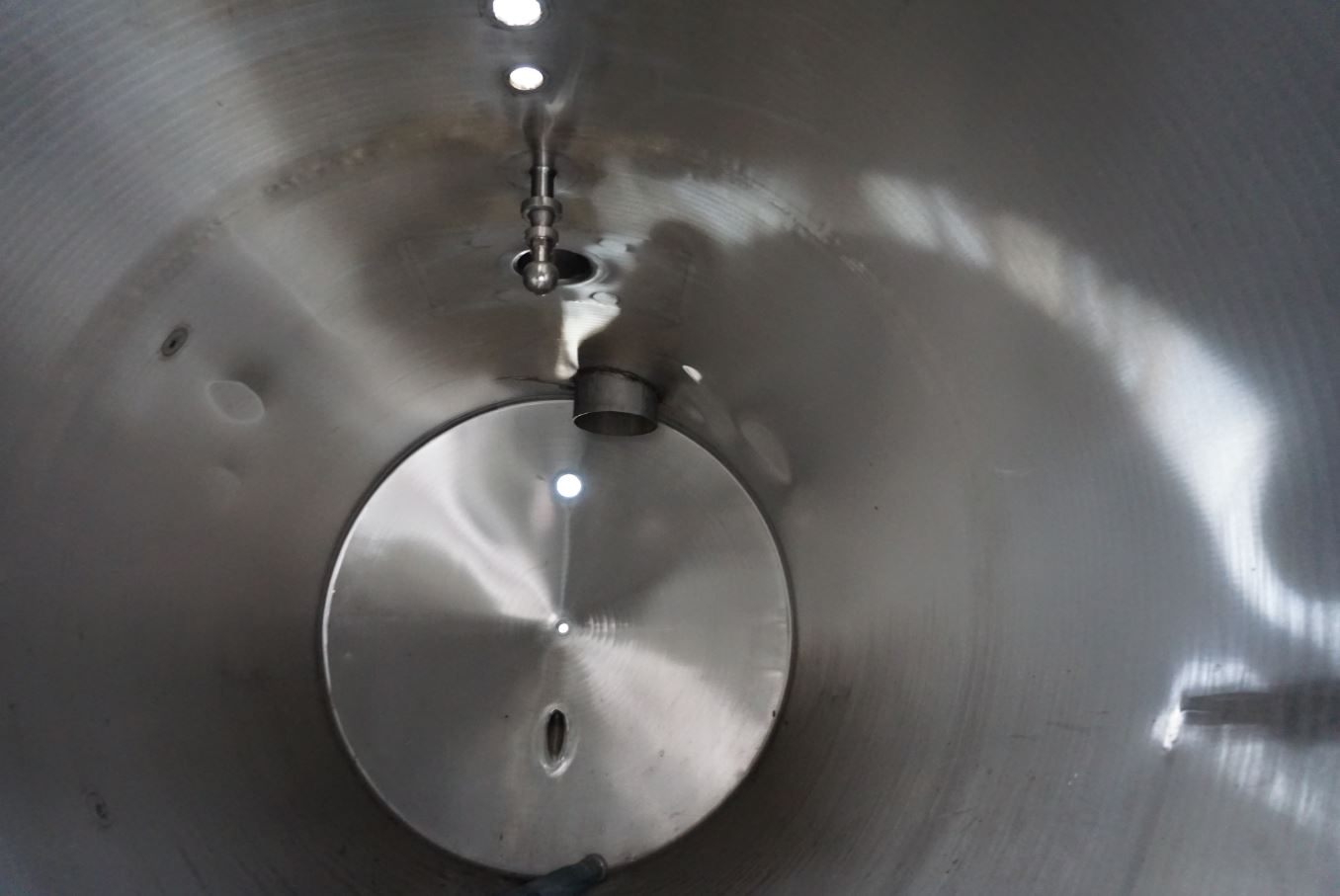

Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings

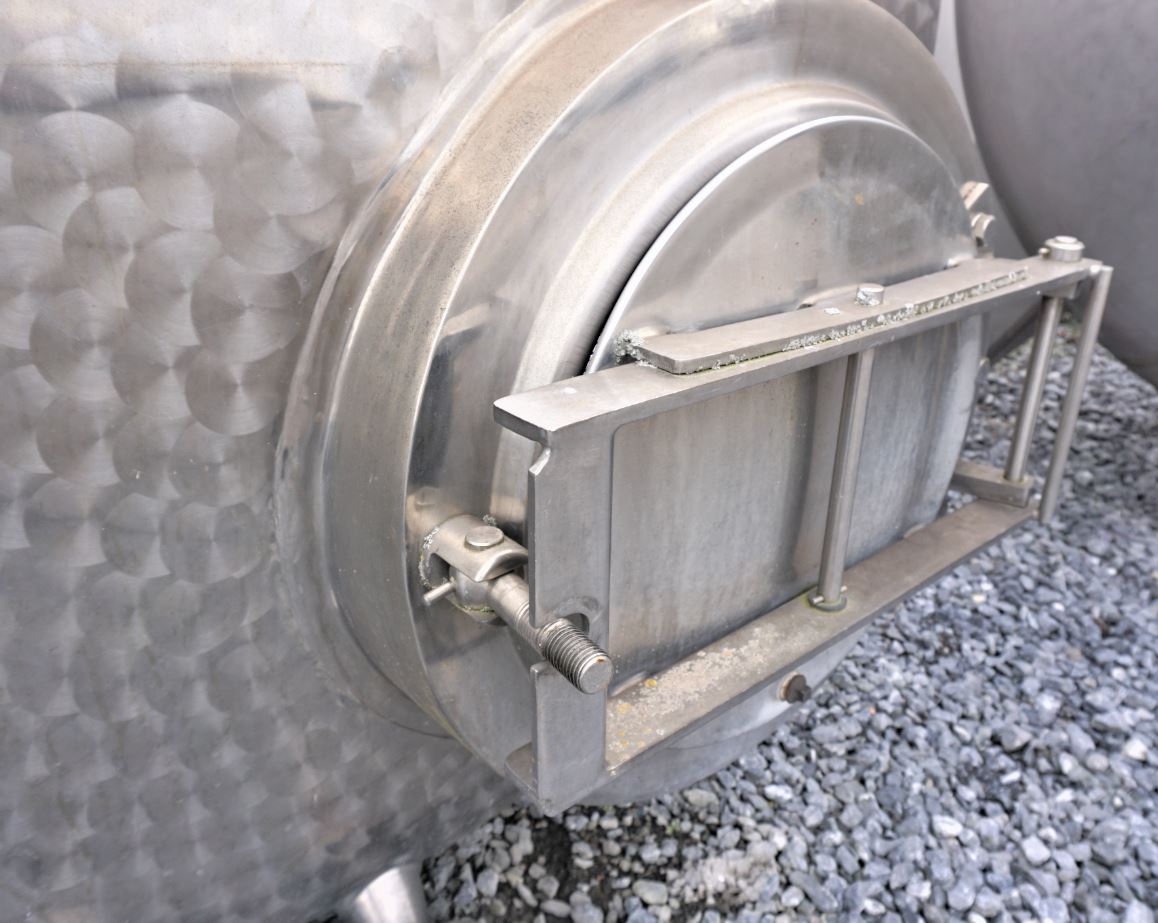

Manway position
Front face
Nozzles/connectors in shell
2xDN100 (piece)

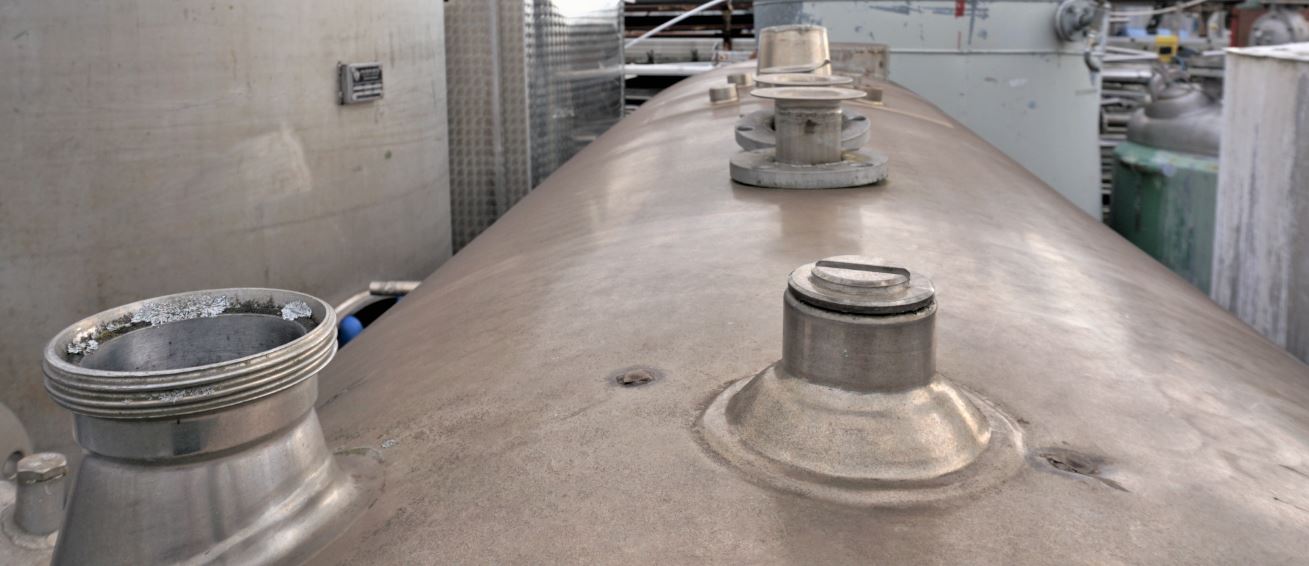

Nozzles/connectors in head
1xDN100 2xDN65 1xDN50 1xDN300 (piece)

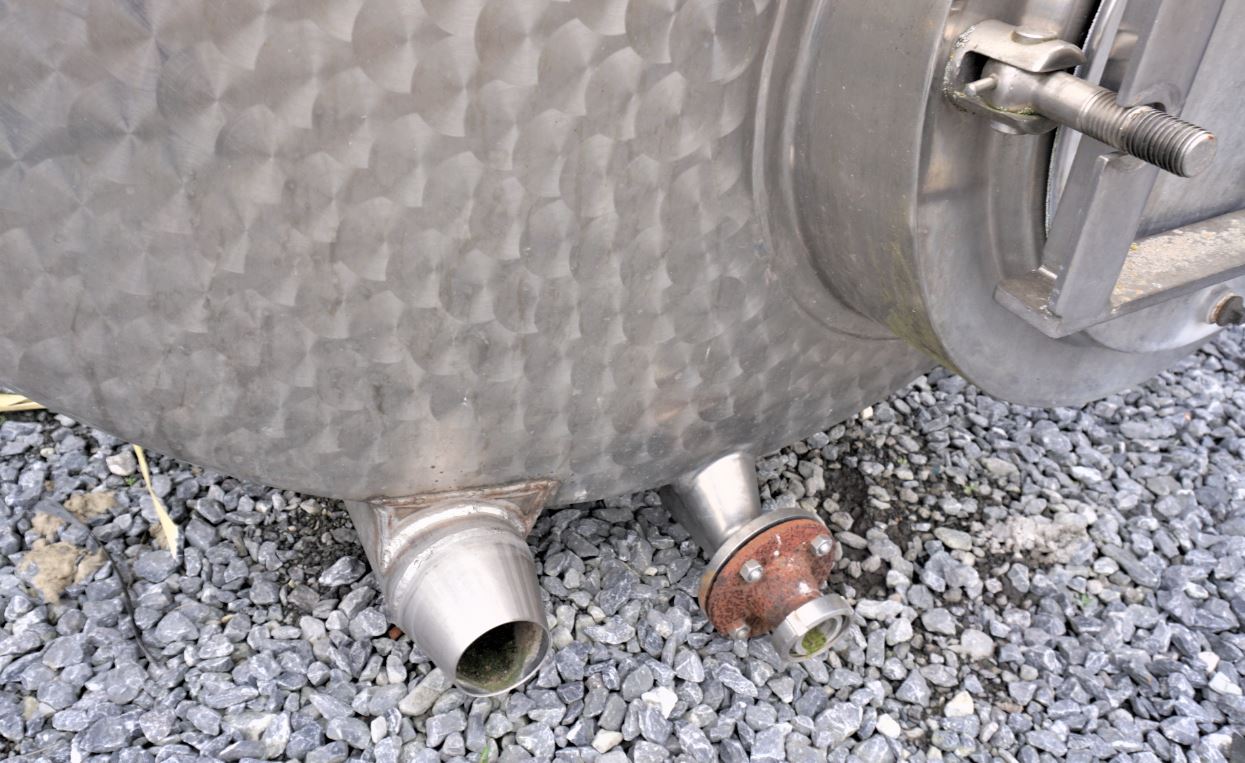

Outlet nozzle
50
Technical documentation
Technical documentation
None
Other
Note

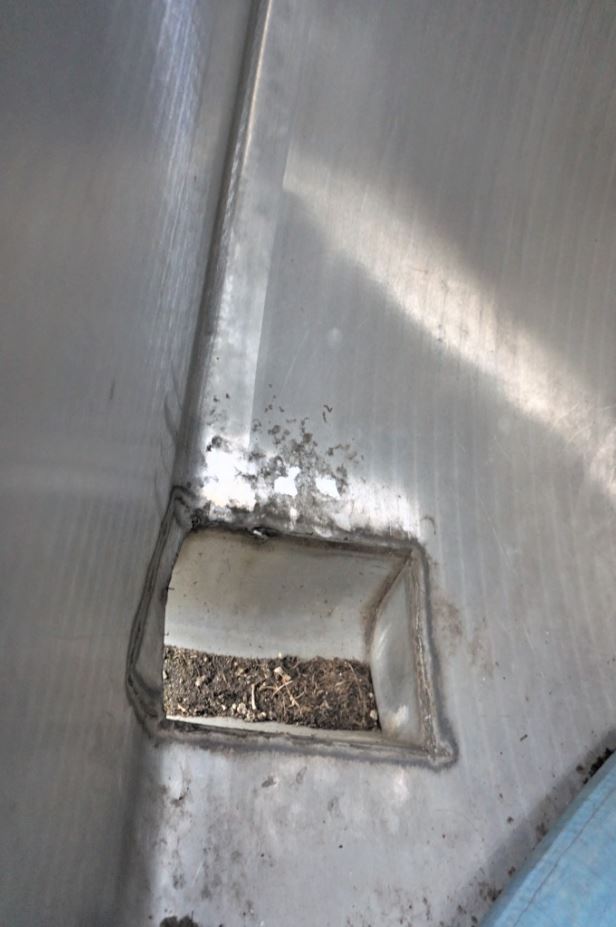

seitlich im Mantel eine kleine Beule
Last usage
CIP/water tank
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Storage tank, Buffer tank, Pre-buffer tank, CIP tank,
Agriculture: Storage tank, Buffer tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, CIP tank,
