Product no. M-2465

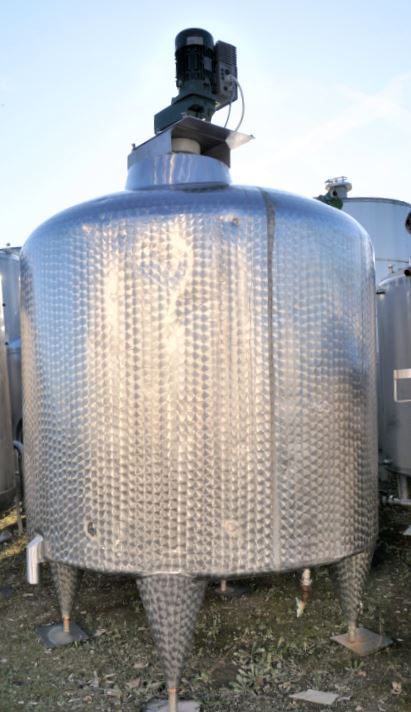

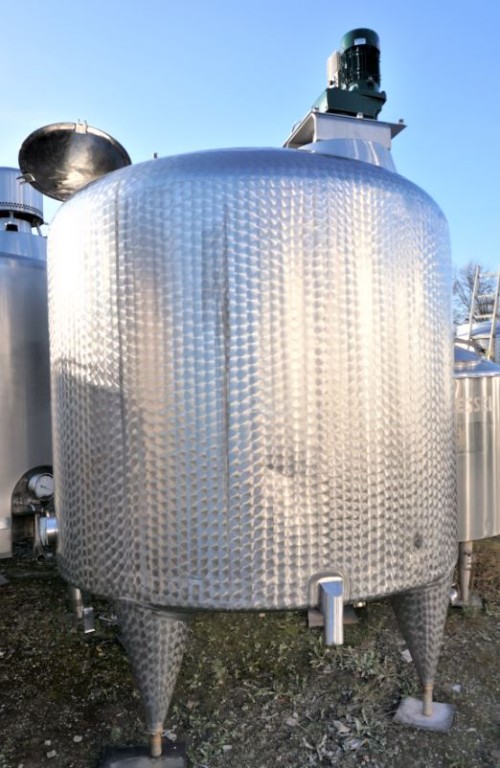

Container 5.000 liters made of V2A single-walled, standing
EUR 5.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. Container 5.000 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
5.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
2.050 mm
Cyl. height
1.550 mm
Foot height
600 mm
Total height
3.300 mm
Design
Weight approx.
800,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Head design
Dished

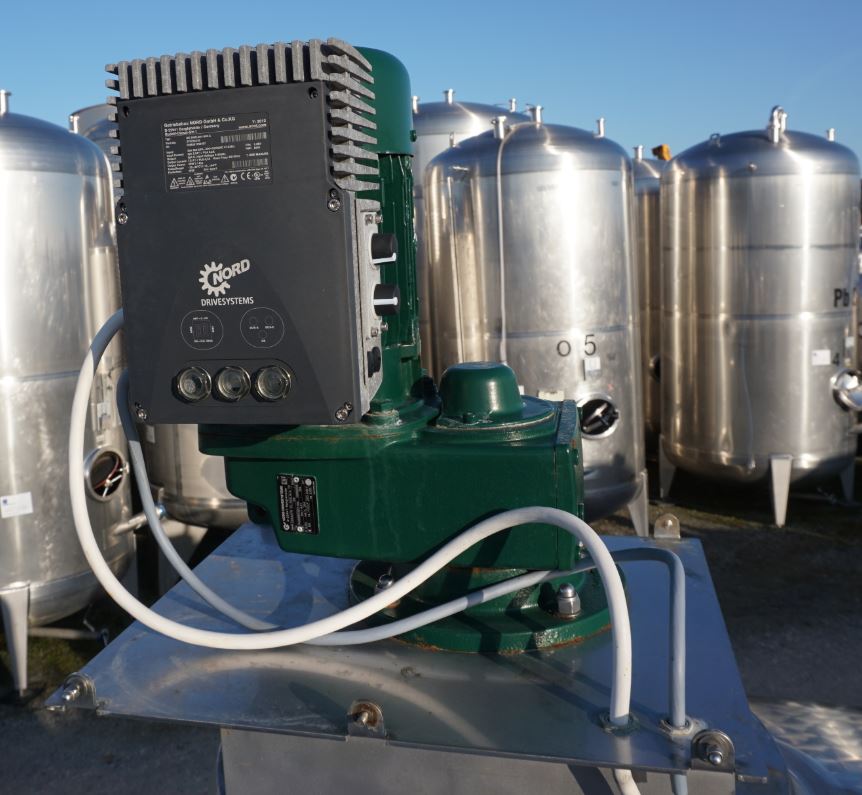

Agitator
Agitator quantity
1 (piece)

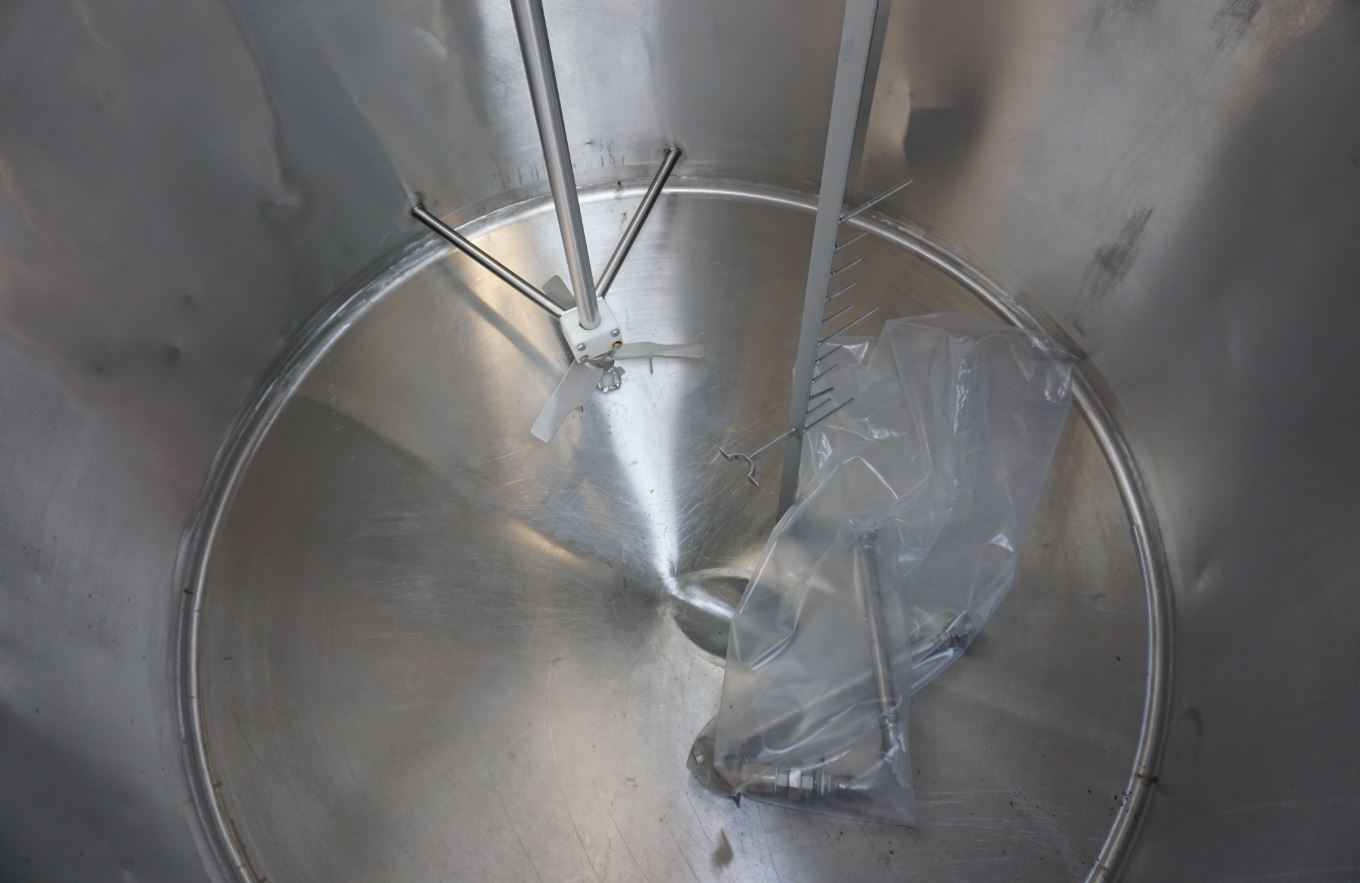

Agitator type
Propeller
Agitator position
Head off-centre

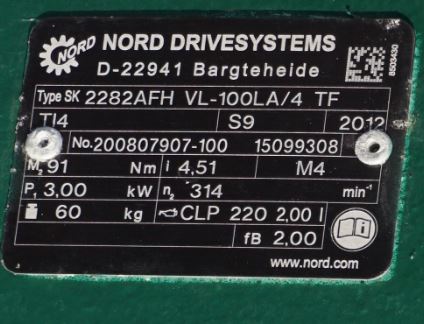

Agitator 1 - Output
3 kW
Agitator 1 - RPM
314 UpM
Supports
Supports

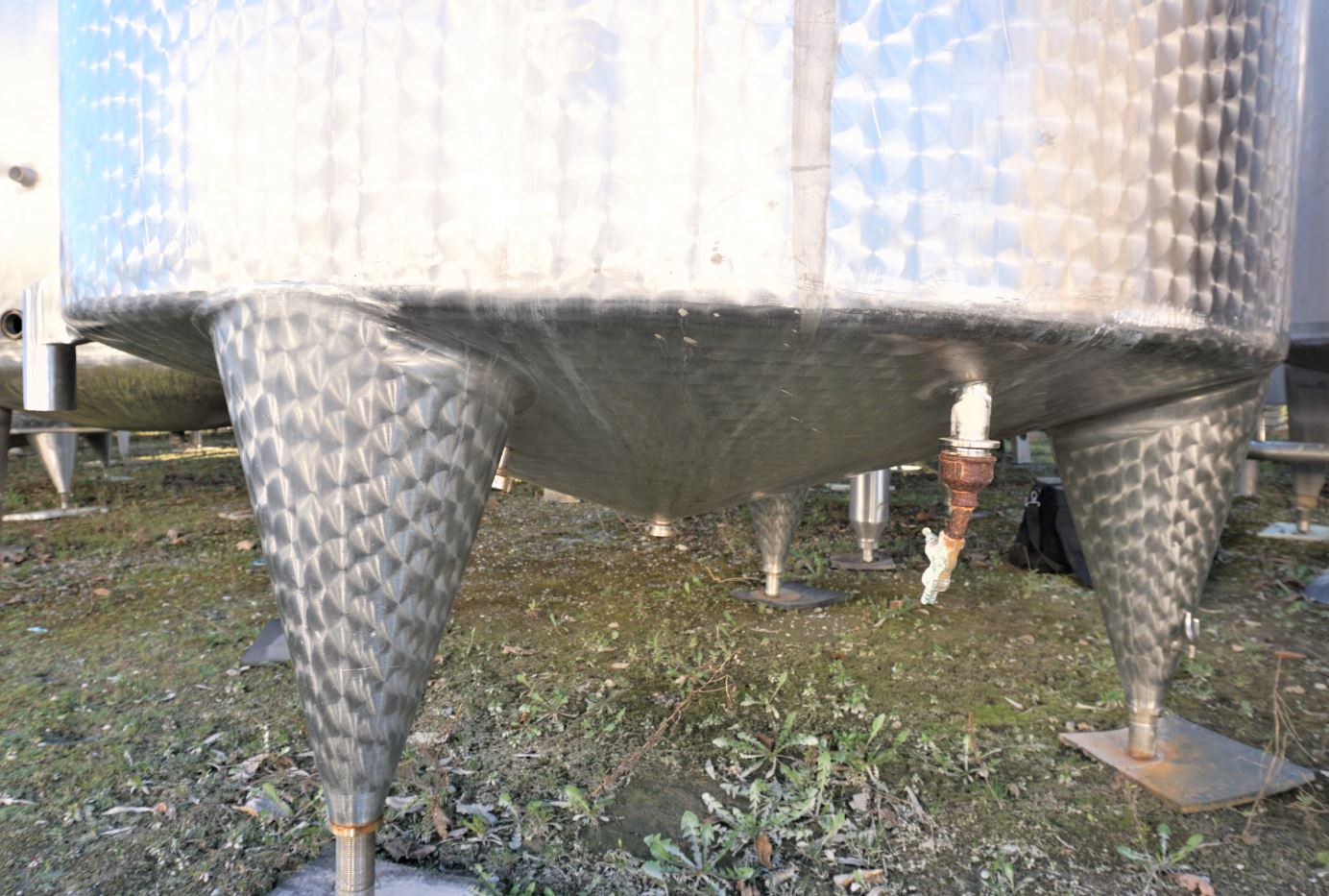

Stainless steel feet
Number of feet
3 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

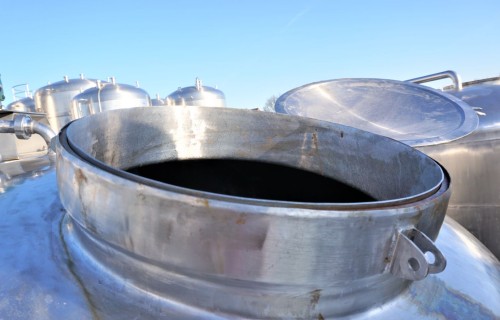

Manway position
In head
Outlet nozzle
50
Cleaning/CIP nozzle
in head
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
