Product no. M-2283

Container 457 liters made of V4A isolated, temperature-controllable, standing

EUR 4.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 457.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

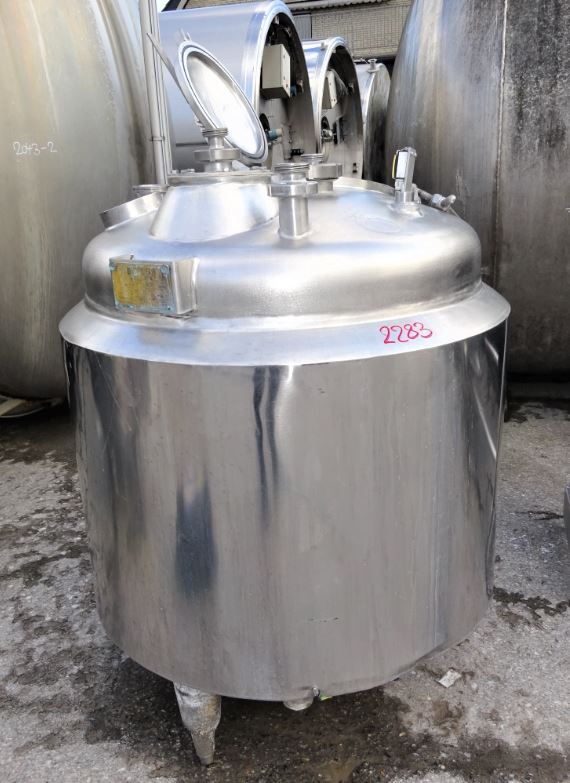

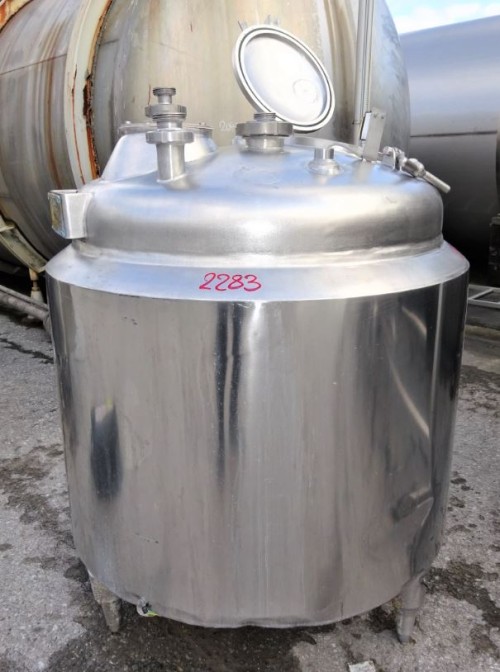

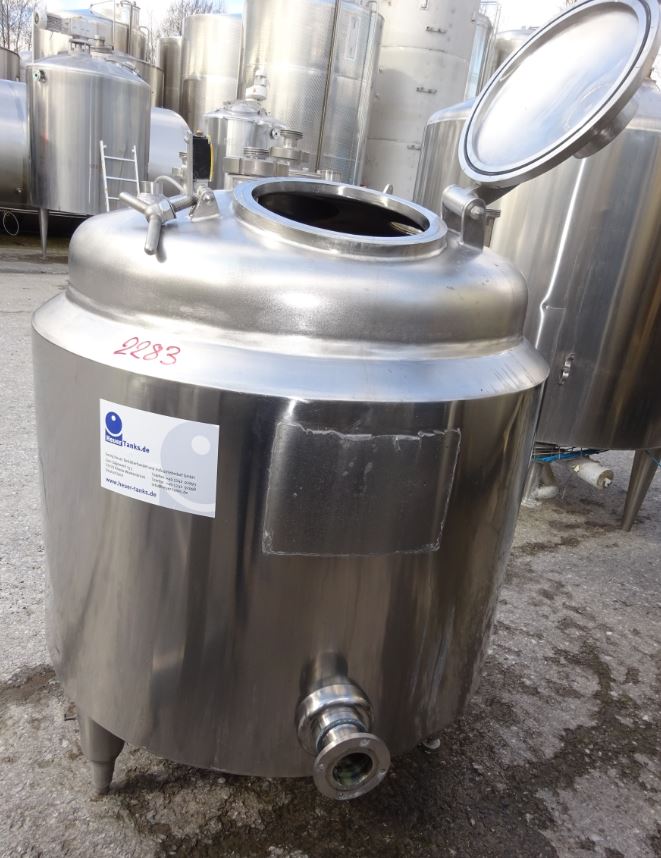

Container 457 liters made of V4A isolated, temperature-controllable consists of the material 1.4429(AISI316). The volume is approx. 457.00 litres. The diameter inside includes 900 mm.  Container 457 liters made of V4A isolated, temperature-controllable was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 457,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1972

  • Manufacturer

  • Diessel

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 900 mm

  • External diameter

  • 1.020 mm

  • Cyl. height

  • 730 mm

  • Foot height

  • 330 mm

  • Total height

  • 1.500 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 05 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 110 °C

  • Temperature control system operating pressure/pipe chamber

  • 6 bar

  • Temperature control system operating temperature/pipe chamber

  • 150 °C

  • Temperature control system/pipe chamber capacity

  • 41 litres

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

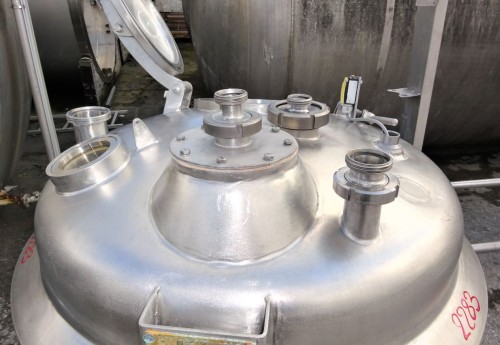

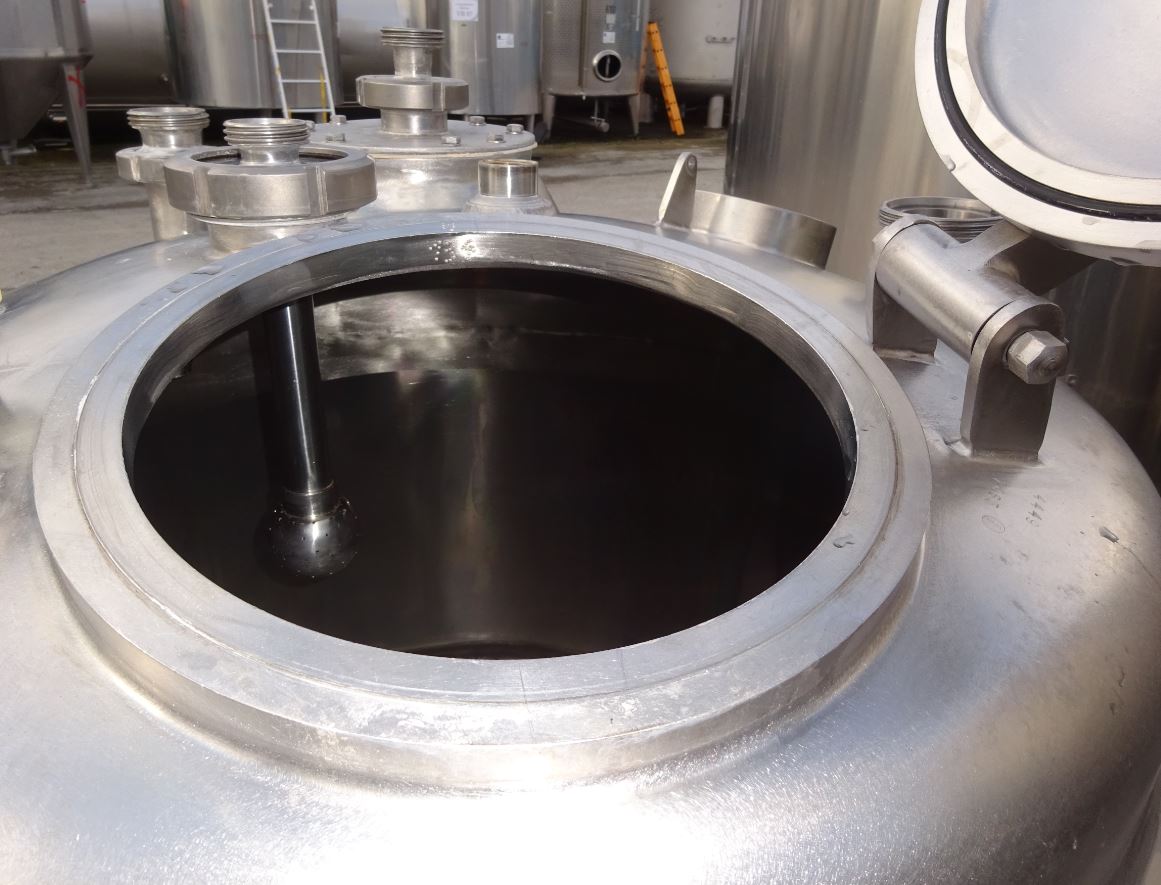

  • Manway 1 size

  • 300 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Screw thread

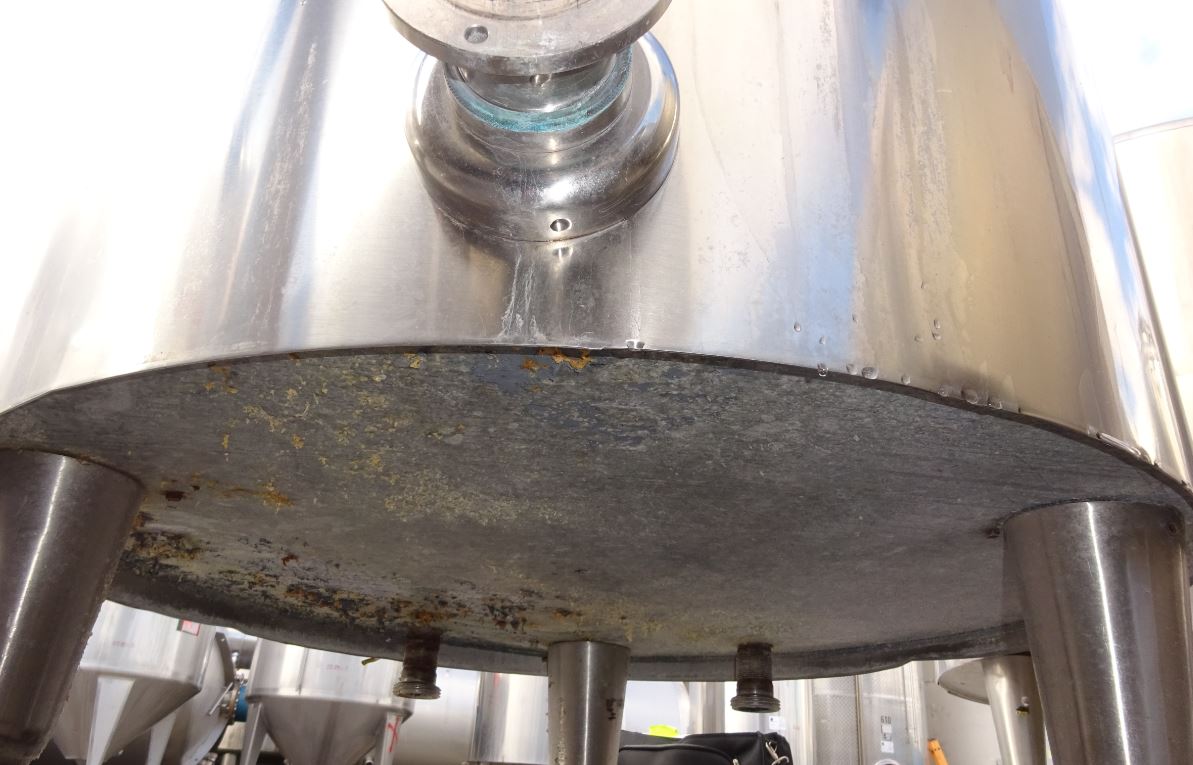

  • Nozzles/connectors in floor

  • 1xDN65 2xDN50 2x3/4" (piece)

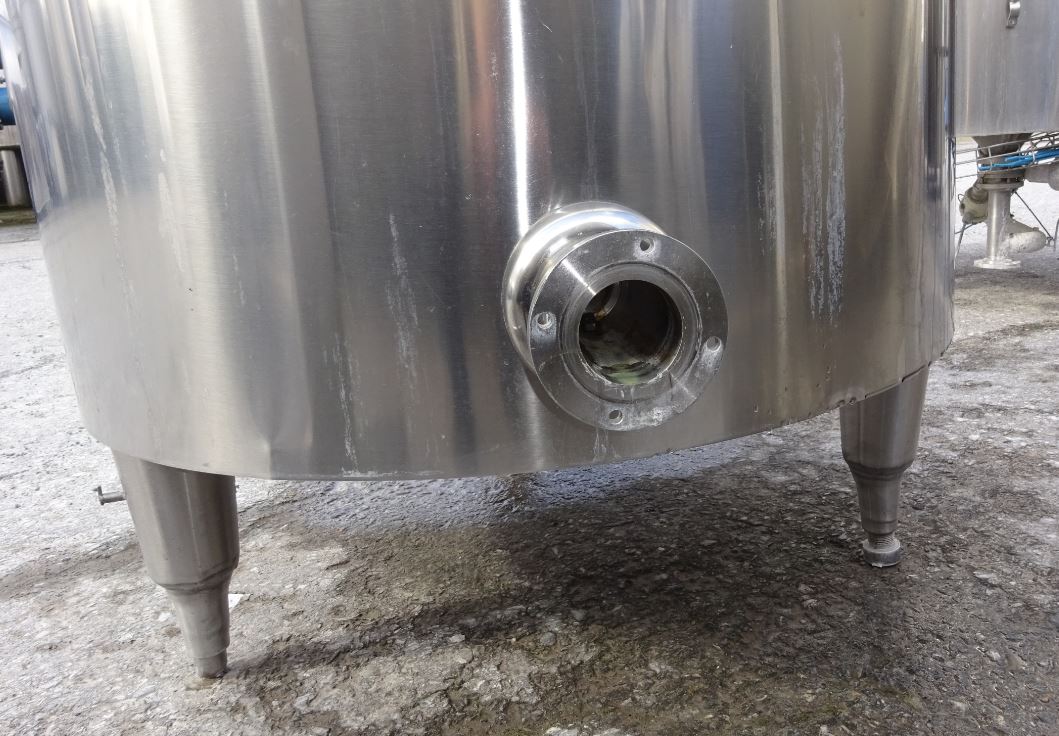

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

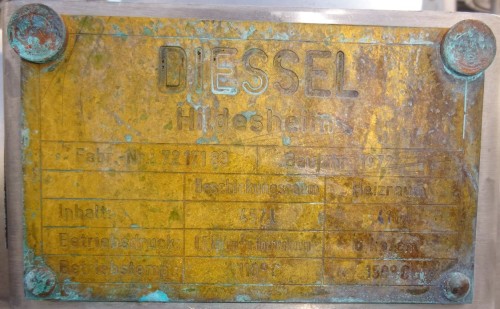

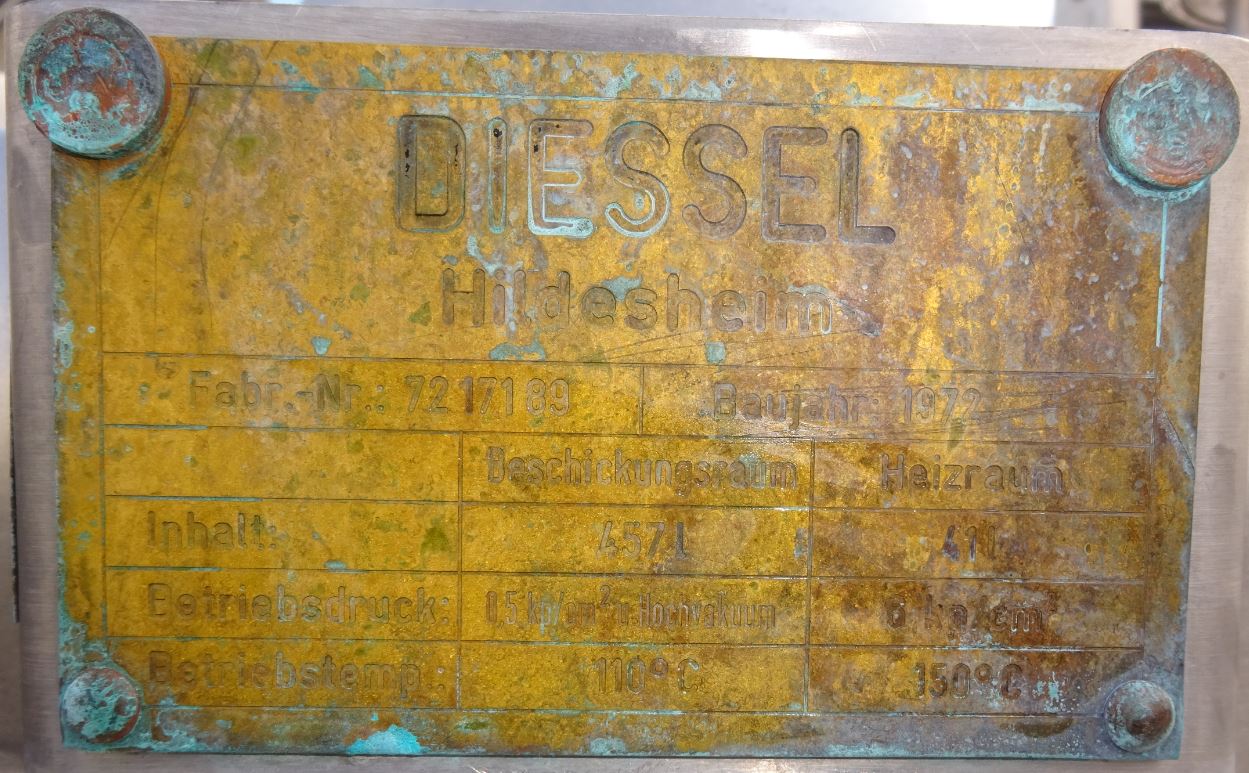

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Process tank, Boiling tank,

Agriculture: Storage tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Process tank, Cooling tank,
