Product no. M-2292

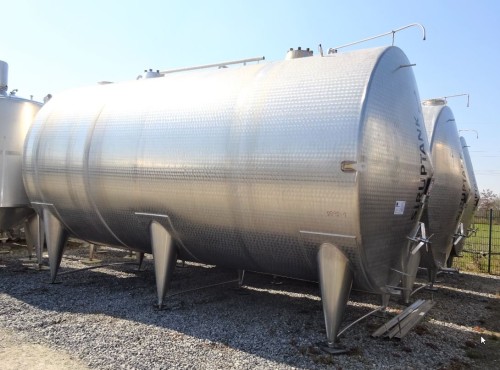

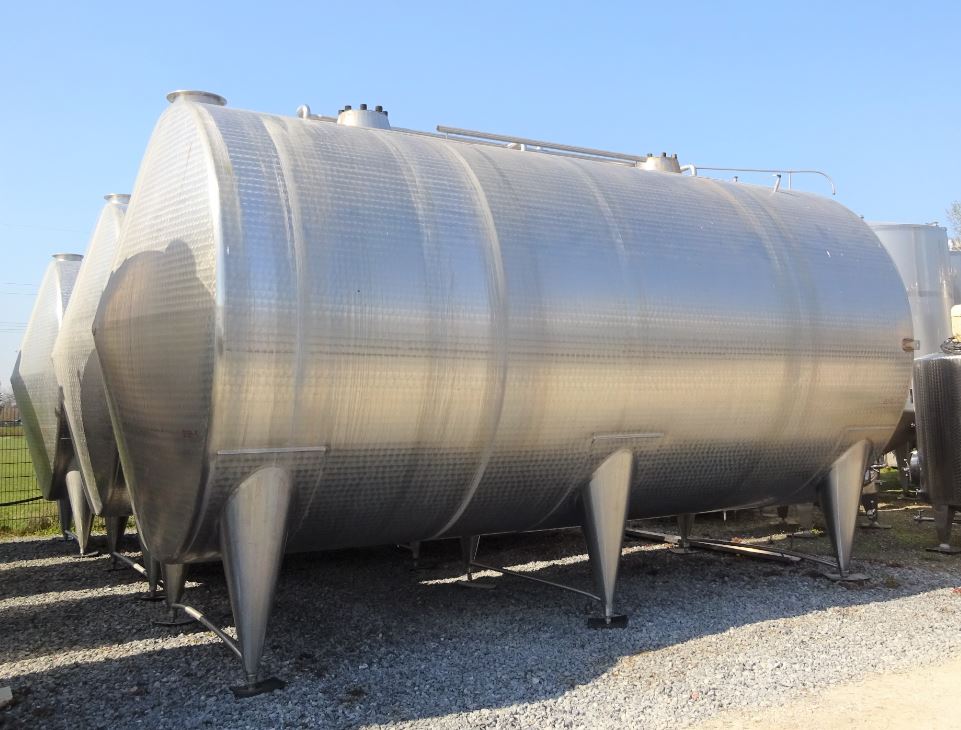

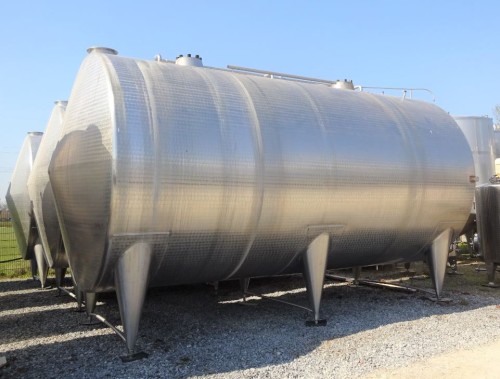

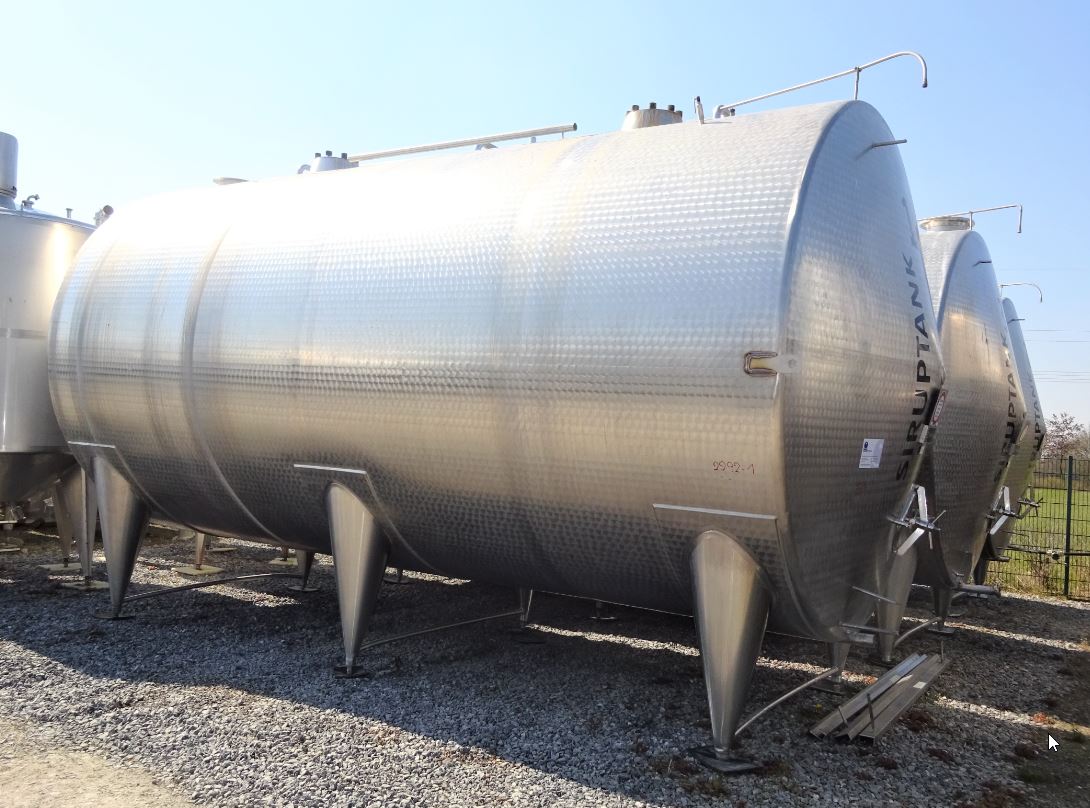

Container 40.000 liters made of V2A single-walled, horizontal
EUR 18.000,00
add. 19 % VAT excl. shipping costs
Volume approx. 40,000.00 litres
Product description
Container 40.000 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 40,000.00 litres. Container 40.000 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
40.000,00 litres
Structure
Horizontal
Condition
Used
Dimensions approx.
External diameter
3.000 mm
Cyl. length
5.700 mm
Foot height
600 mm
Total height
4.500 mm
Total length
6.300 mm
Design
Weight approx.
3.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no

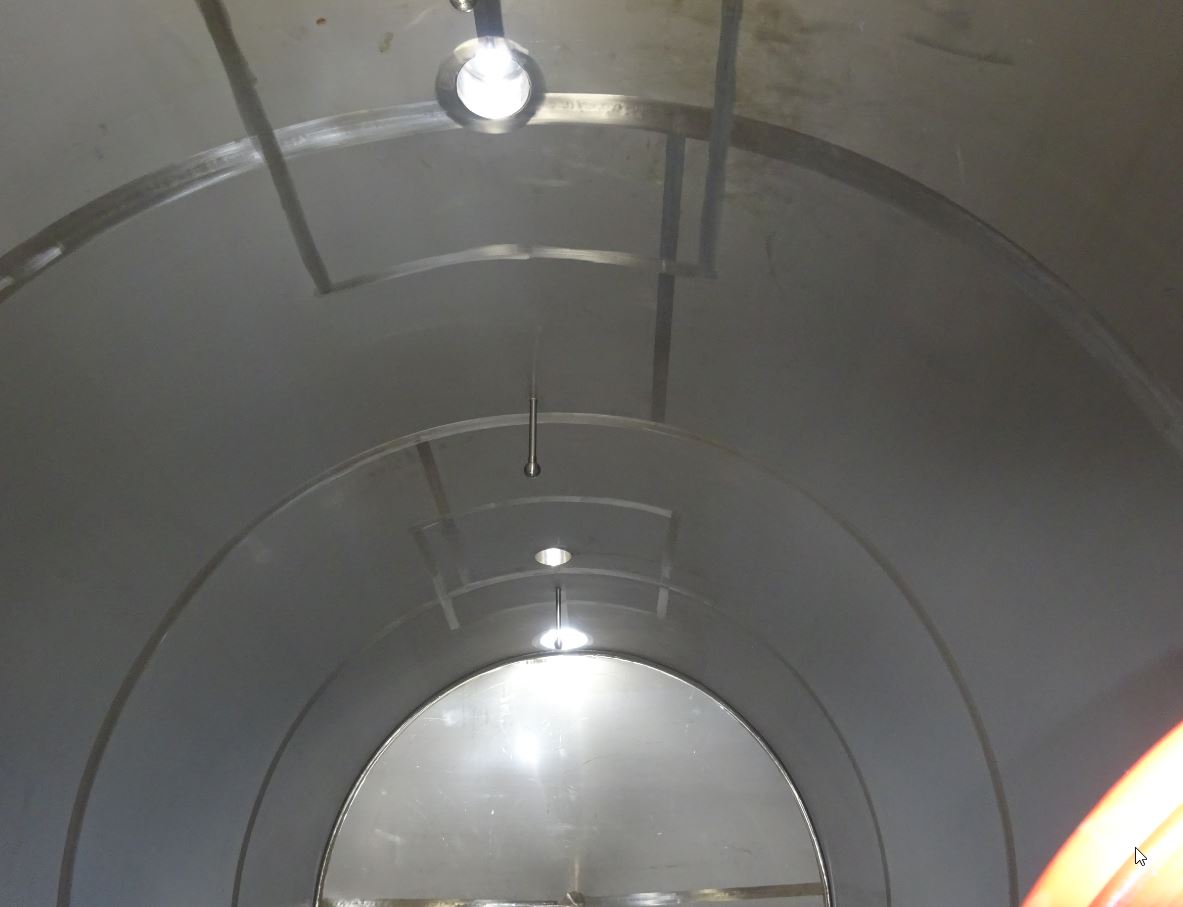

Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Agitator
Agitator quantity
2 (piece)

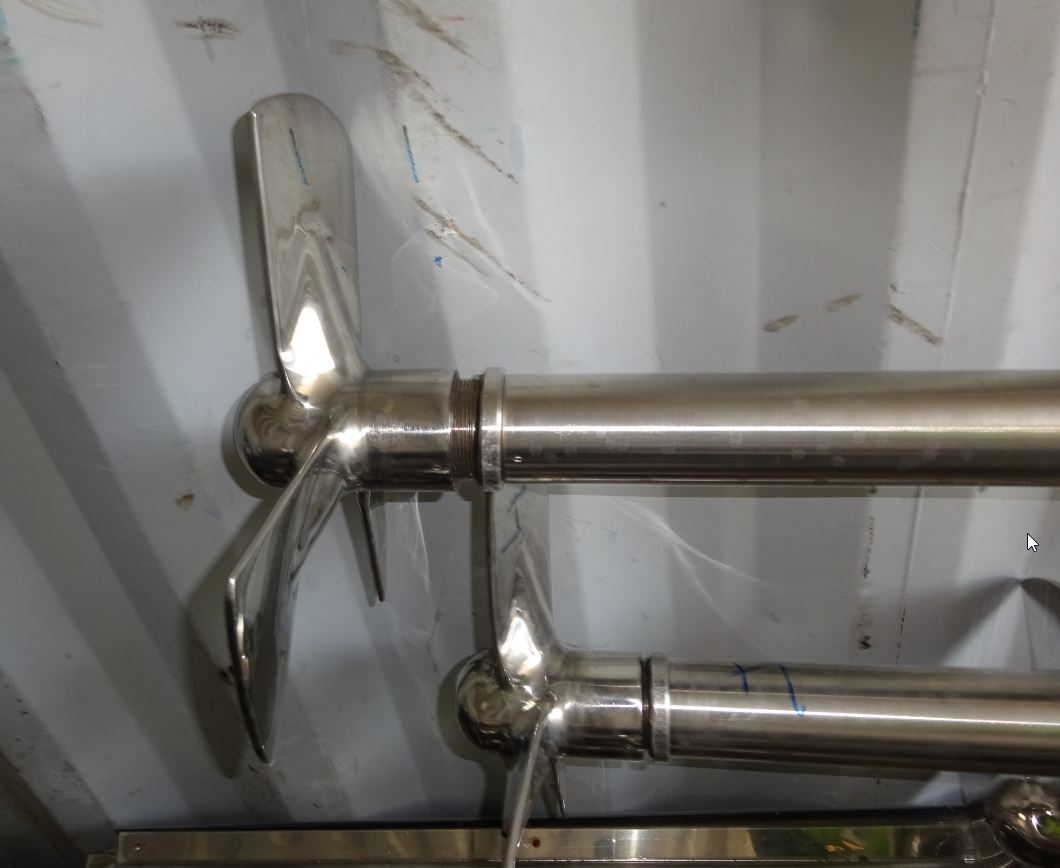

Agitator type
Propeller
Agitator position
Head off-centre

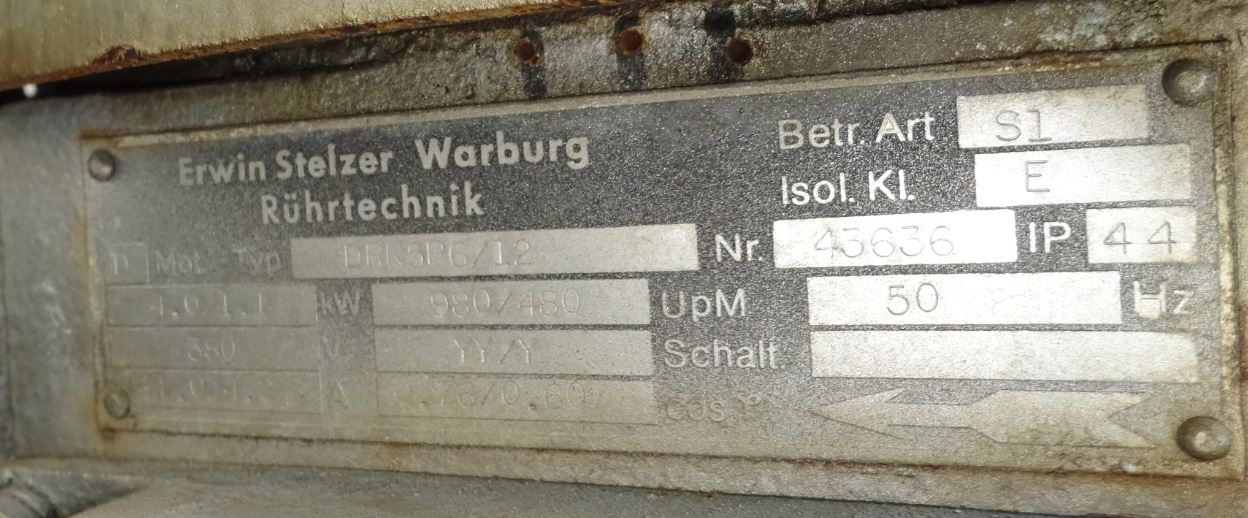

Agitator manufacturer
Stelzer

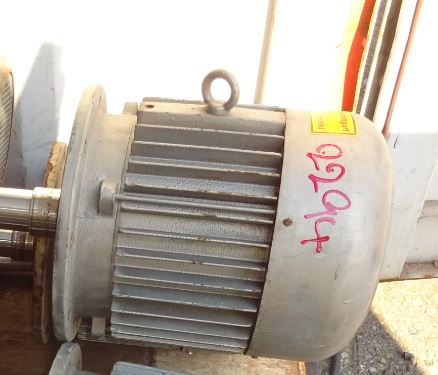

Agitator 1 - Output
4 / 1,1 kW
Agitator 1 - RPM
980 / 480 UpM
Agitator 1 - Voltage
380 V
Agitator 2 - Manufacturer
Stelzer
Agitator 2 - Output
4 / 1,1 kW
Agitator 2 - RPM
980 / 480 UpM
Agitator 2 - Voltage
380 V
Supports
Supports

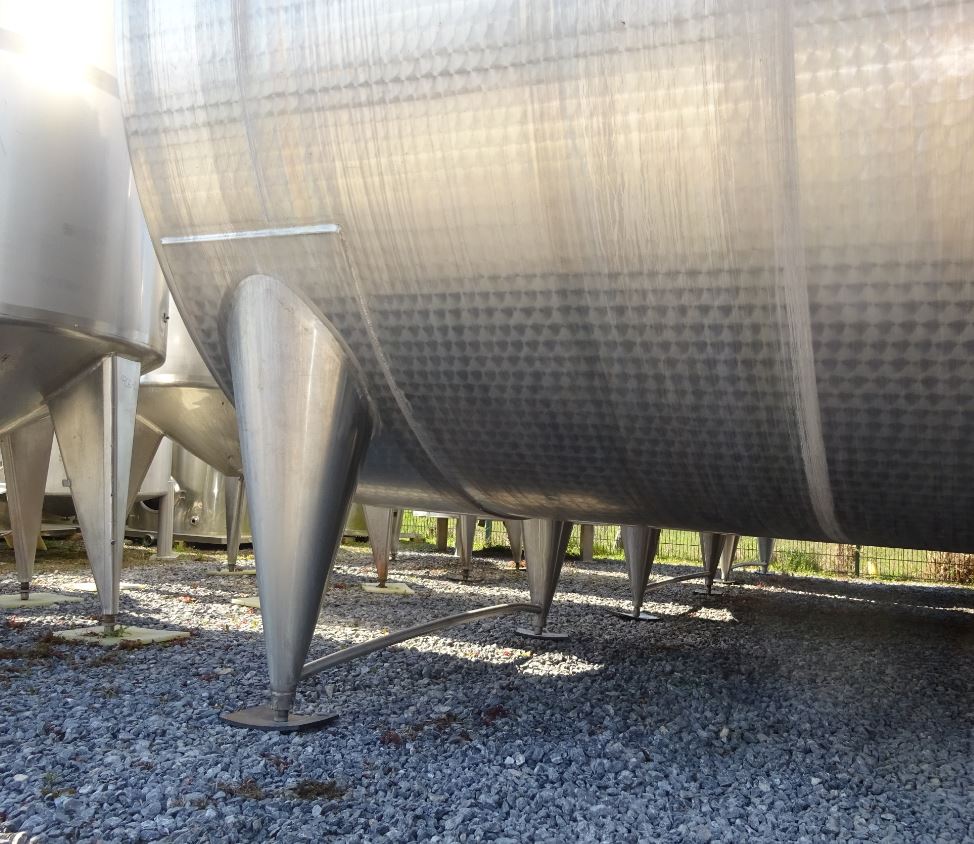

Stainless steel feet
Number of feet
6 (piece)
Fixtures and fittings

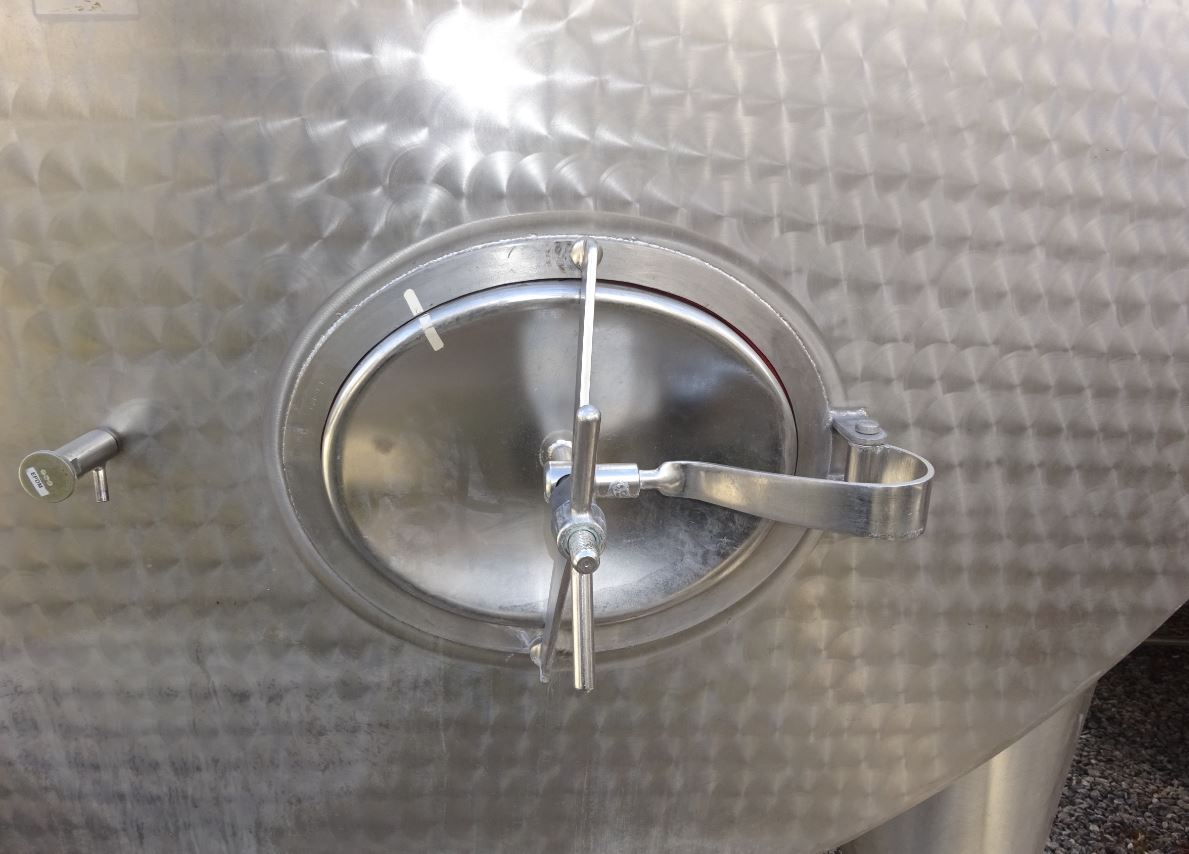

Manway position
Front face

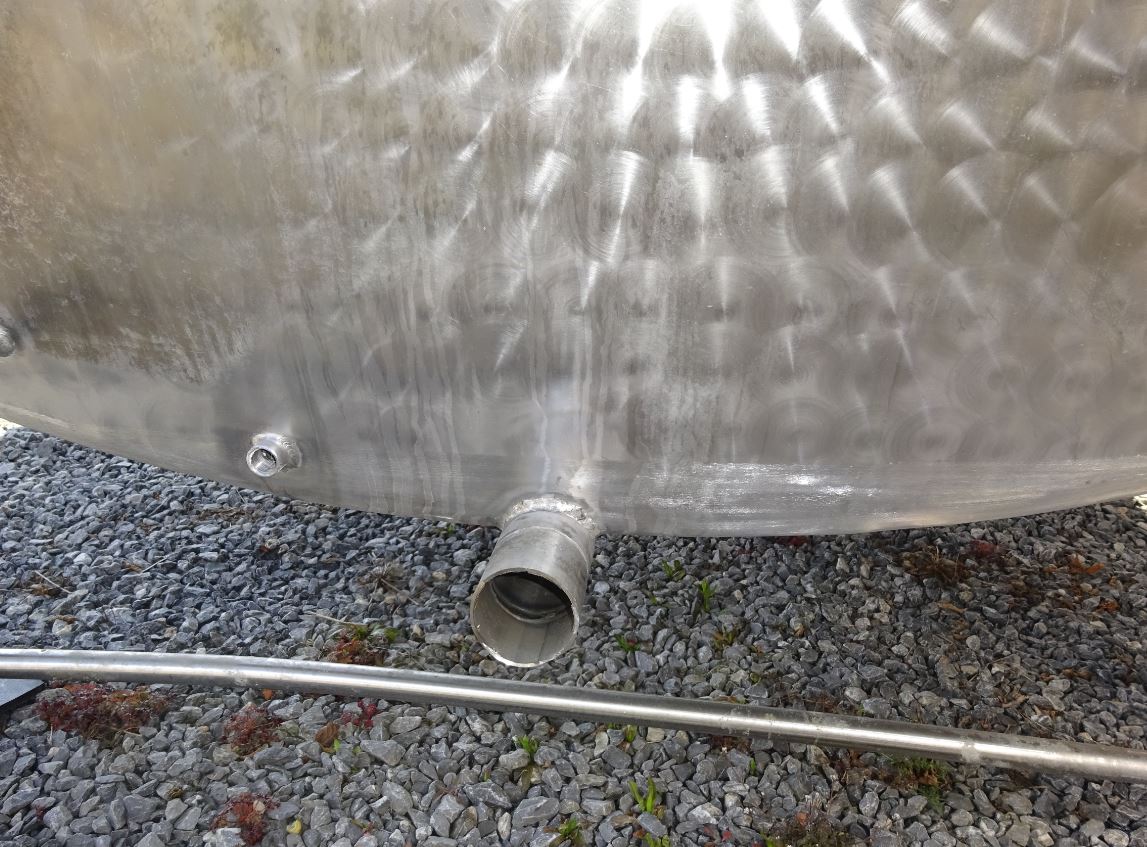

Outlet nozzle
65
Cleaning/CIP nozzle
in head
Fixtures and fittings

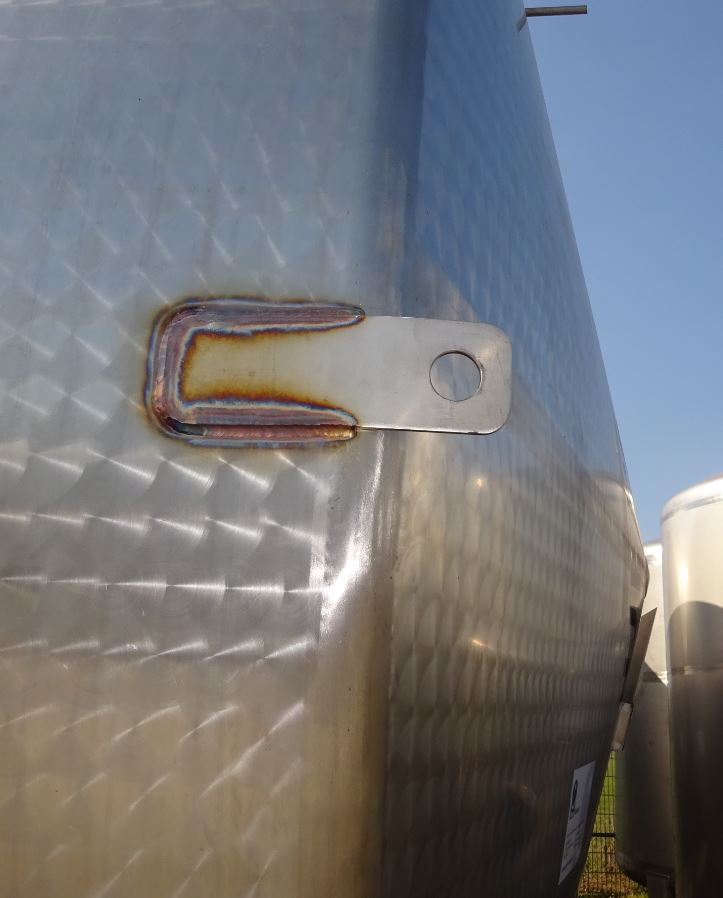

Lifting lugs

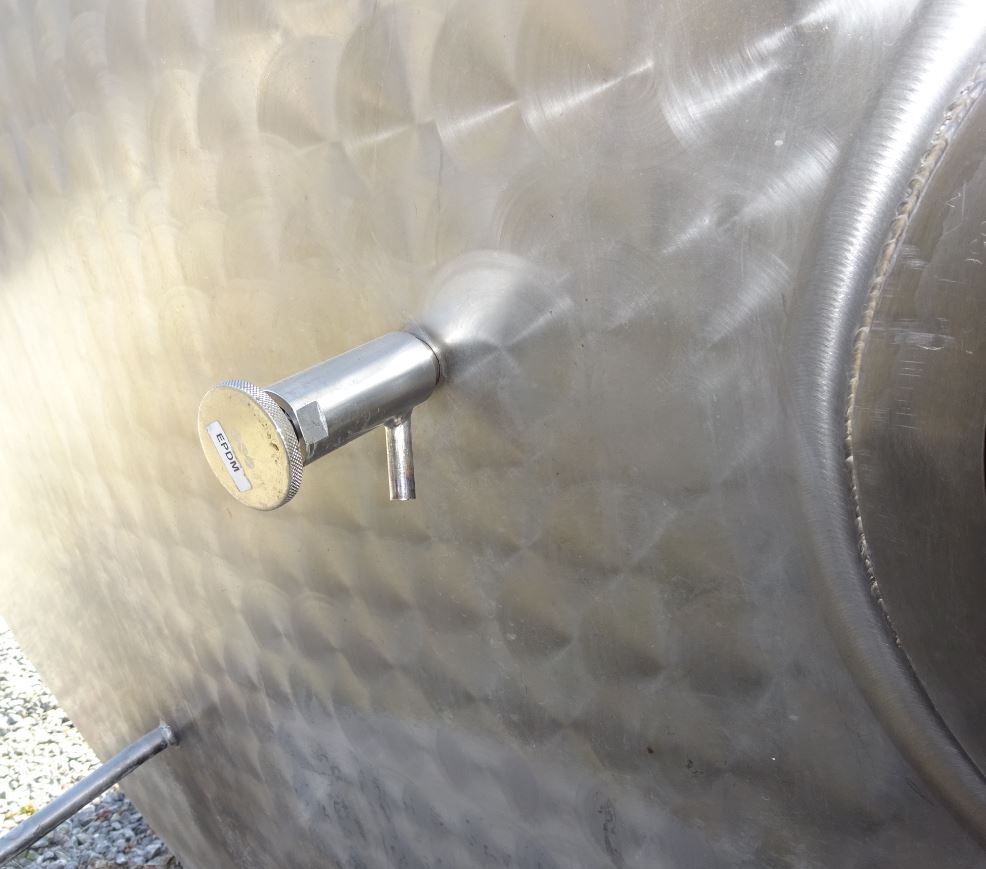

Sample taking
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Milk tank, Storage tank, Mixing tank,
Agriculture: Storage tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Mixing tank,
