Product no. M-2284
Container 20.000 liters made of V2A single-walled, standing
EUR 11.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 20,000.00 litres
Product description

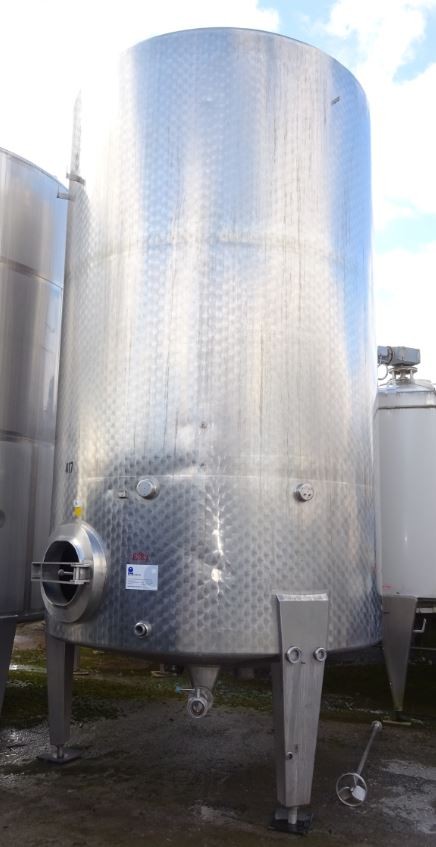

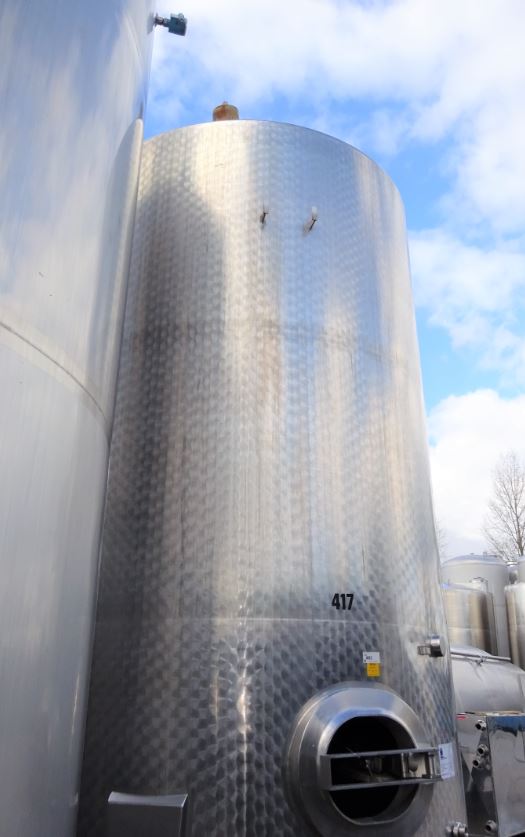

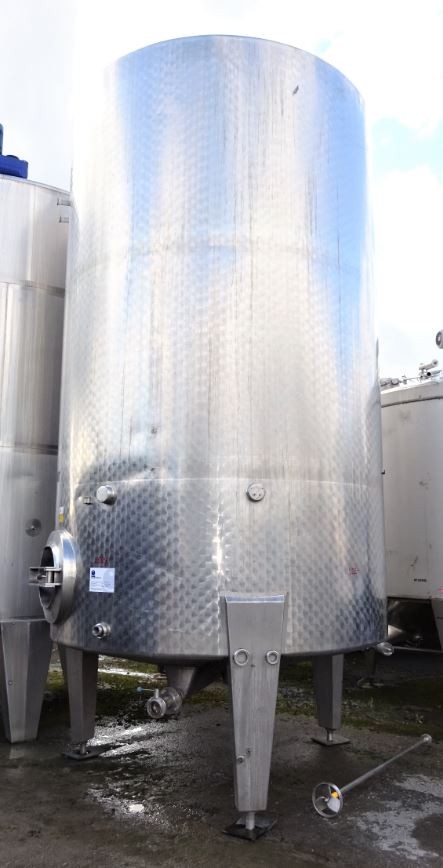

Container 20.000 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres. Container 20.000 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
20.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
2.500 mm
Cyl. height
4.000 mm
Foot height
990 mm
Total height
5.700 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes

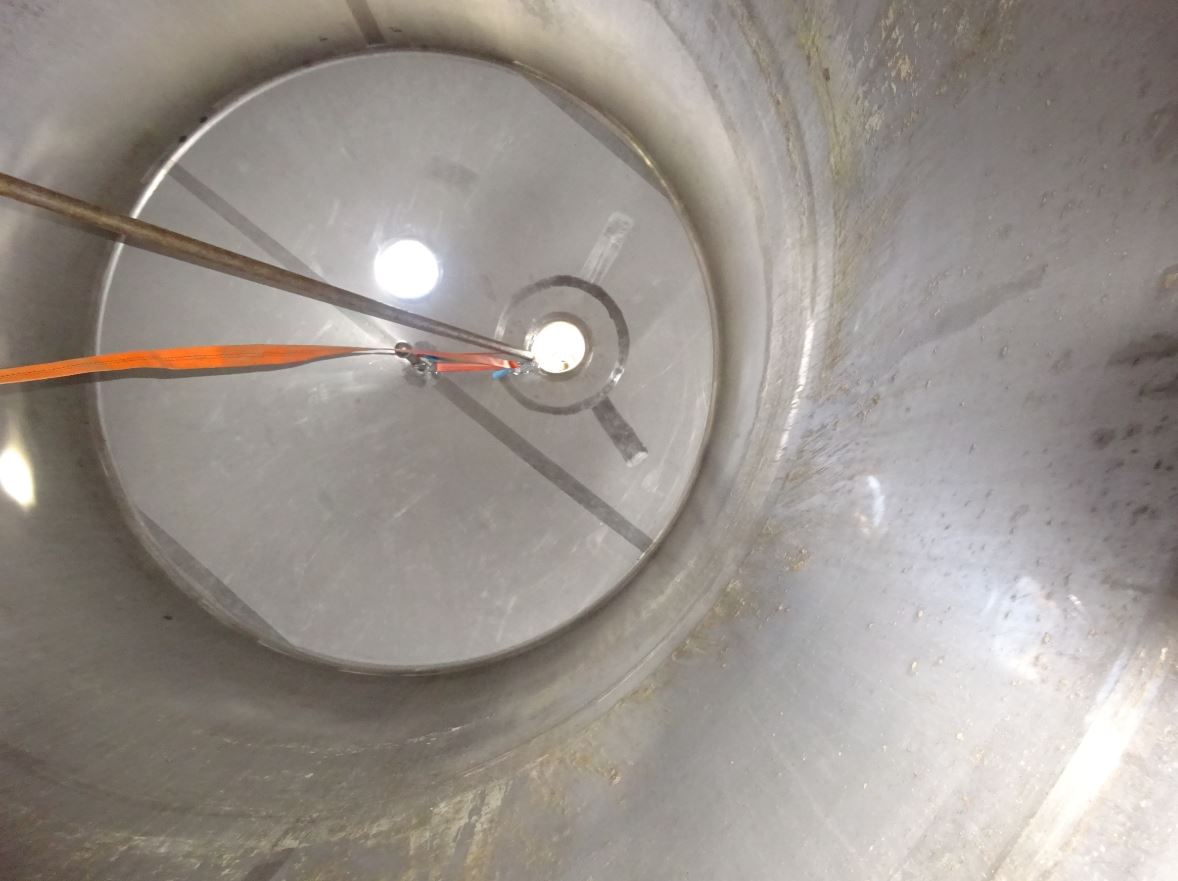

Interior surface
Smoothed
Exterior surface
Marbled

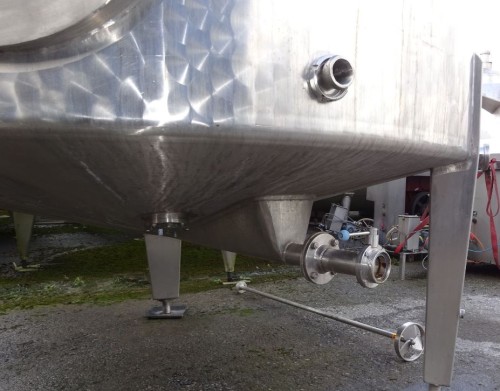

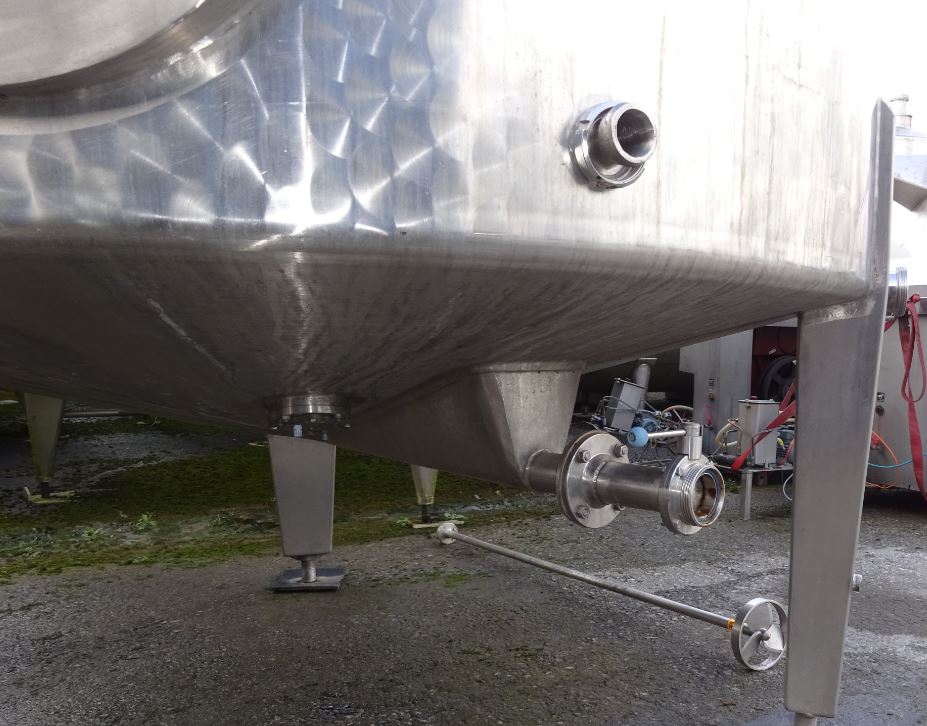

Floor type
Conical bottom
Head design
Conical bottom
Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
Head off-centre
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Fixtures and fittings

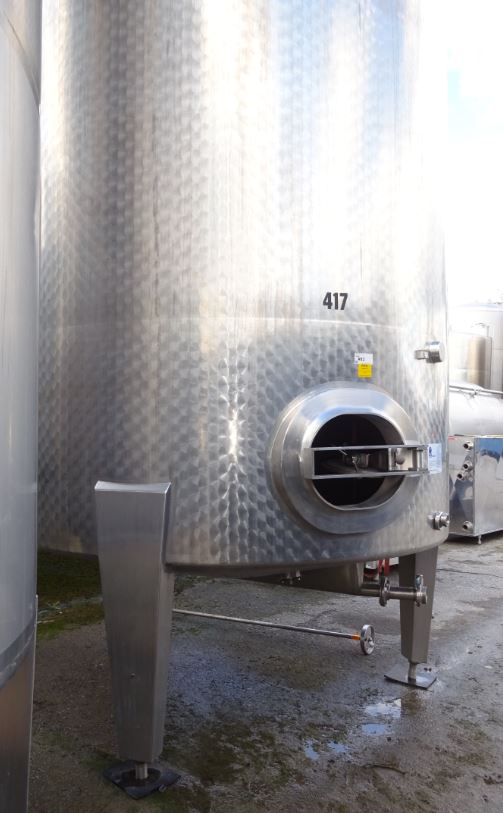

Manway position
In shell
Nozzles/connectors in shell
1xDN50 (piece)
Cleaning/CIP nozzle
in head
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Storage tank, Mixing tank, CIP tank,
Agriculture: Storage tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Mixing tank, CIP tank,
