Product no. M-2365

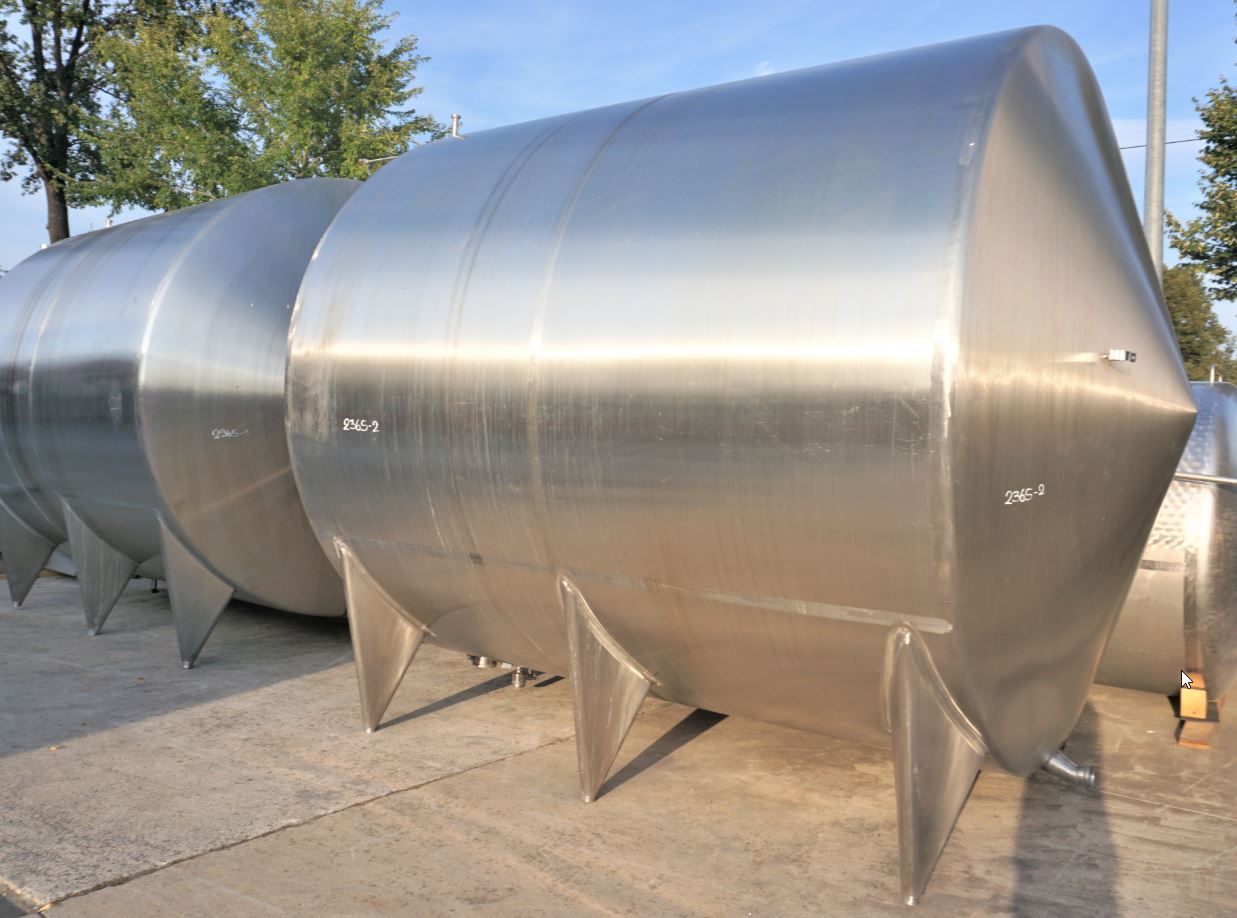

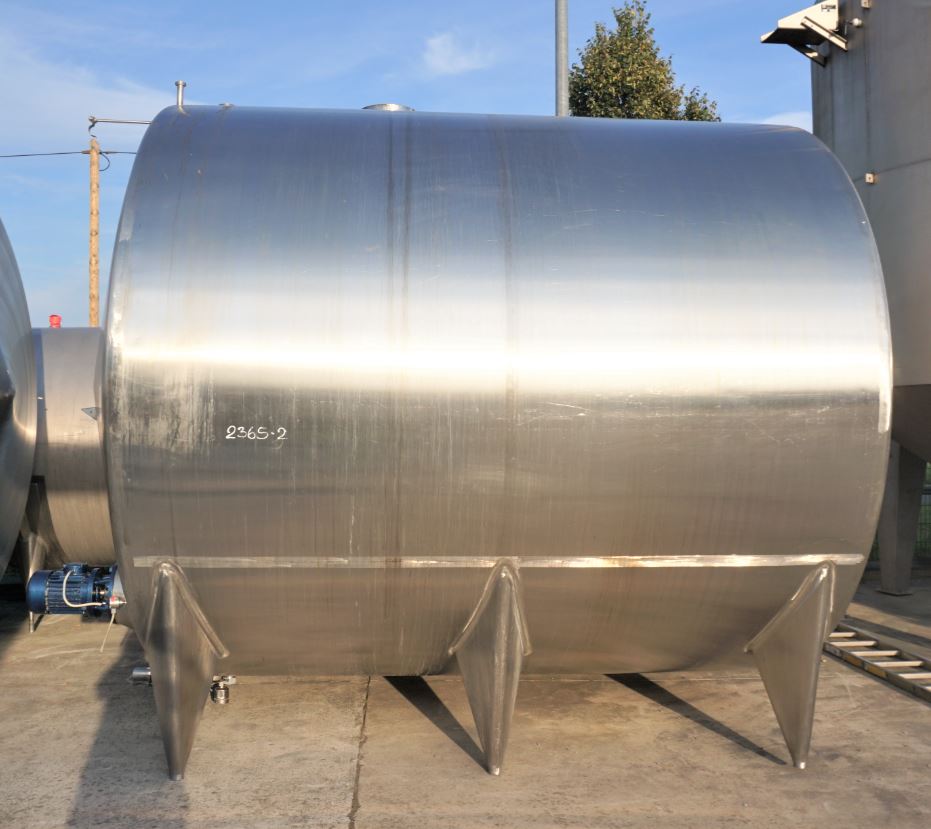

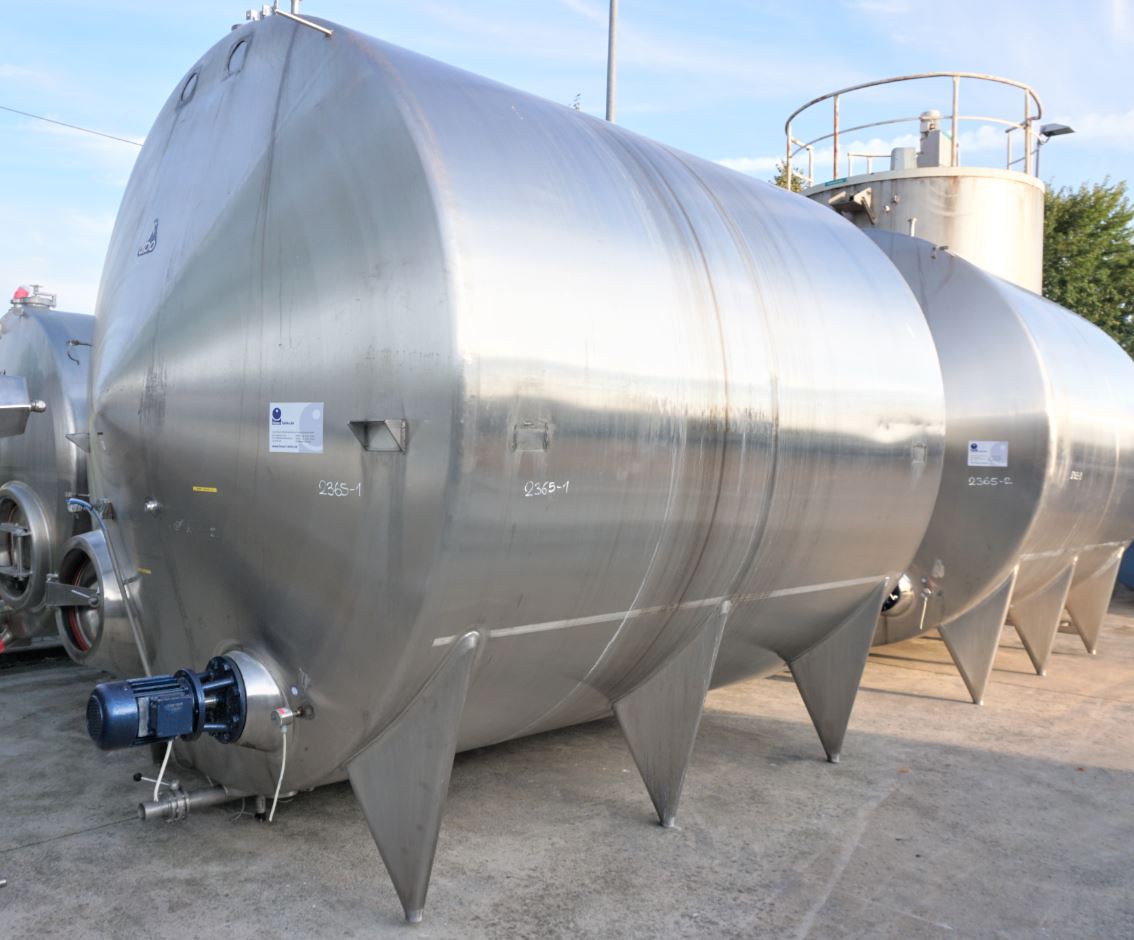

Container 20.000 liters made of V2A, horizontal

EUR 12.000,00

add. 19 % VAT excl. shipping costs


Volume approx. 20,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 20.000 liters made of V2A consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres.  Container 20.000 liters made of V2A was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 20.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.900 mm

  • Cyl. length

  • 3.050 mm

  • Outlet height

  • 270 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

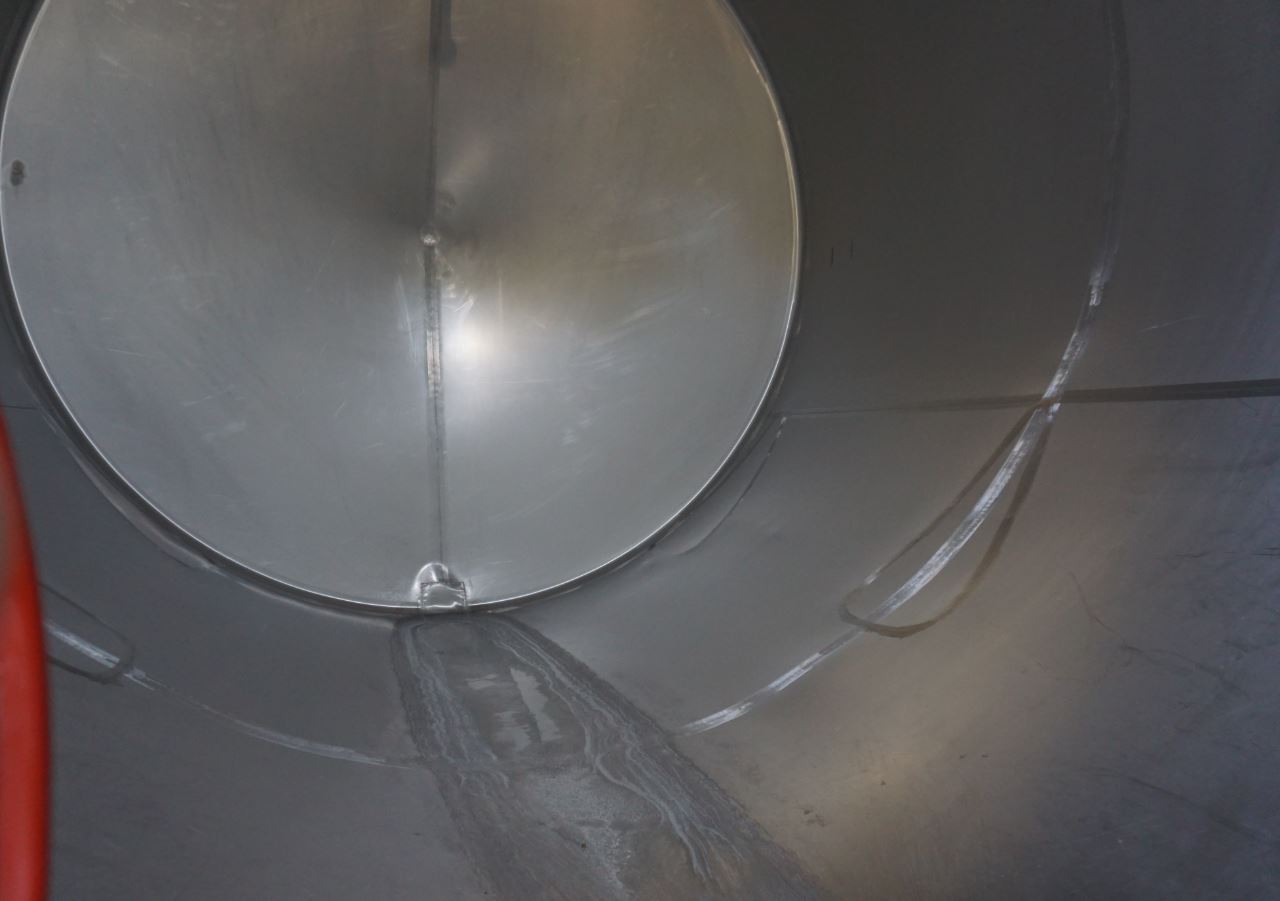

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

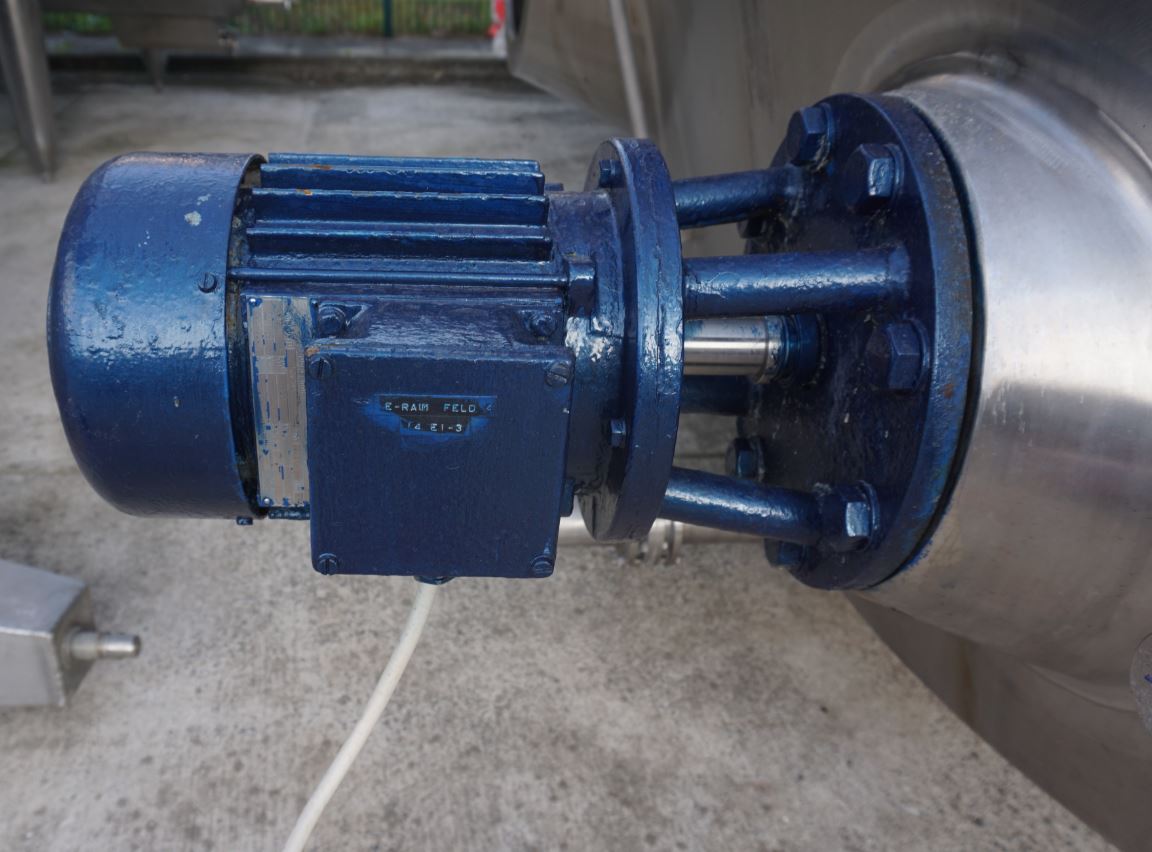

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Front face

  • Agitator manufacturer

  • Stelzer

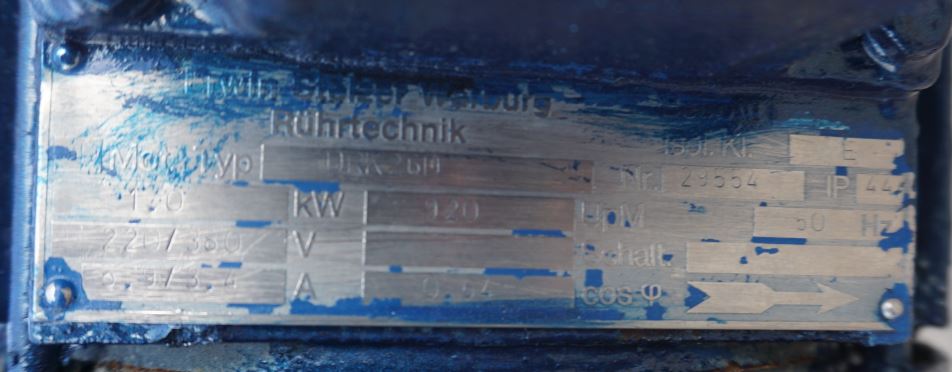

  • Agitator 1 - Output

  • 1 kW

  • Agitator 1 - RPM

  • 920 UpM

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

Fixtures and fittings

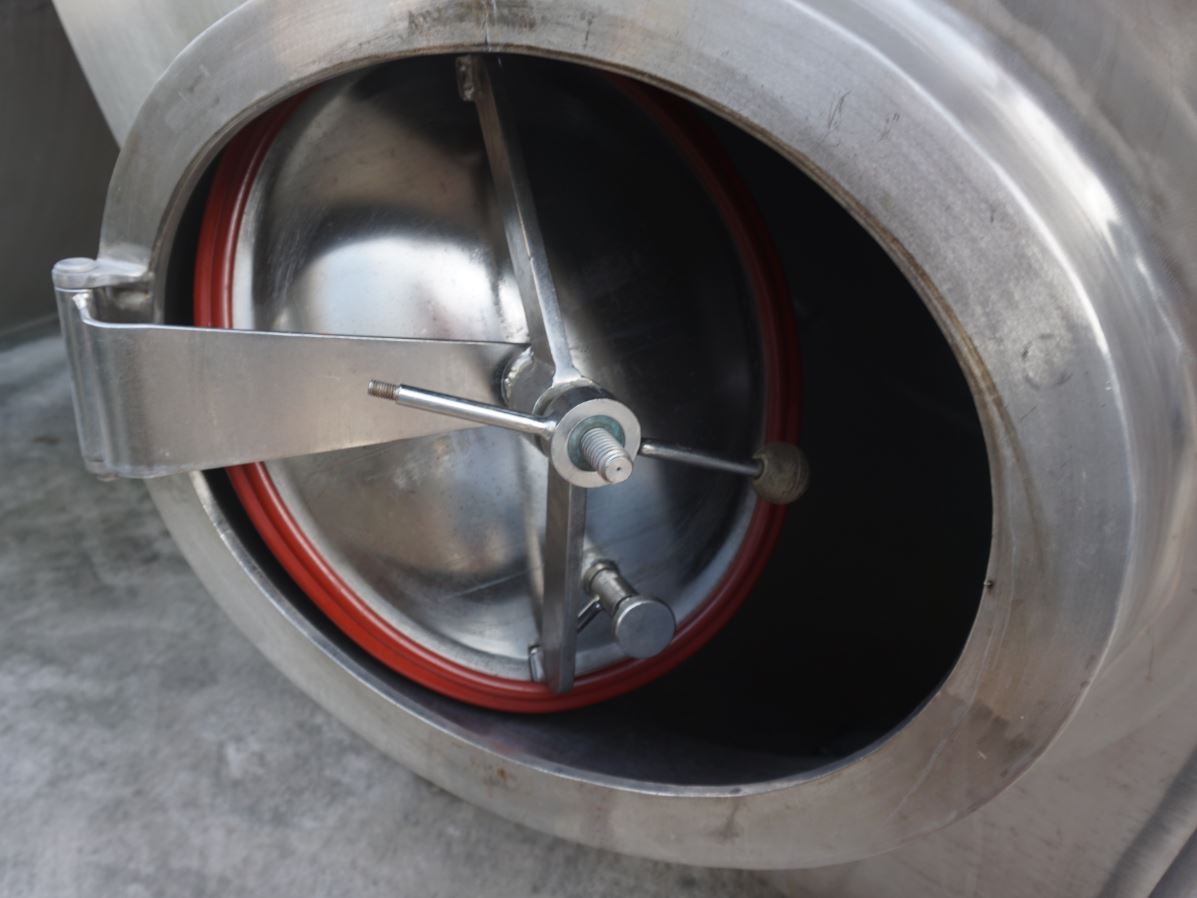

  • Manway position

  • Front face

  • Nozzles/connectors in head

  • 1xDN80 (piece)

  • Outlet nozzle

  • 65

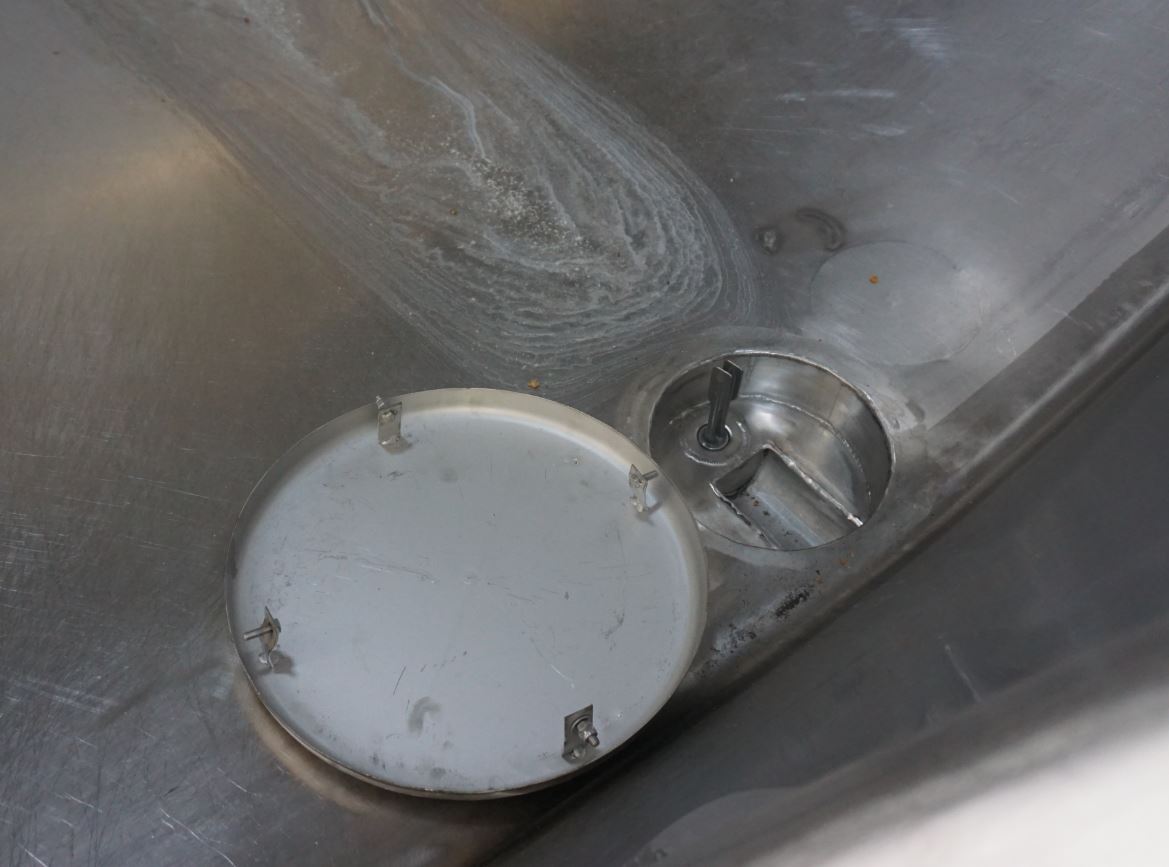

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Mixing tank,

Agriculture: Storage tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Mixing tank,
