Product no. M-2369

Container 10.000 liters made of V2A, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres.  Container 10.000 liters made of V2A was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.900 mm

  • Cyl. height

  • 3.500 mm

  • Foot height

  • 800 mm

  • Total height

  • 4.800 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

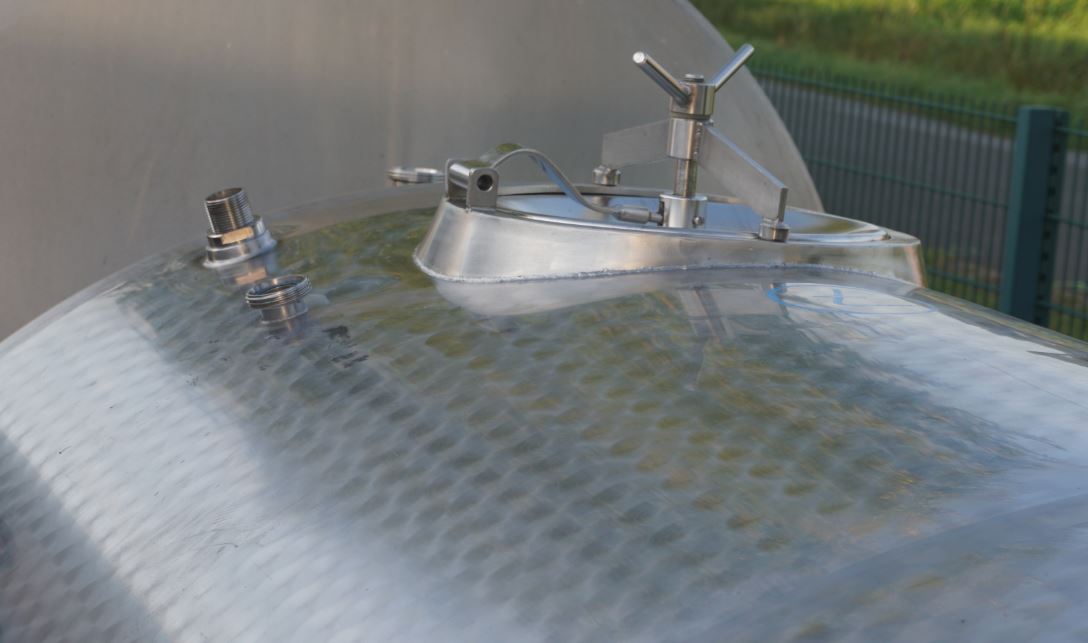

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN40 1xDN27 (piece)

  • Nozzles/connectors in head

  • 2xDN50 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Ladder stay

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Storage tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank,

Chemistry and pharmaceuticals : Storage tank,
