Product no. M-2367

Container 10.000 liters made of V2A, horizontal

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

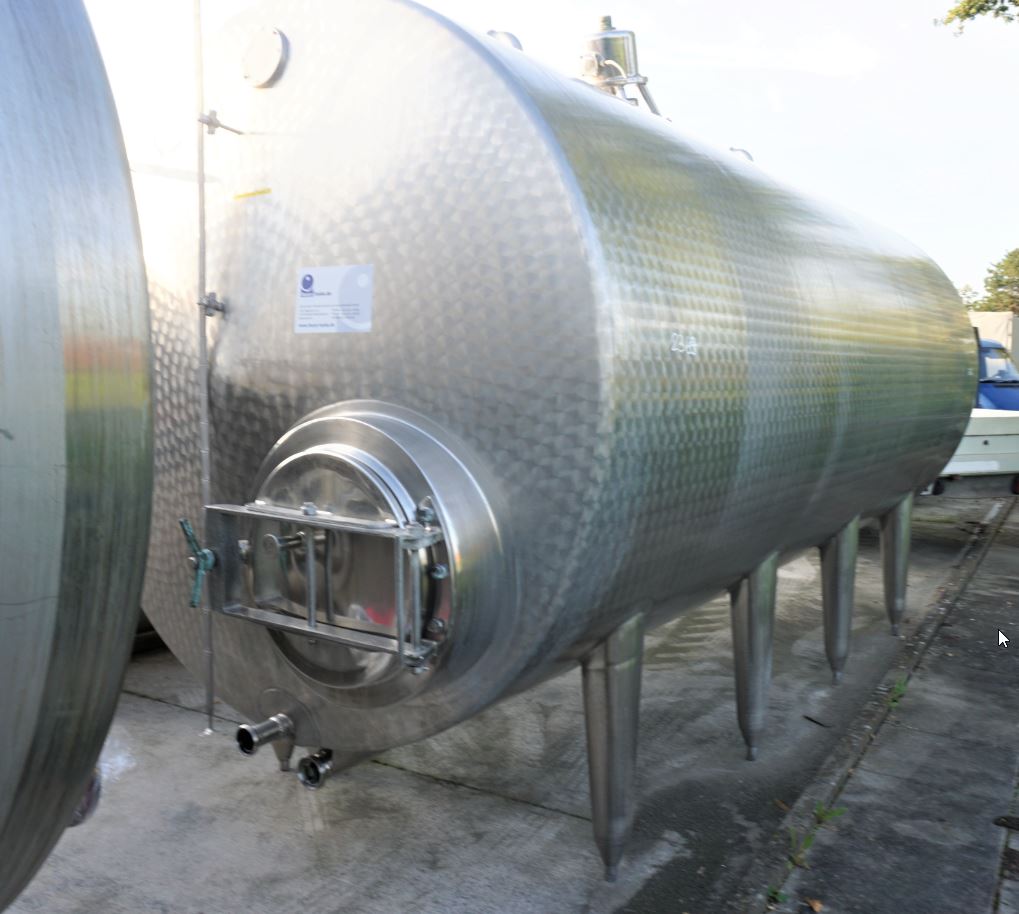

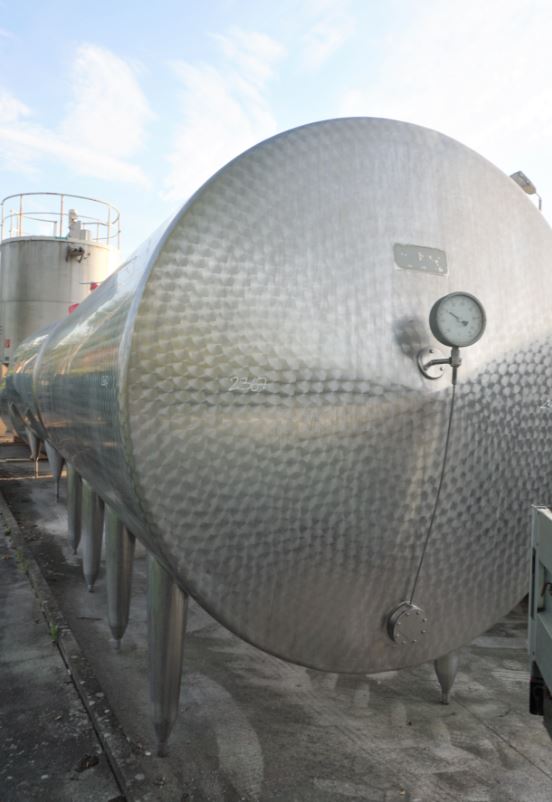

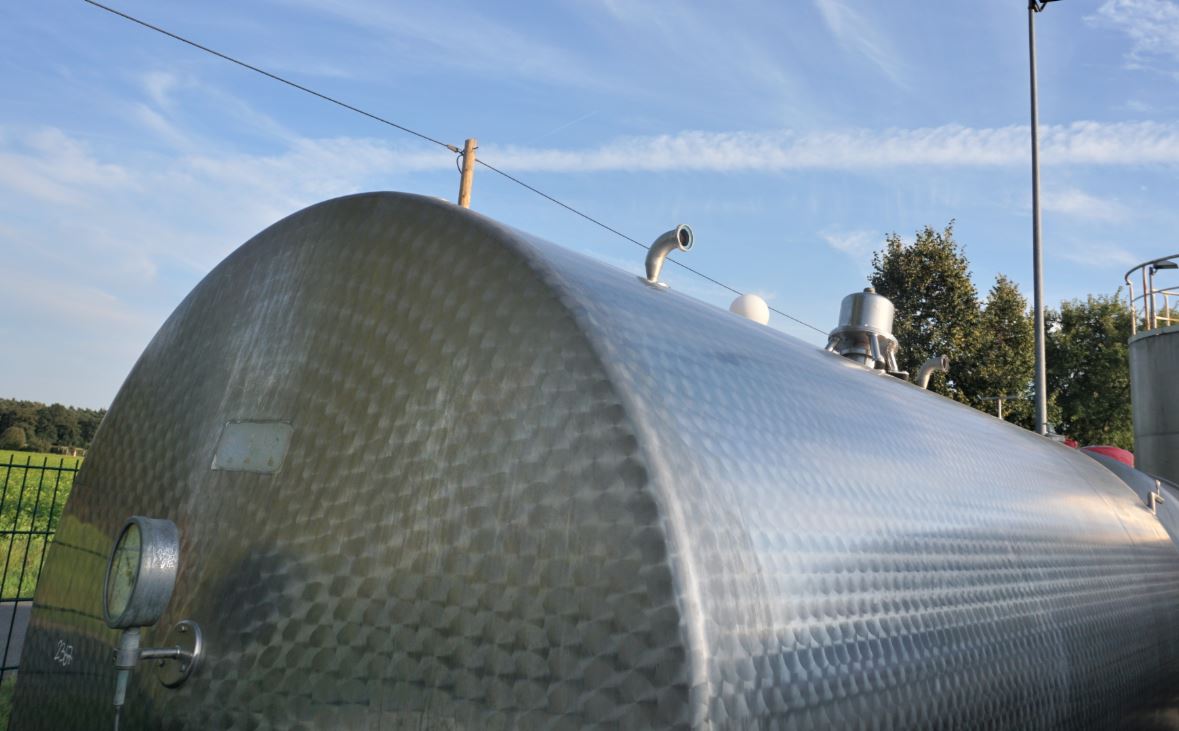

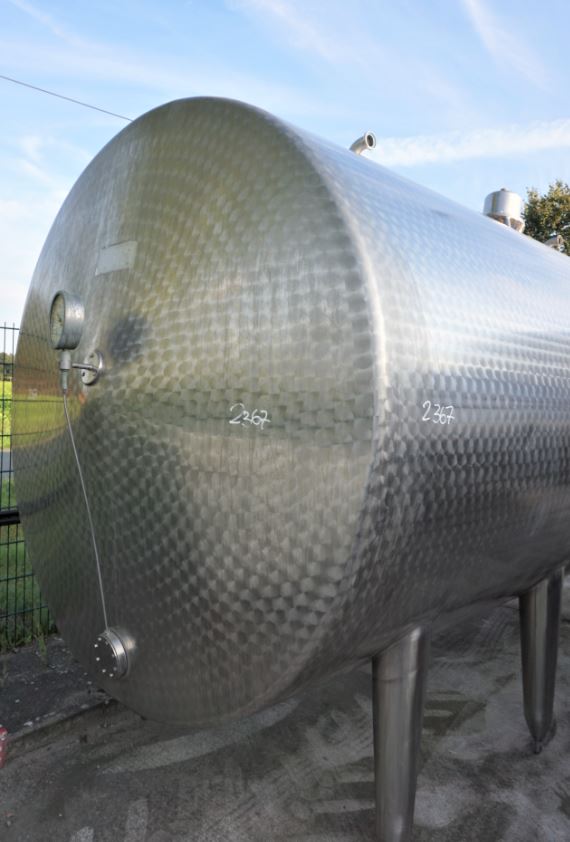

Container 10.000 liters made of V2A consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 1,900 mm.  Container 10.000 liters made of V2A was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.900 mm

  • Cyl. length

  • 4.000 mm

  • Foot height

  • 500 mm

  • Total height

  • 2.800 mm

  • Total length

  • 4.600 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

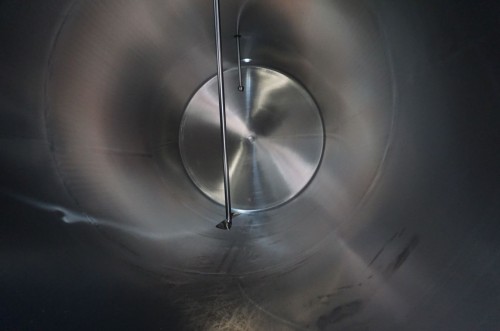

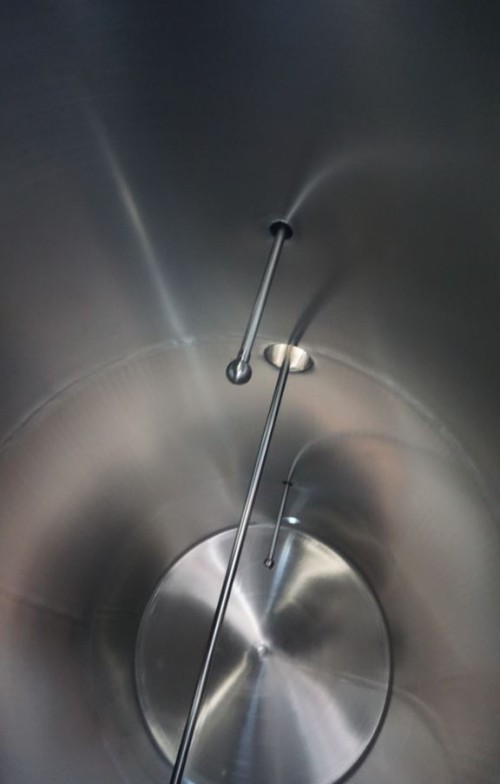

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 8 (piece)

Fixtures and fittings

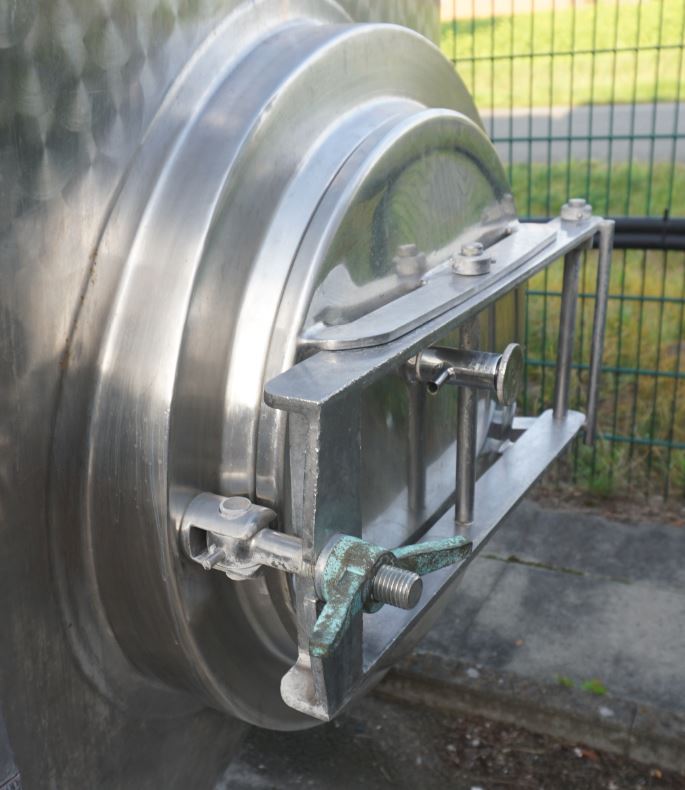

  • Manway position

  • Front face

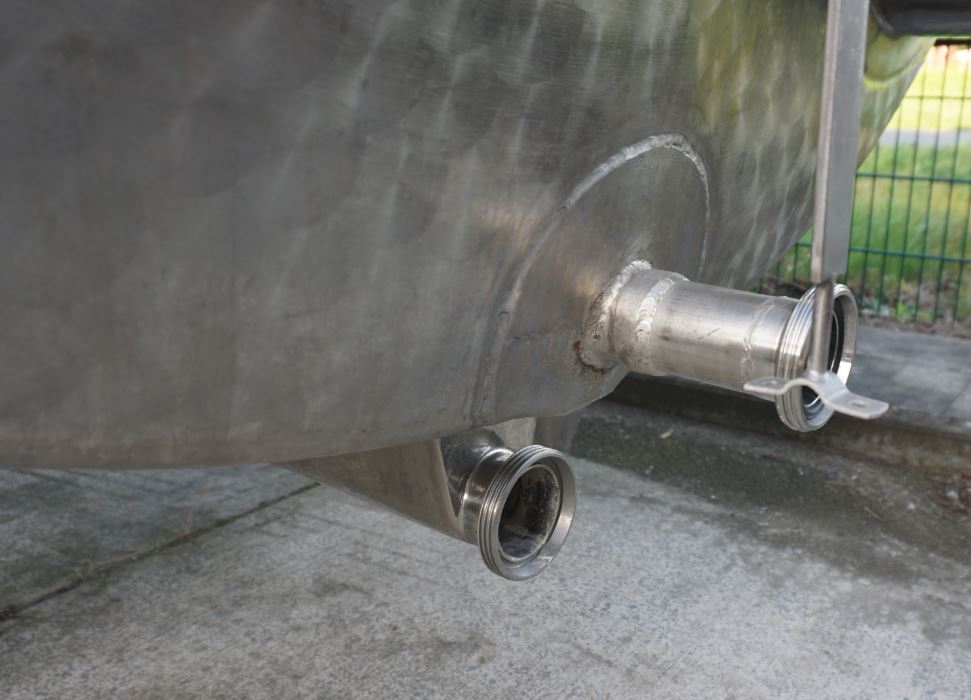

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Sample taking

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank,
