Product no. M-2389

Container 1.355 liters made of V2A temperature-controllable, isolated, standing

EUR 8.900,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,355.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

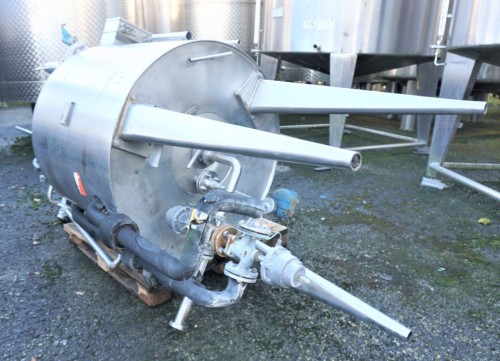

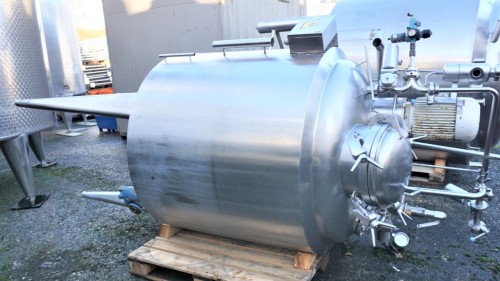

Container 1.355 liters made of V2A temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,355.00 litres. The diameter inside includes 1,140 mm.  Container 1.355 liters made of V2A temperature-controllable, isolated was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Tempering, Mixing, Under/over-pressure, Processes,

General

  • Volume approx.

  • 1.355,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • Berents

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.140 mm

  • External diameter

  • 1.600 mm

  • Cyl. height

  • 1.150 mm

  • Foot height

  • 1.250 mm

  • Total height

  • 3.200 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

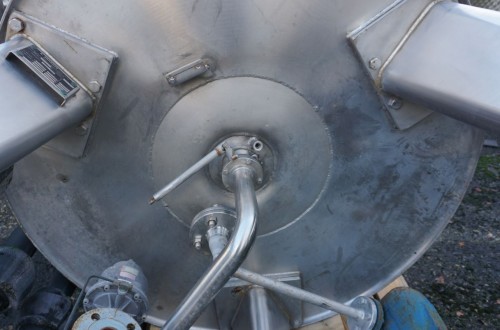

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 133 °C

  • Temperature control system operating pressure/pipe chamber

  • 4 bar

  • Temperature control system operating temperature/pipe chamber

  • 155 °C

  • Temperature control system/pipe chamber capacity

  • 60 litres

Agitator

  • Agitator quantity

  • 1 (piece)

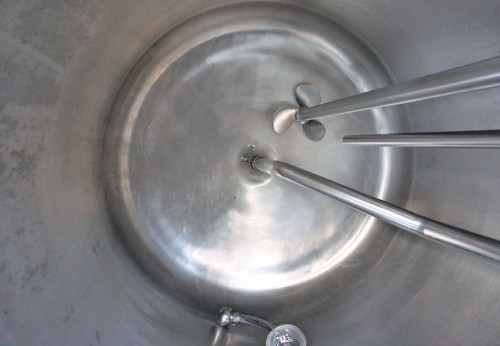

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

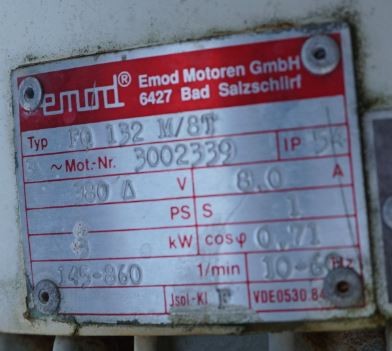

  • Agitator 1 - RPM

  • 145-860 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

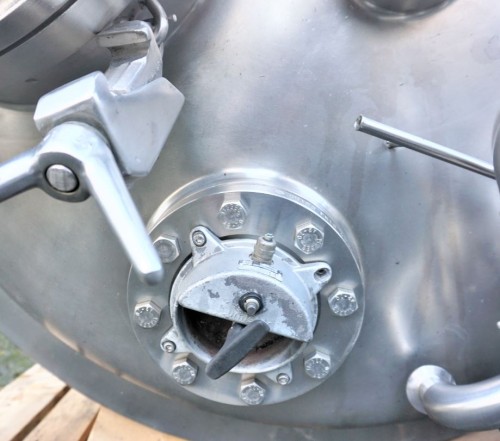

  • Manway position

  • In head

  • Nozzle connector

  • Screw thread

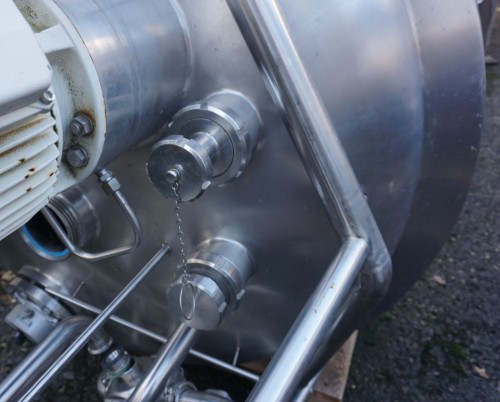

  • Nozzles/connectors in head

  • 2xDN80 1xDN100 (piece)

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

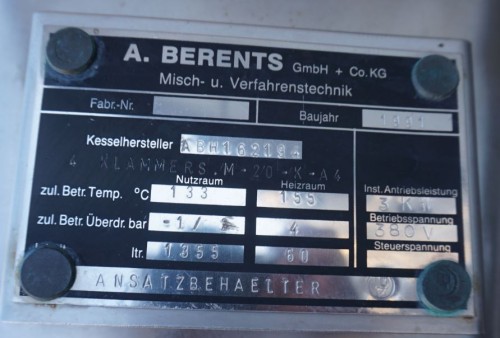

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Mixing tank, Pressure tank, Process tank, Anaerobic digestion tank, Reactor/reaction tank, Boiling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Pressure tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Pressure tank, Process tank, Reactor/reaction tank, Cooling tank,
